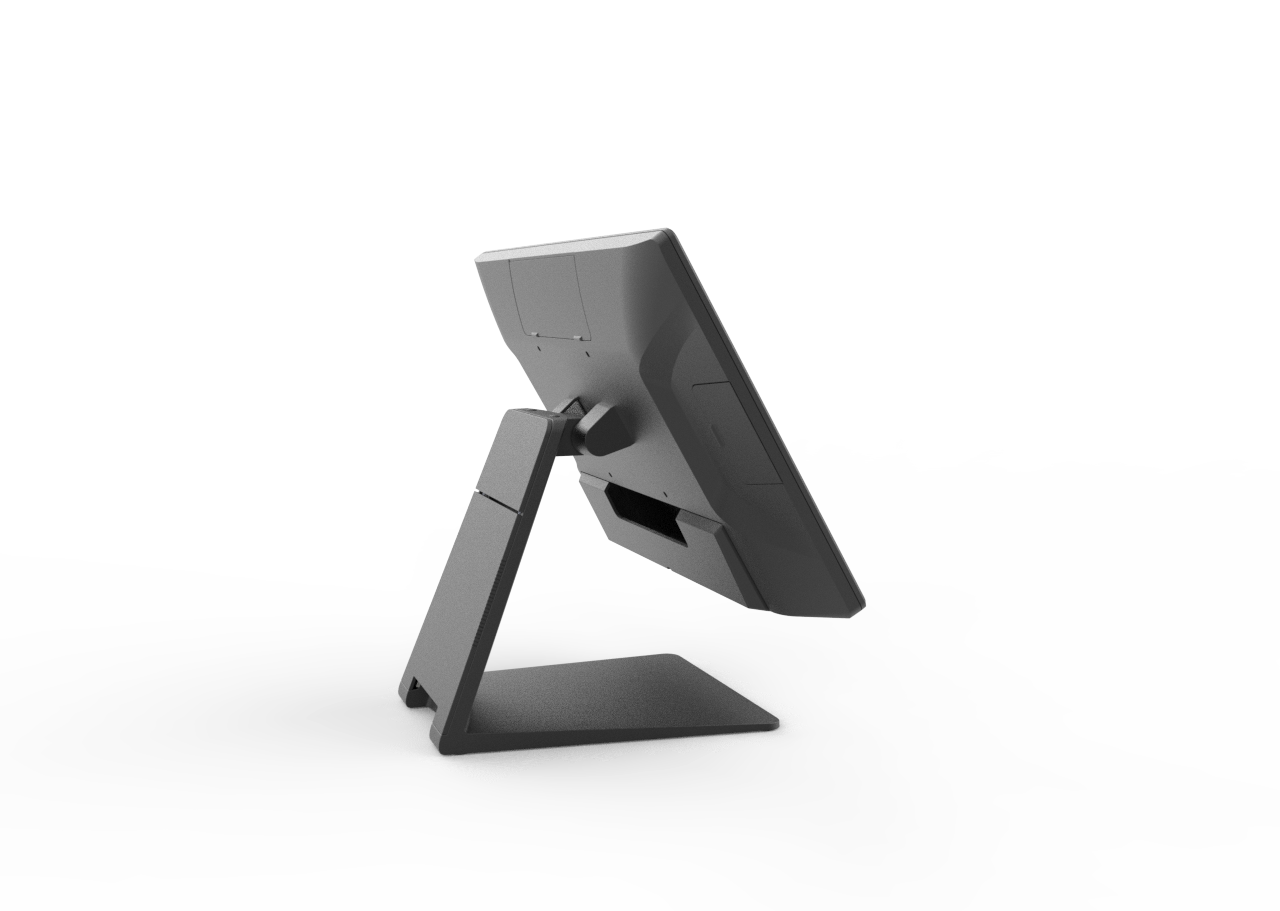

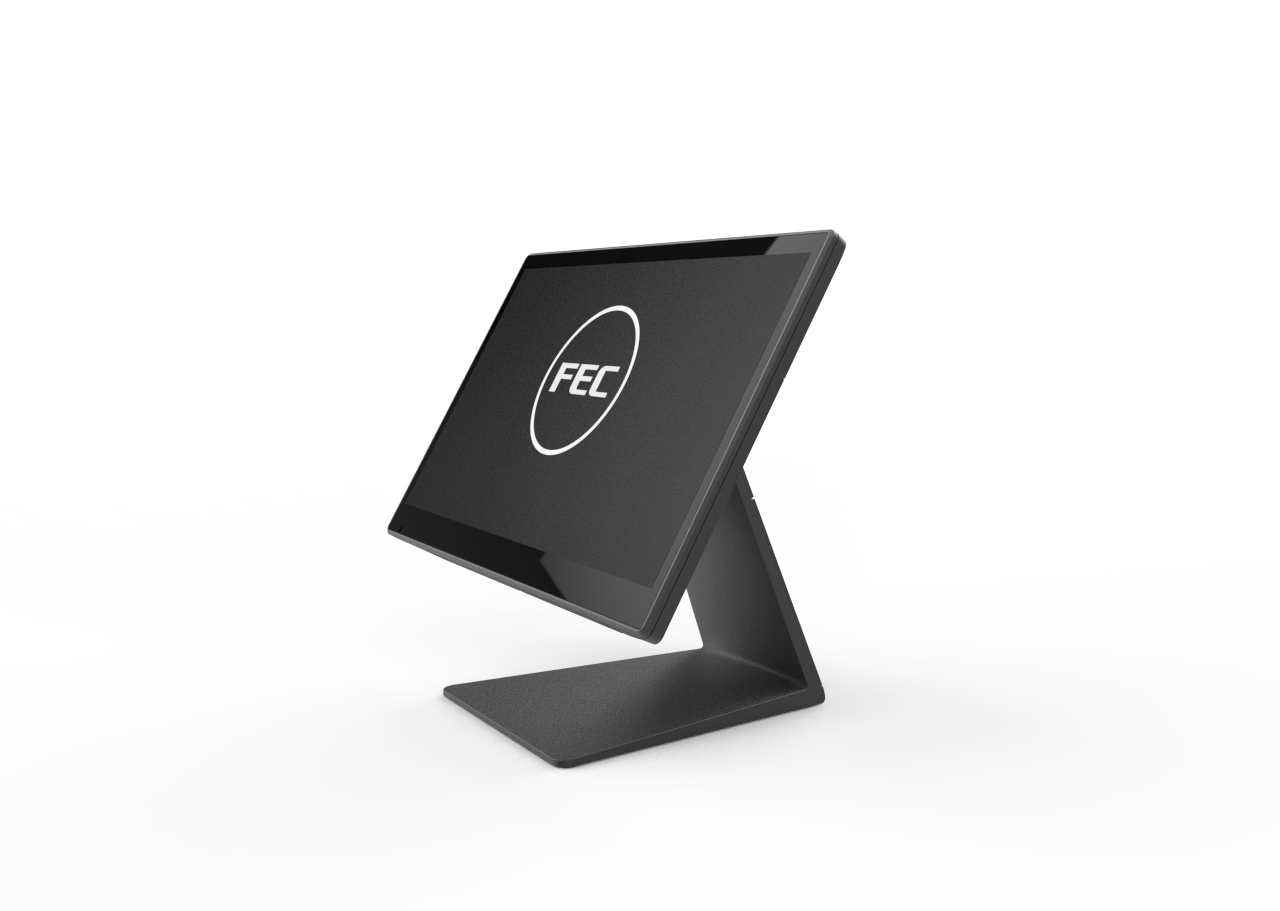

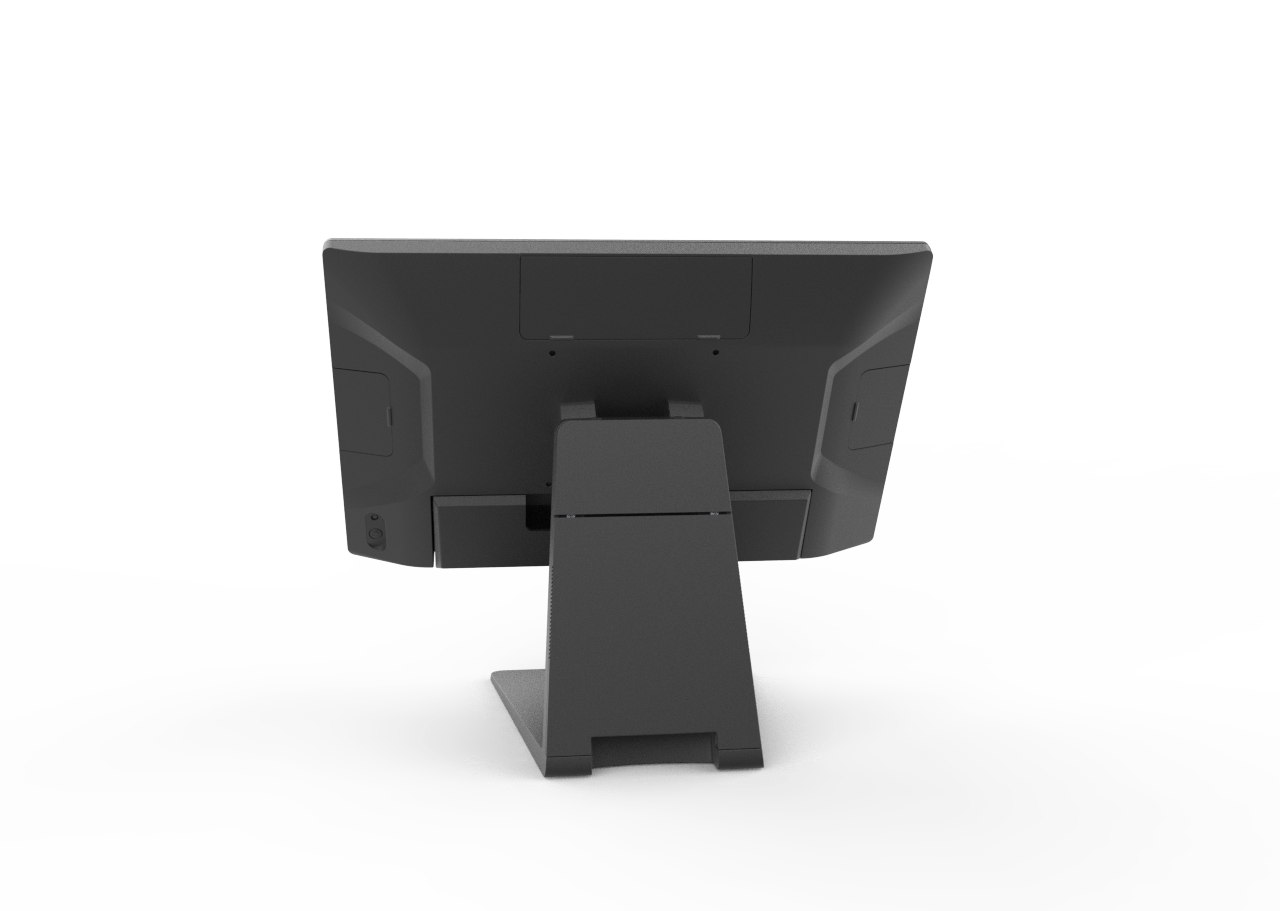

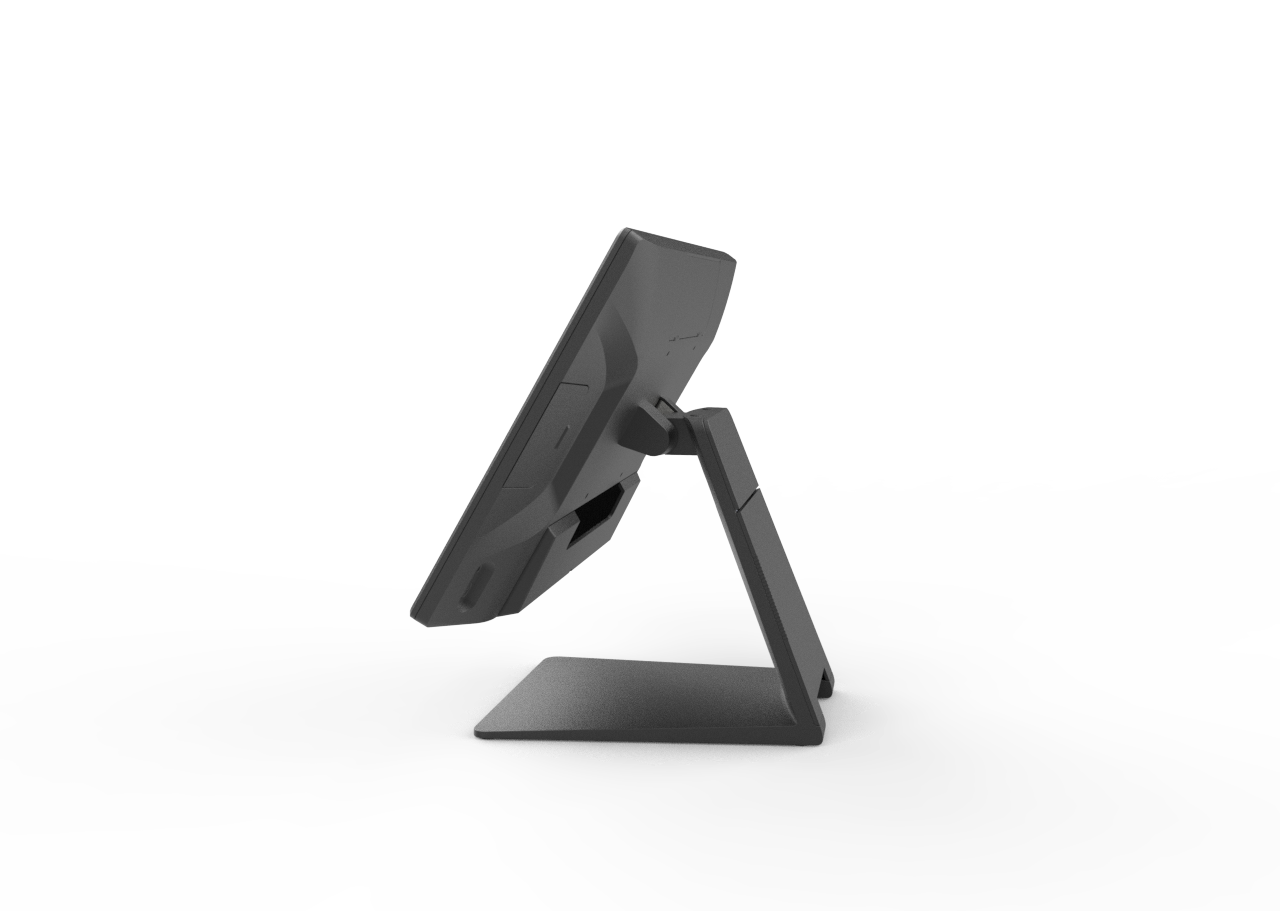

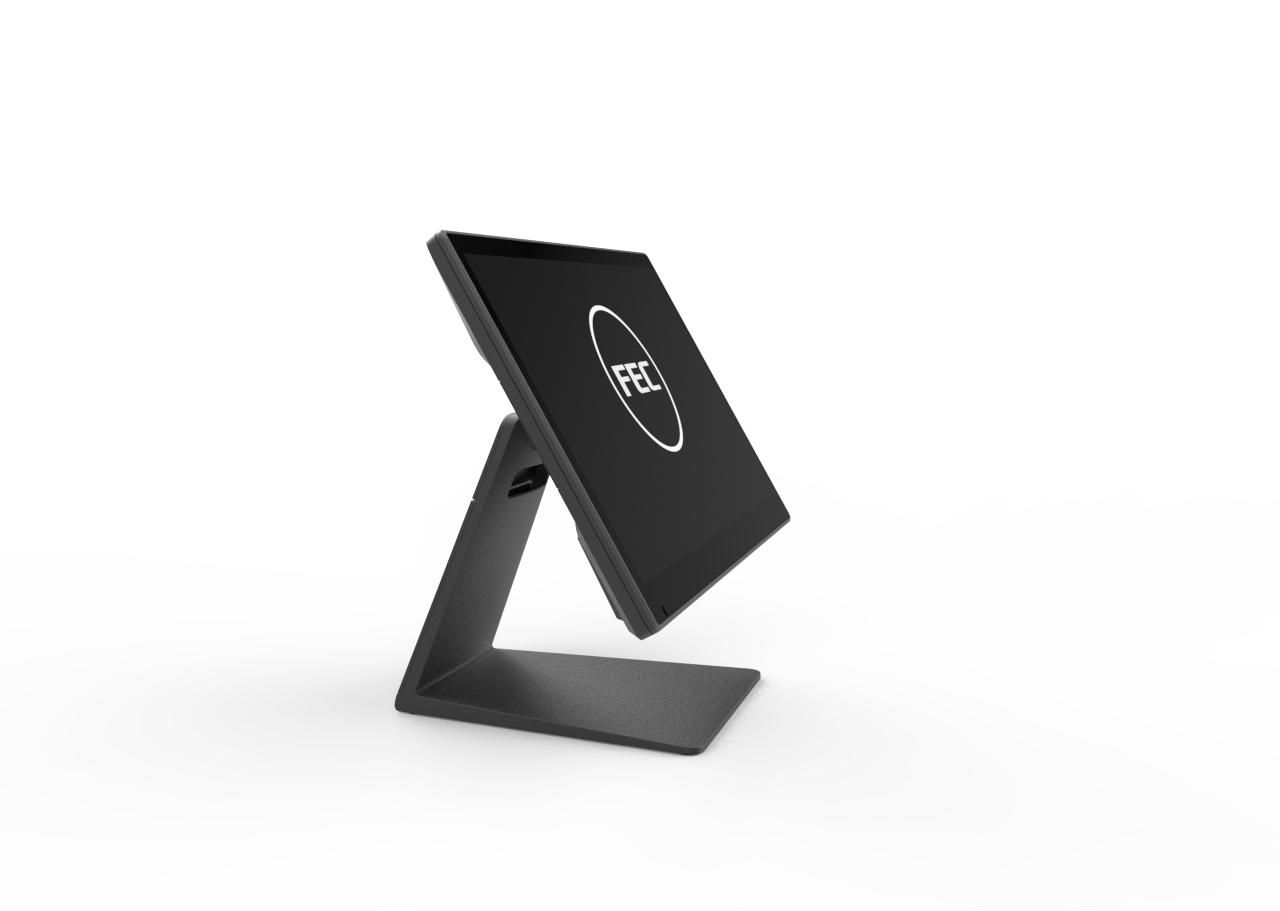

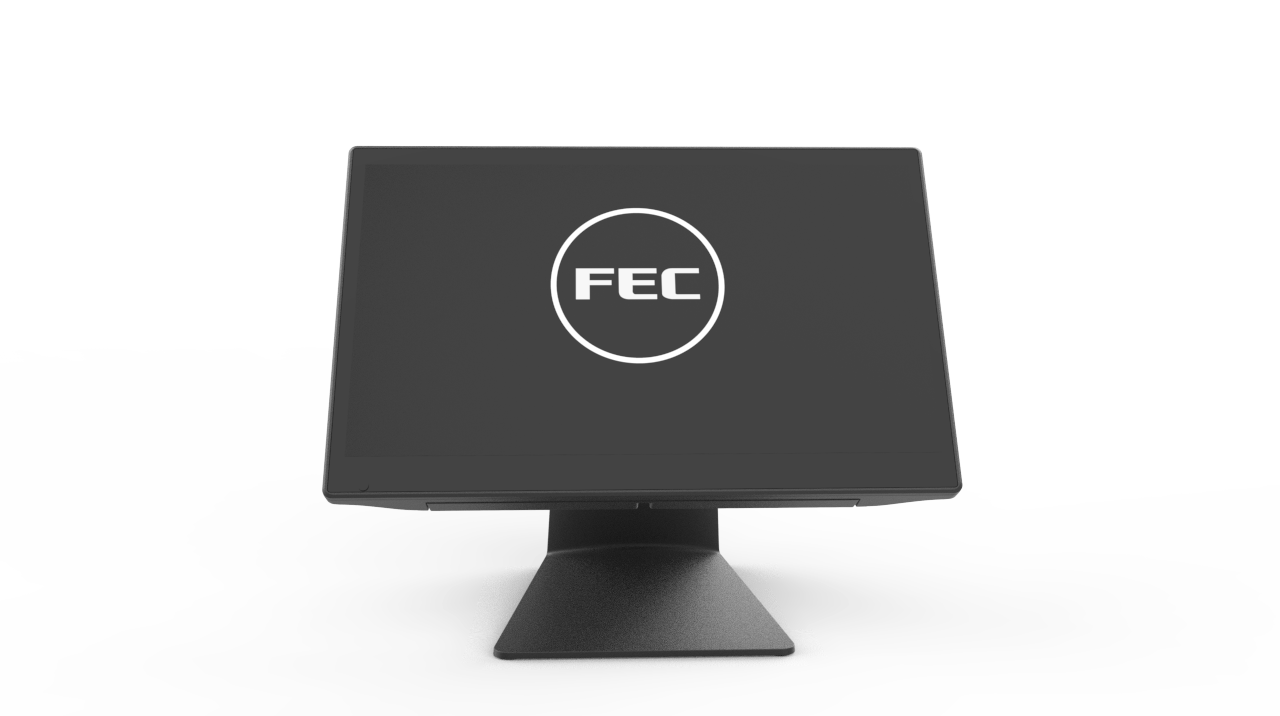

PP-9735WL

XPPC continues the XPOS's DNA, keep it slim design.

Using Intel Elkhart Lake 10th Generation Processor & Support High-speed PCIe M.2 SSD.

Adjustable angle improve the viewing angle, enhance the user experience, can also be Desktop, Pole or Wall-mounted.

Easy for maintenance: Easy to access DRAM/ SSD/ MB. Shared Peripherals: Share the same peripherals with XPOS.

Quick find

Specification.

Product

FEC

CPU	Intel® Celeron® J6412 1.5M Cache, 2.0GHz
Memory	4GB Standard, Max 128 GB (1 x So-DIMM DDR4)
Storage	1 x M.2 M Key (PCIe / SATA)
Connection	1 x M.2 E Key 802.11ac + BT 4 (Optional)
Speaker	2 x 2W Internal Speaker
Display	15.6 " TFT, 1920 x 1080
Touch	True-Flat PCAP
Brightness	250 nits
MTBF	Camera
Power	20V / 90W or 20V / 130W External AdapterOSWindows 10 IoT EnterpriseWindows 11 IoT Enterprise (Est. available in Q3 2023)LinuxTPMTPM2.0: Intel PTT
Mounting	VESA 100 x100 mm
Certification	FCC / CE Class B
Appearance	Aluminum Die-Casting + PlasticGalaxy Grey
Temperature	Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)Storage: -20˚C ~ 60˚C (-4˚F ~ 140˚F)
Dimensions (W x H x D)	Product: 512 x 309 x45 mmCarton: 662 x 210 x 440 mm
Weight	Net: 5.5KgGross: 7.0 Kg
Port	1 x RJ11 Cash Drawer (12/24V)1 x USB 3.0 Type A3 x USB 2.0 Type A1 x SMART DD (Reserved for FEC 2nd Display)1 x HDMI2 x RJ45(RS232)1 x Giga LAN1 x 20V DC-In1 x SMART IO (Reserved for optional addition IO interface)
Optional	Universal IO (Reserved for 1 of 4):1 x 24V P-USB1 x 12V P-USB2 x USB 2.01 x RJ45 (RS232)SMART IO for converting cable to (1 of 5):1 x DB9 (RS232)1 x 12V DC Out1 x 12V P-USB1 x USB Type B 2.0 + 24V DC Out1 x USB Type B 2.0 + 12V DC Out
