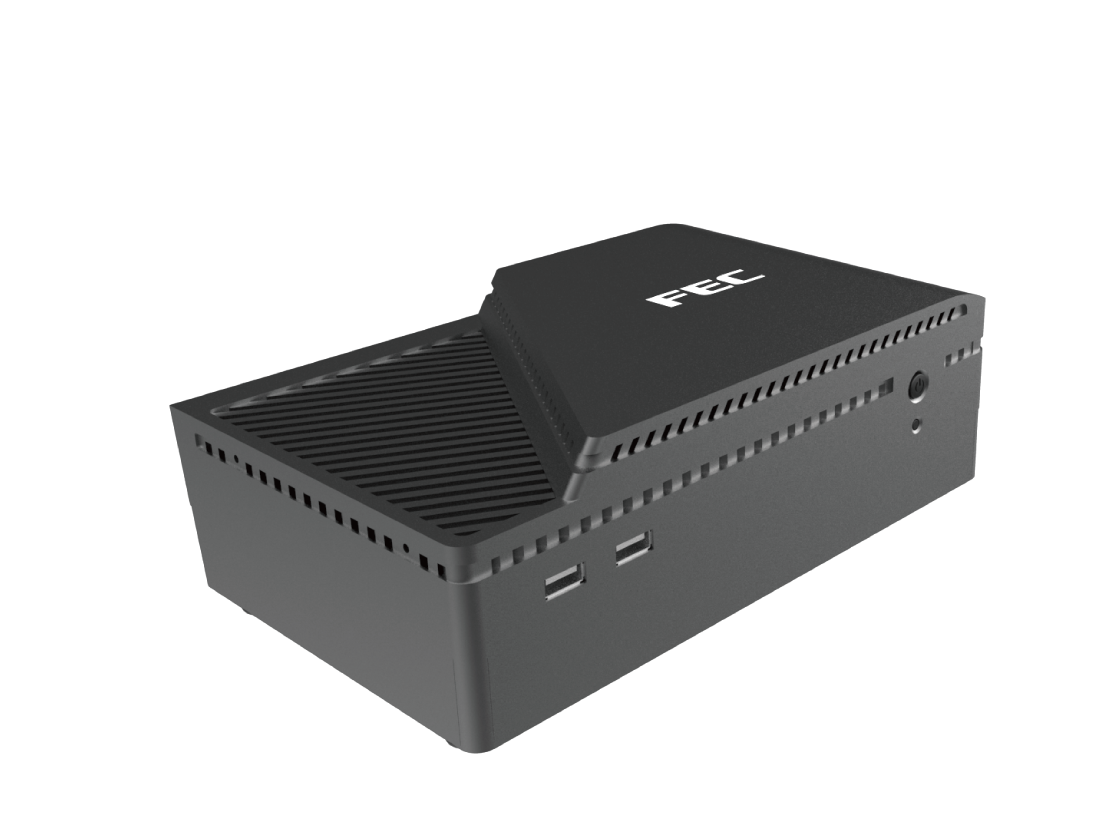

XC-574
Product Introduction
>

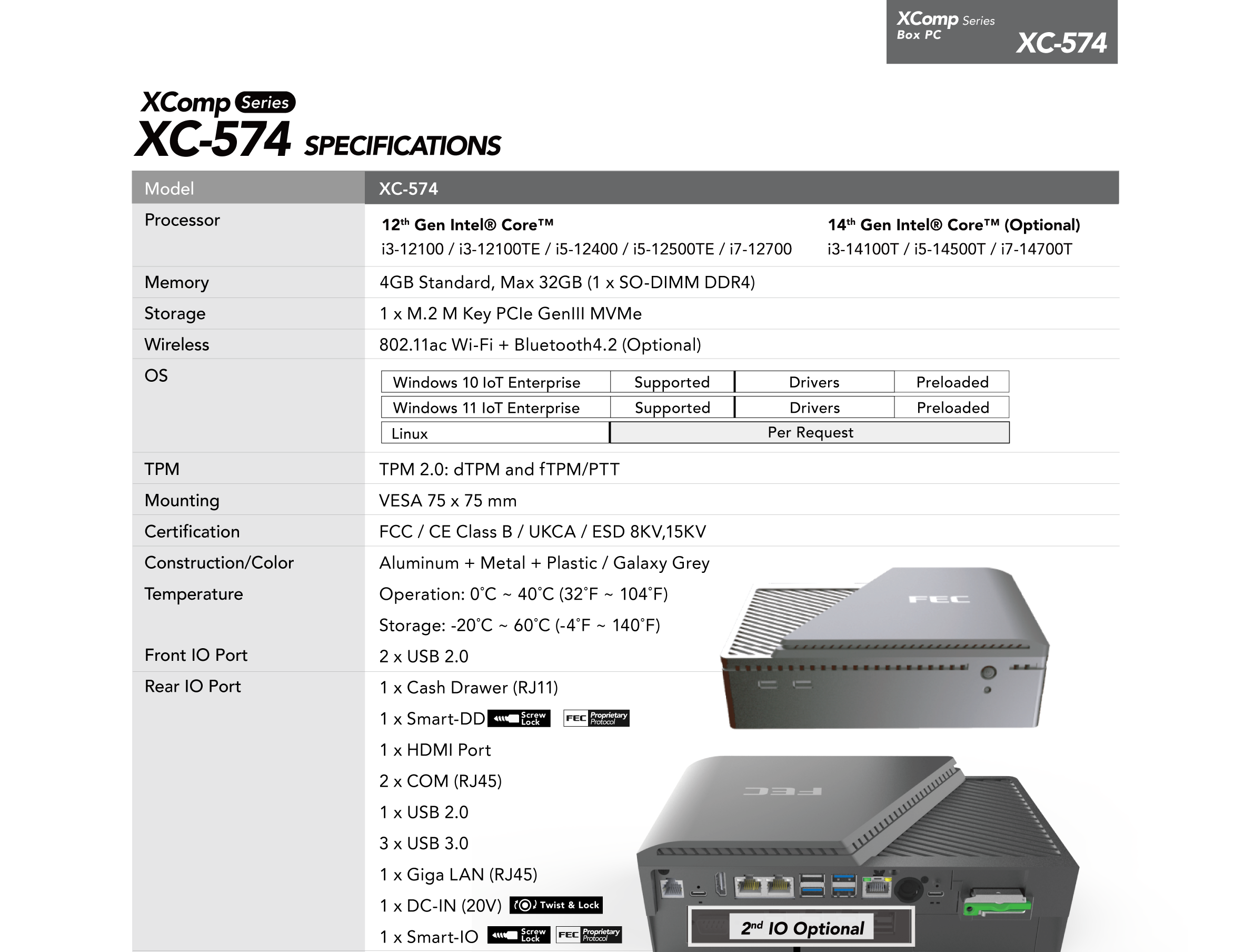

Specifications
CPU
- Intel® Core™ 12th Gen i3 / i5 / i7 Options
- i3-12100 quad-core 3.3~4.3GHz
- i3-12100TE quad-core 2.1~4GHz
- i5-12400 hexa-core 2.5~4.4GHz
- i5-12500TE hexa-core 1.9~4.3GHz
- i7-12700 12-core 2.1~4.9GHz
Memory
- 4GB Standard, Max 32GB (1 x SO-DIMM DDR4)
Storage
- 1 x M.2 M Key (PCIe) Gen3
Connection
- 802.11ac Wi-Fi + Bluetooth4.2 (Optional)
Power
- 20V/130W External Adapter
OS
- Windows 10 Enterprise
- Windows 11 Enterprise
- Linux (Per Requst)
TPM
- TPM 2.0: dTPM and fTPM
Mounting
- VESA 75 x 75 mm
Certification
- FCC / CE Class B
Construction/Color
- Aluminum + Metal + Plastic / Galaxy Grey
Temperature
- Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)
- Storage: -20˚C ~ 60˚C (-4˚F ~ 140˚F)
Dimensions (W x H x D)
- Product: 222x140x73 mm
- in Carton: 321x217x159 mm
Weight
- Net: 1.9 Kg Gross: 2.3 Kg

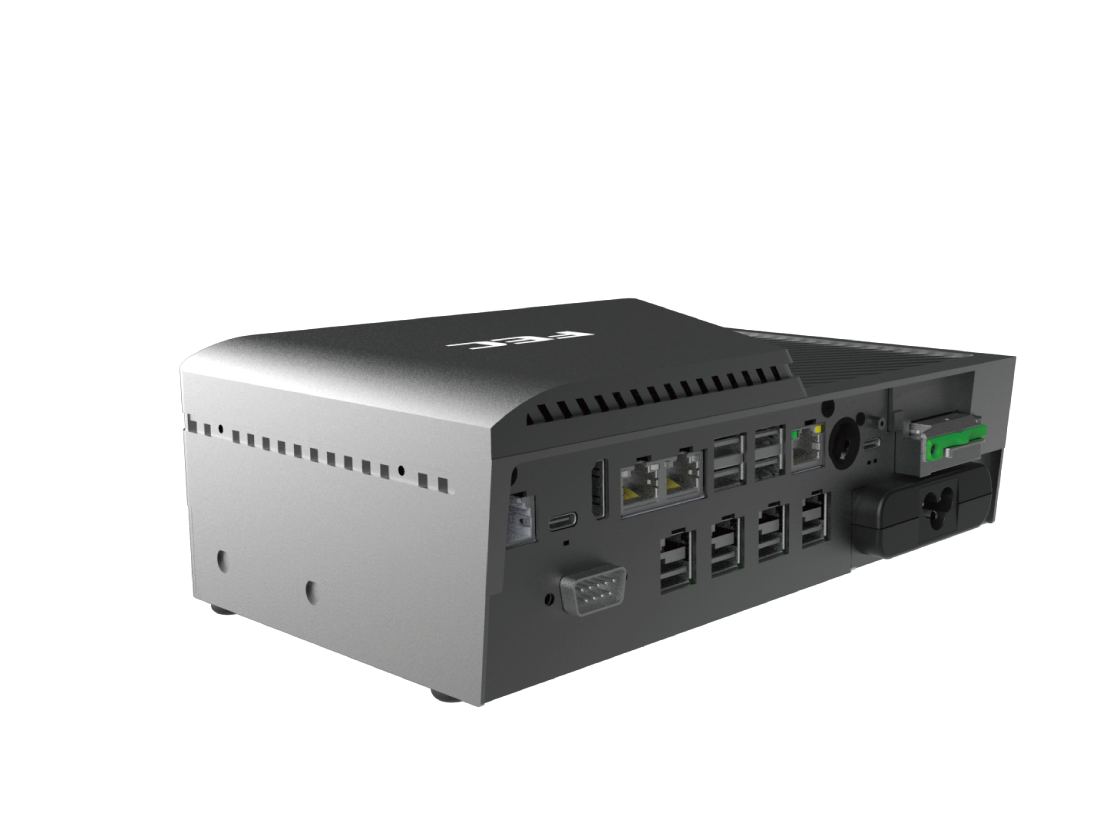

Rear IO Port

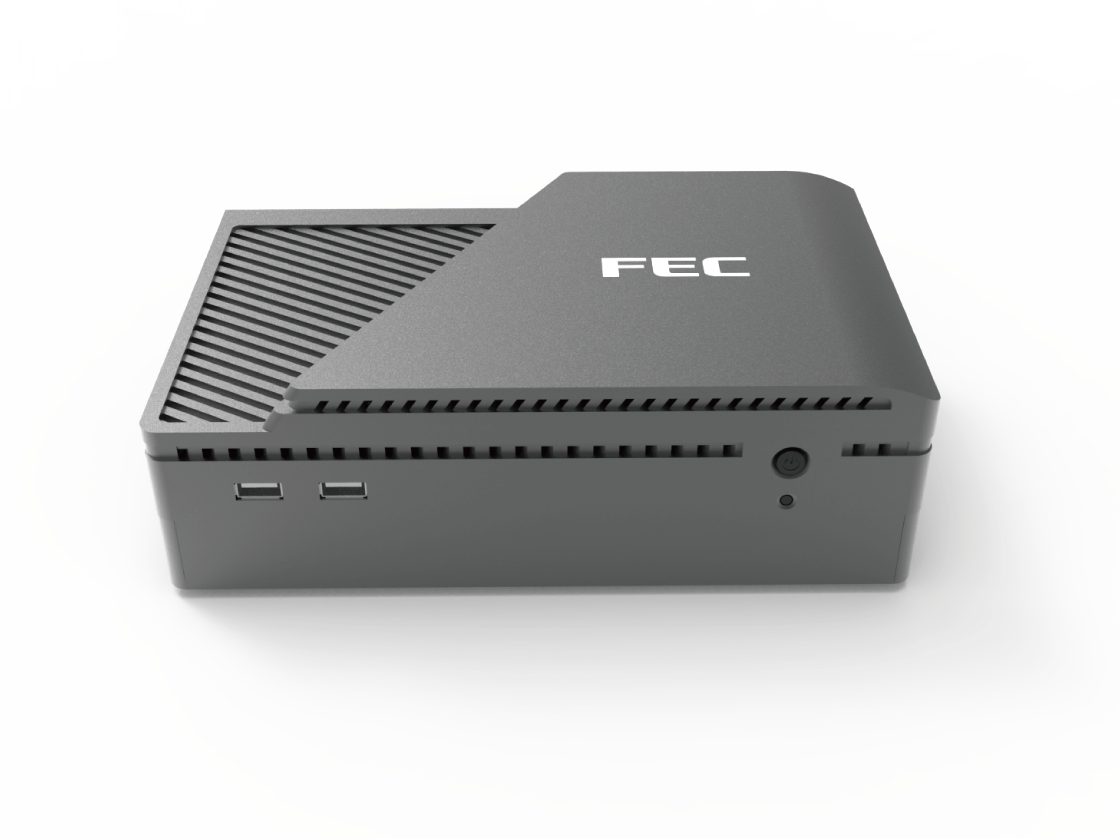

- Front IO Port:
- 2 x USB 2.0

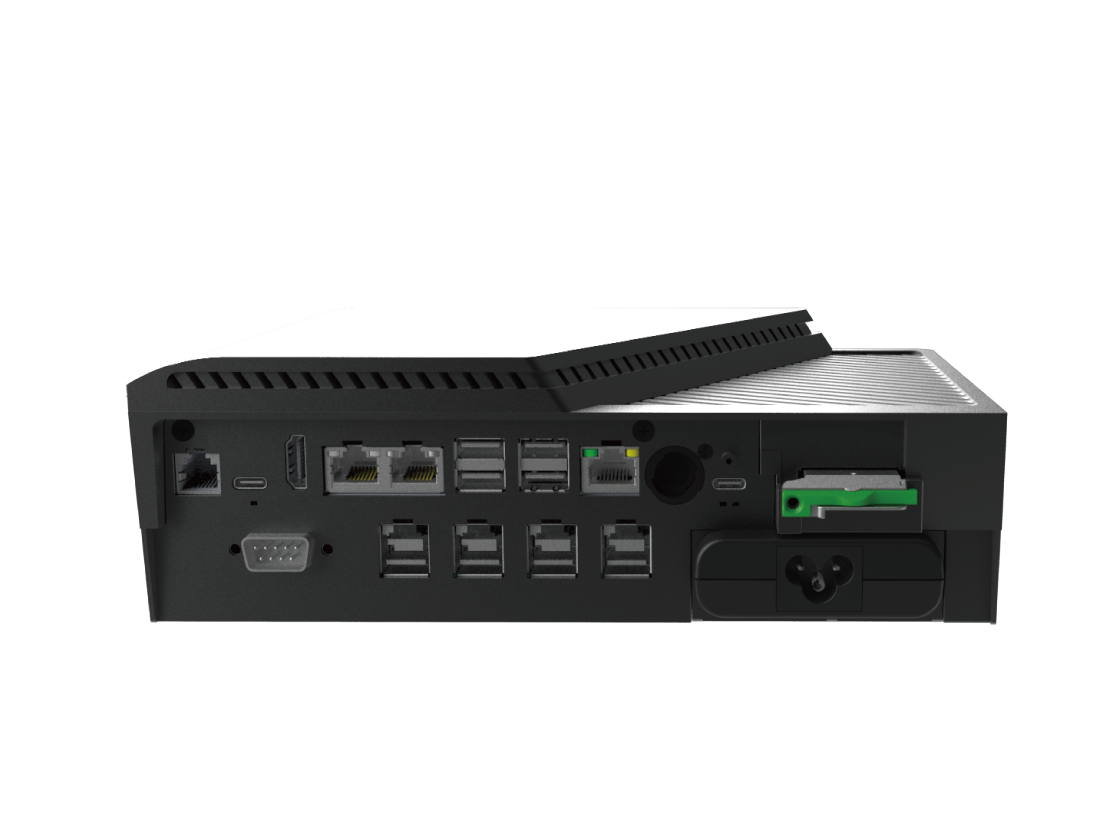

- Rear IO Port:
- 1 x Cash Drawer (RJ11)
- 1 x Smart-DD
- 1 x HDMI Port
- 2 x COM (RJ45)
- 1 x USB 2.0
- 3 x USB 3.0
- 1 x Giga LAN (RJ45)
- 1 x DC-In (20V)
- 1 x Smart-IO

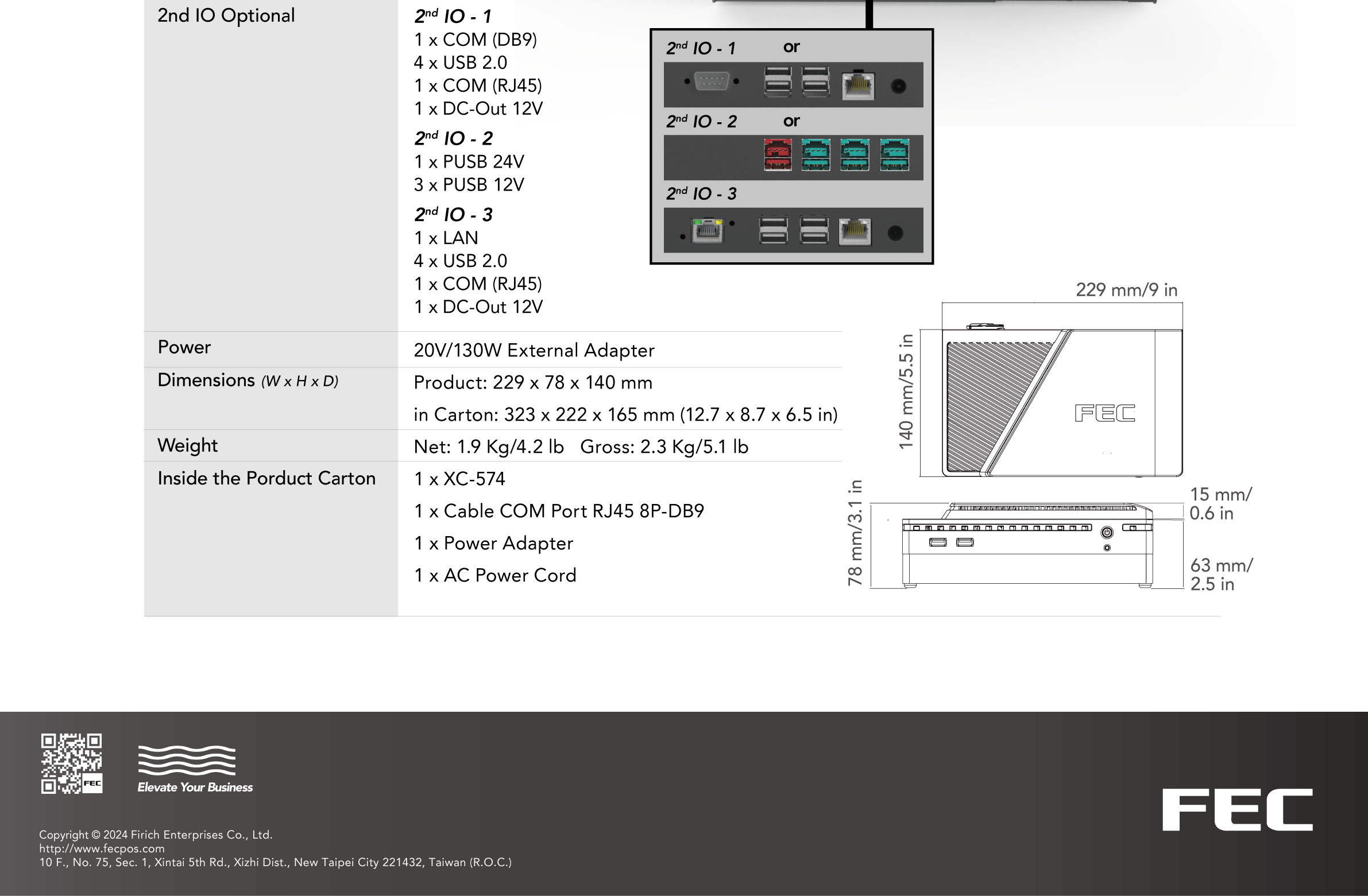

Front IO Port
- 2nd I/O-1:
2 x COM (DB9, RJ45)
4 x USB 2.0
1 x DC-Out 12V - 2nd I/O-2:
1 x PUSB 24V
3 x PUSB 12V - 2nd I/O-3:
1 x Giga LAN (RJ45)
1 x COM (RJ45)
4 x USB 2.0
1 x DC-Out 12V
