Connect With XPOS, XPPC Series.
Available in Windows and Android OS.

01

Self Service, Optimize queuing and improve efficiency

Scan
Scan
Print
Print
Payment
Payment
Counter
Counter
proimages/Web_Data/product/07-KIOSK/Xlef工作區域_1.png
02

15 | 15.6 | 17 | 22

Four Sizes & resolutions
to fulfill different needs

proimages/product-detail/07-KIOSK/KS-3682W/KS-3682W_fea7.jpg
03

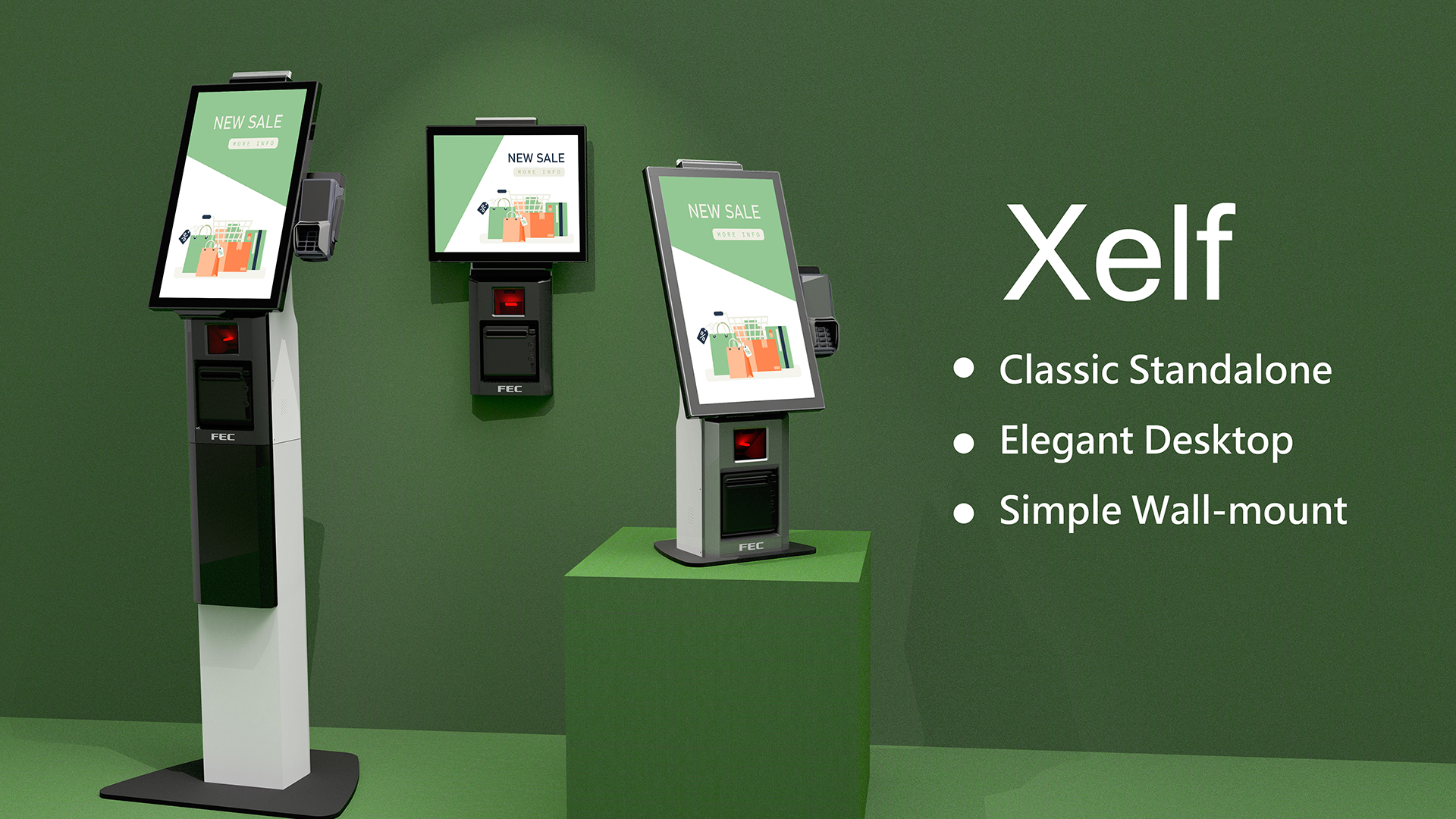

Xelf

● Classic Standalone

● Elegant Desktop

● Simple Wall-mount

proimages/product-detail/07-KIOSK/KS-3682W/KS-3682W_fea8.jpg
04

Self-Checkout

Fast, efficient checkout to improve your customer's experience and your bottom line.

proimages/product-detail/07-KIOSK/KS-3682W/KS-3682W_fea10.jpg
05

Self-Ordering

Expand your in-store aisles or your menu boards to expand your sales.

proimages/product-detail/07-KIOSK/KS-3682W/KS-3682W_fea11.jpg
06

Expandable Service

Device flexibility, expand your kiosk capabilities through additional devices.

proimages/product-detail/07-KIOSK/KS-3682W/KS-3682W_fea12.jpg
xelf_gif

Specifications

Display
Display
  • XPOS version: 15”/15.6”/17”/22”
  • XPPC version: 15.6”/22”
CPU
CPU
  • XPOS version:
  • Intel® Celeron® 3965U 2M Cache, 2.20 GHz
  • Intel Core™ i3 7100U 3M Cache, 2.40 GHz
  • Intel Core™ i5 7300U 3M Cache, up to 3.50 GHz
  • XPPC version:
  • Intel® Core™ i3-12100 12M Cache, up to 4.30 GHz
  • Intel® Core™ i3-12100TE 12M Cache, up to 4.00 GHz
  • Intel® Core™ i5-12400 18M Cache, up to 4.40 GHz
  • Intel® Core™ i5-12500TE 18M Cache, up to 4.30 GHz
  • Intel® Core™ i7-12700 25M Cache, up to 4.90 GHz (By Project)
OS
OS
  • Windows
  • Android
Mounting
Mounting
  • Desktop
  • Wallmount
  • Standalone
Certification
Certification
  • FCC / CE Class B
Appearance
Appearance
  • Aluminum Die-Casting + Plastic
  • Galaxy Grey
Temperature
Temperature
  • Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)
  • Storage: -20˚C ~ 60˚C (-4˚F ~ 130˚F)
Dimensions (W x H x D)
Dimensions (W x H x D)
  • Product: 300 x 780 x 270 mm (22" Desktop version)
  • Product: 570 x 1545 x 390 mm (22" Standalone version)
Optional
Optional
  • Honeywell CF3680
  • Green&Red Led Status LED indicator
  • 2MP Camera
  • Additional 5W USB Speaker x 2
  • Support printer: FEC TP-100, Epson M30, Seiko D10
