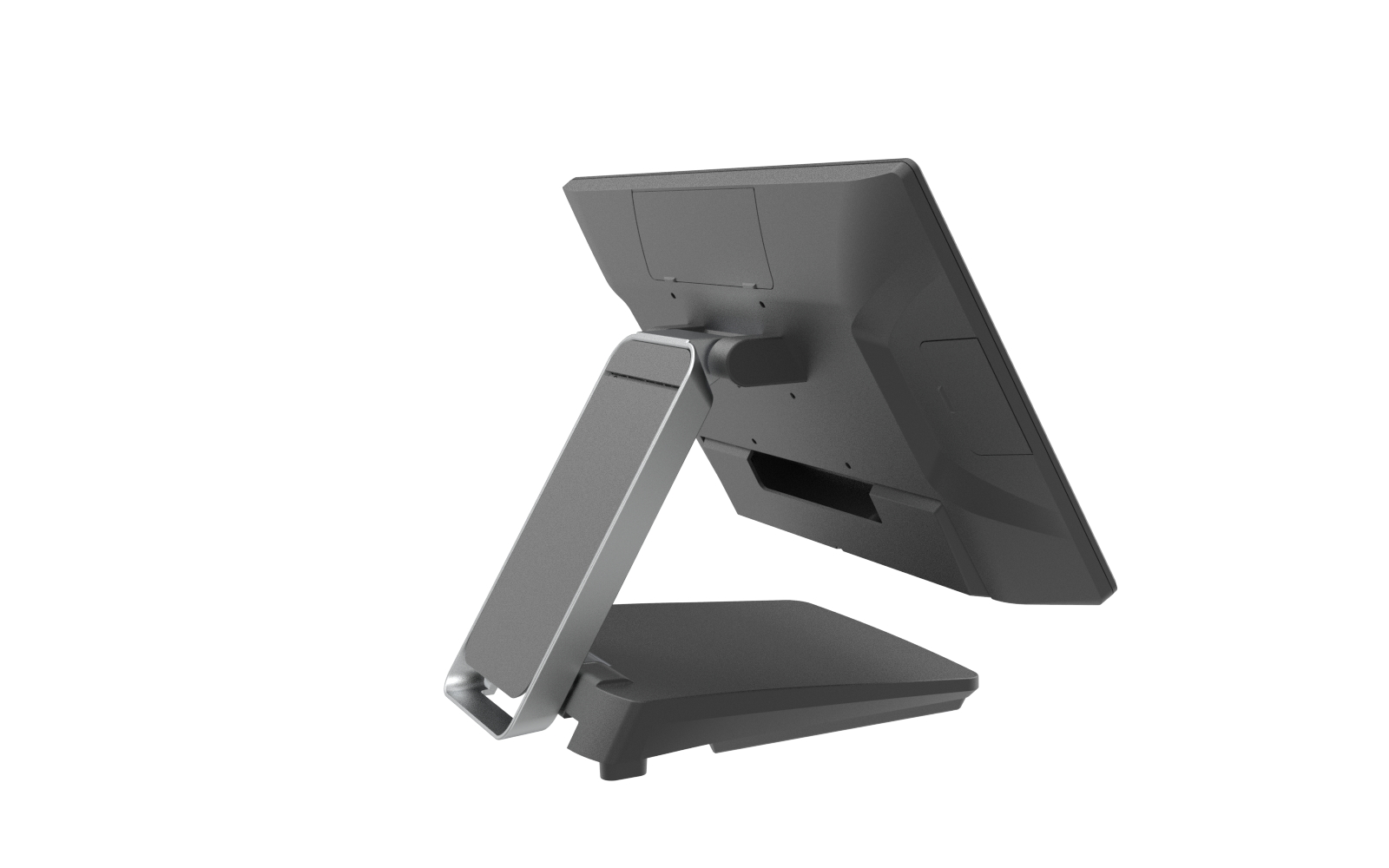

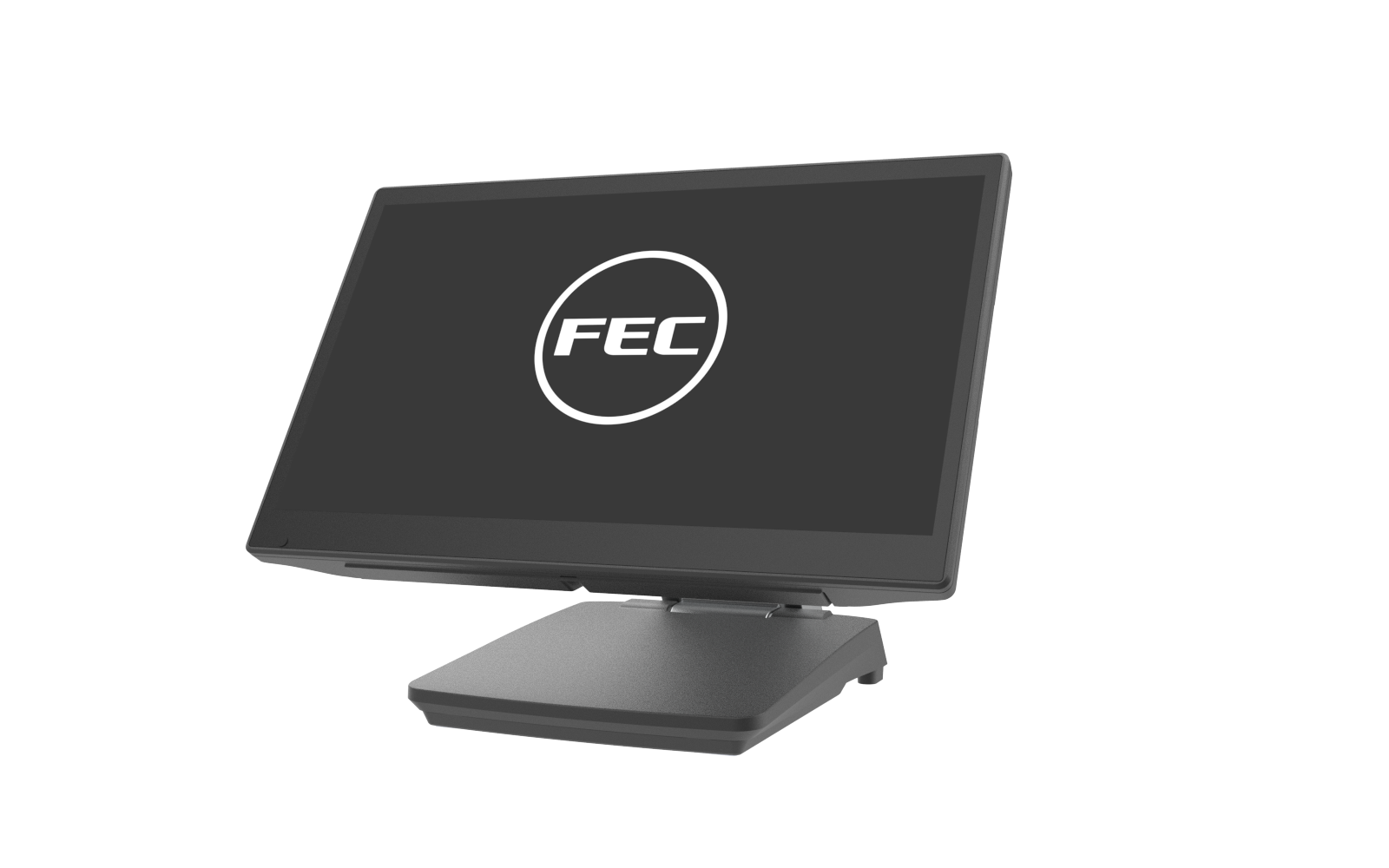

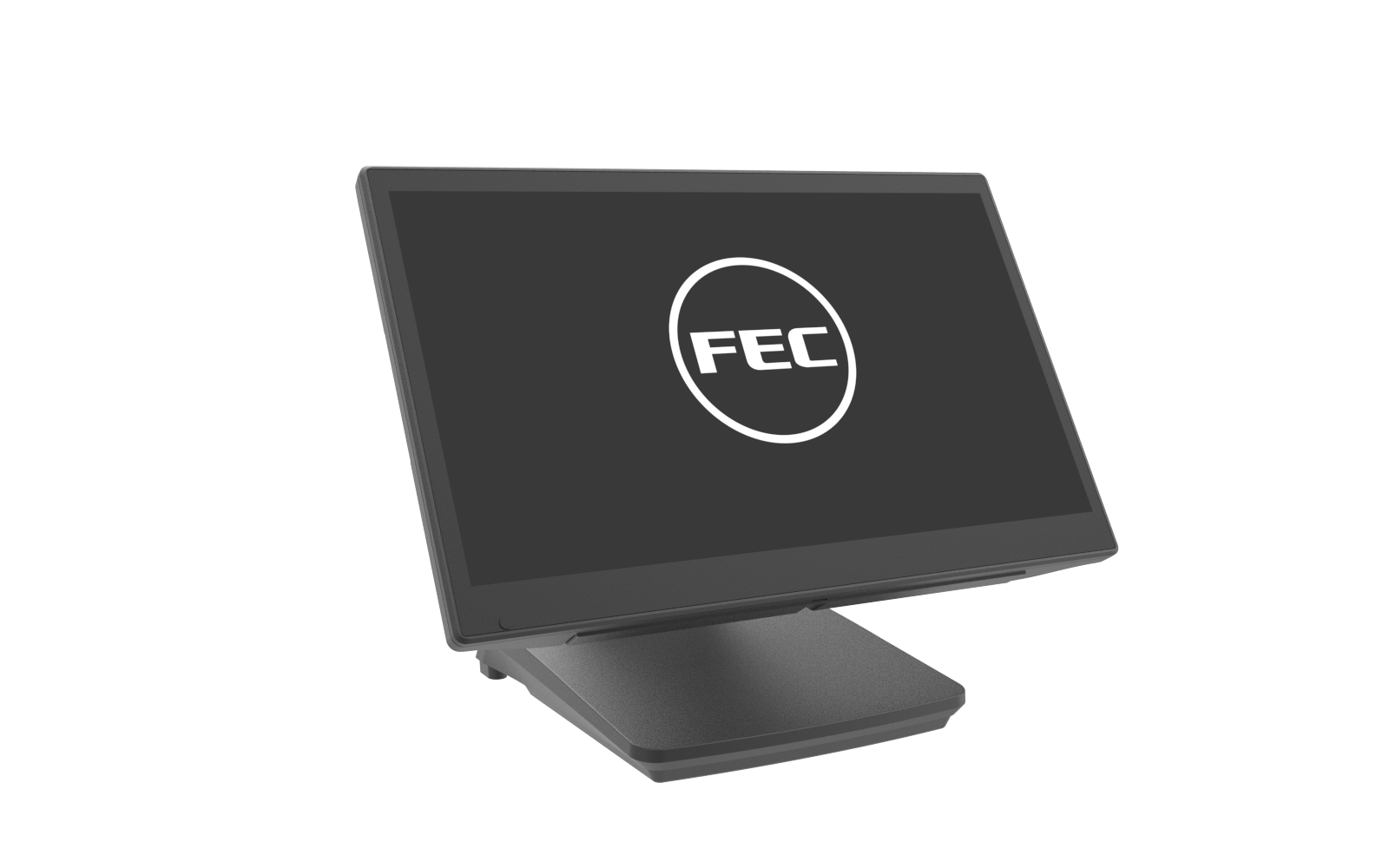

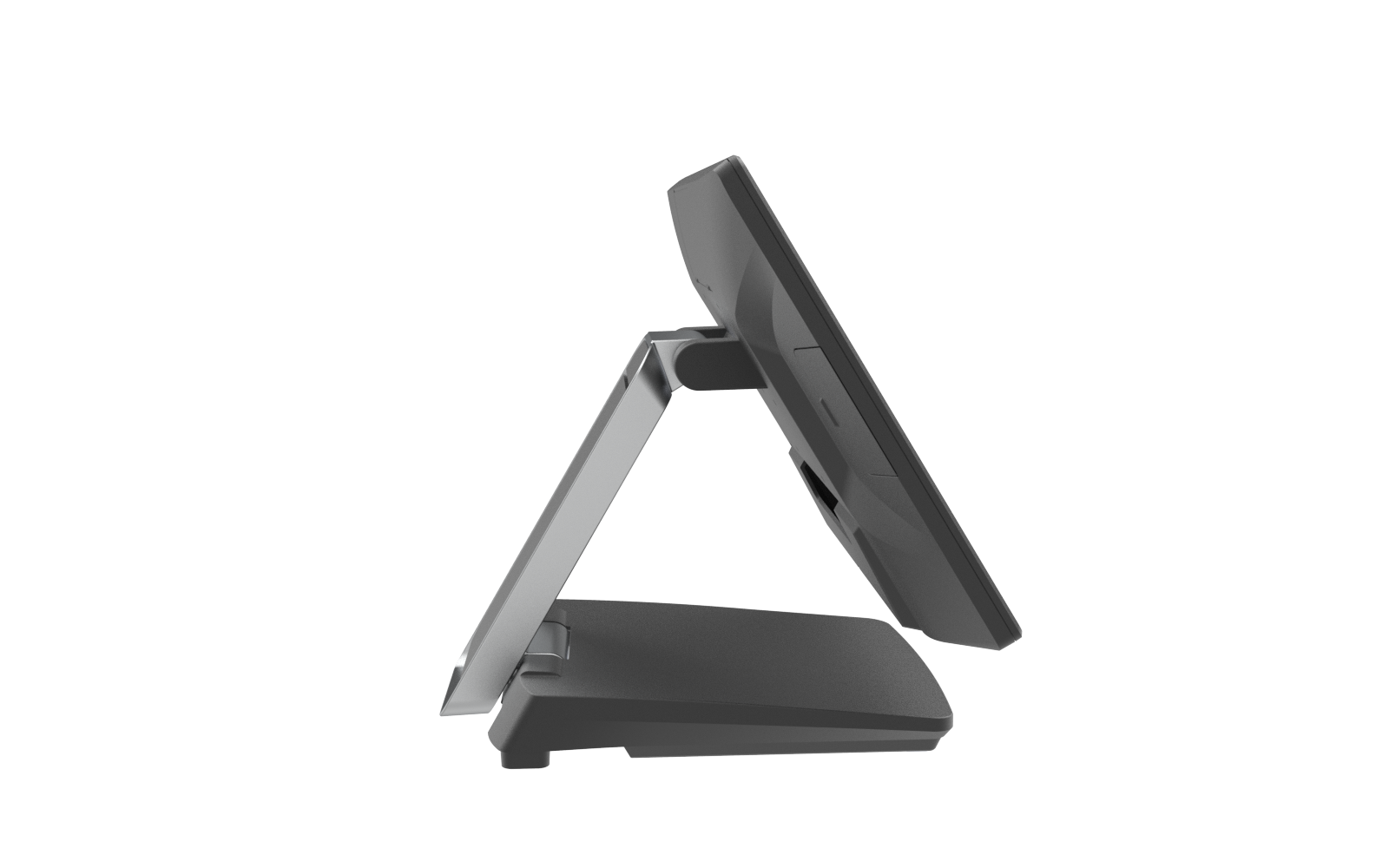

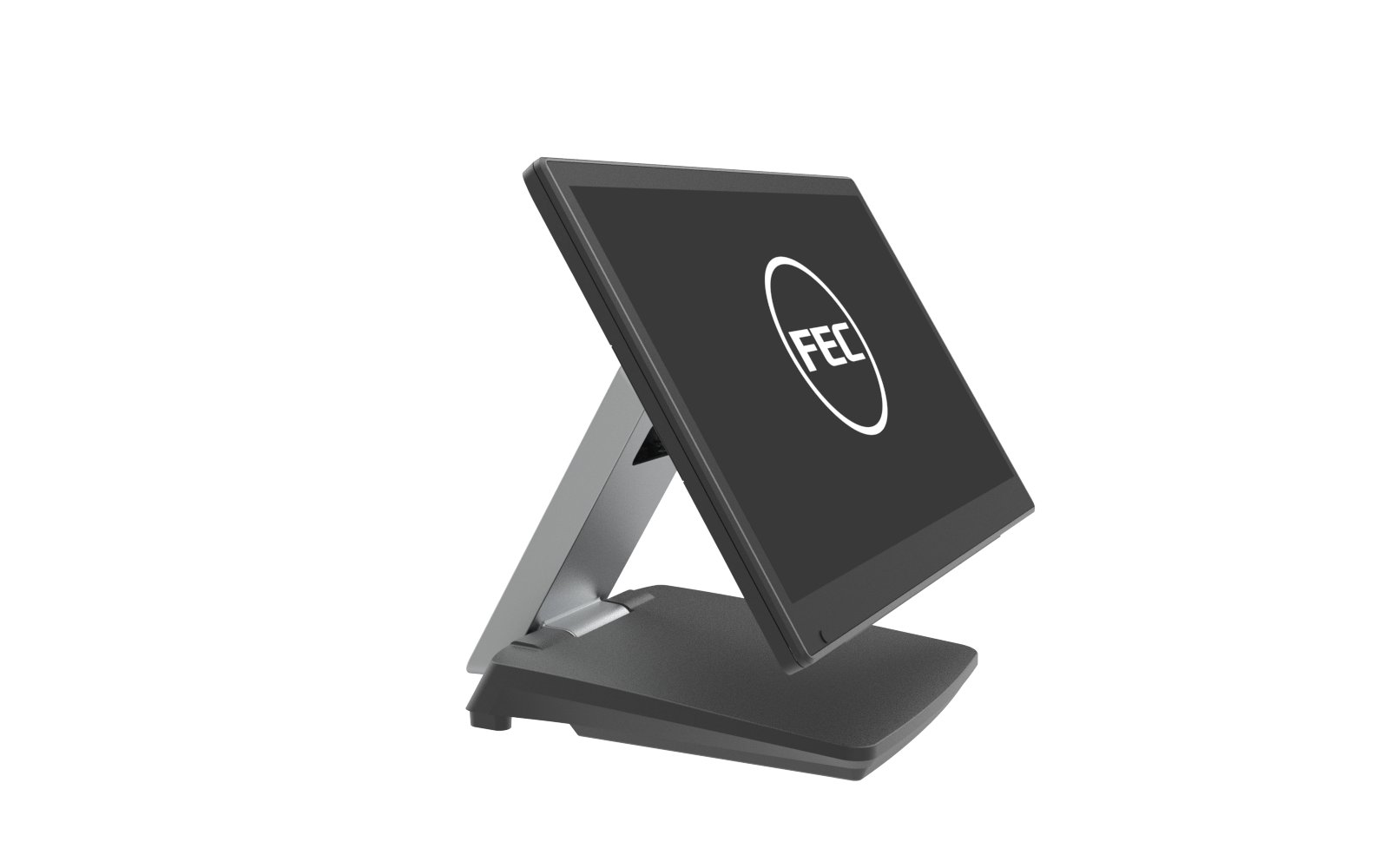

• XPPC continues the XPOS\'s DNA, keep it slim and dual-hinge design.
  • Using Intel Alder Lake 12th Generation Processor & Support High-speed PCIe M.2 SSD.
  • Adjustable angle and height improve the viewing angle, enhance the user experience, can also be Desktop, Pole or Wall-mounted.
  • Easy for maintenance: Easy to access DRAM/ SSD/ MB.
  • Shared Peripherals: Share the same peripherals with XPOS.

01

ECO-FRIENDLY

Reduce the size and package to save the environment and for easier transportation

02

WITH PAYMENT EFT / SCANNER

Two ways for add-on device settlement.

Arm type Barcode Scanner

Payment Device

RFID Device

03

2nd Display

Arm / Pole Type for different countertop

04

S E N S O R

Ambient light sensor allows system automatically adjust the brightness of the screen according to the environment.

05

Alder LAKE

High Performance CPU For Complex solution.

06

A LITTLE EXTRA

Hidden adapter in base or customized I/O (by project).

-->

Specifications

CPU
CPU
  • Intel® Core™ i3-12100 12M Cache, up to 4.30 GHz
  • Intel® Core™ i3-12100TE 12M Cache, up to 4.00 GHz
  • Intel® Core™ i5-12400 18M Cache, up to 4.40 GHz
  • Intel® Core™ i5-12500TE 18M Cache, up to 4.30 GHz
  • Intel® Core™ i7-12700 25M Cache, up to 4.90 GHz (By Project)
Memory
Memory
  • 4GB Standard, Max 32GB (1 x So-DIMM DDR4)
Storage
Storage
  • 1 x M.2 M Key (PCIe GenIII)
Connection
Connection
  • 1 x M.2 E Key 802.11ac + BT4 (Optional)
Speaker
Speaker
  • 2 x 2W Internal Speaker
Display
Display
  • 15.6" TFT, 1920 x 1080
Touch
Touch
  • True-Flat PCAP
Brightness
Brightness
  • 300 nits
MTBF
MTBF
  • 30K Hours
Camera
Camera
  • 2MP Front Camera (Optional)
Power
Power
  • 20V / 90W or 20V / 130W External Adapter
OS
OS
  • Windows 10 IoT Enterprise
  • Windows 11 IoT Enterprise (Est. available in Q3 2023)
TPM
TPM
  • TPM2.0: dTPM and Intel PTT
Mounting
Mounting
  • VESA 100 x 100
Certification
Certification
  • FCC / CE Class B
Appearance
Appearance
  • Aluminum Die-Casting + Plastic
  • Galaxy Grey
Temperature
Temperature
  • Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)
  • Storage: -20˚C ~ 60˚C (-4˚F ~ 140˚F)
Dimensions (W x H x D)
Dimensions (W x H x D)
  • Product: 368 x 272.5 x 315 mm
  • Carton: 468x 156 x 448 mm
Weight
Weight
  • Net 3.9 kg
  • Gross 4.9 kg
Port
Port
  • 3 x USB 3.0 Type A
  • 1 x USB 2.0 Type A
  • 1 x USB 2.0 Type A (Reserved for Add-On)
  • 1 x Smart DP (Reserved for Customer Display (COM3) or 2nd Display)
  • 2 x RJ45 (COM1, COM2)
  • 1 x RJ45 LAN
  • 1 x Smart DD
  • 1 x Smart I/O (COM5)
  • 1 x Video Port
  • 1 x RJ11 (12V/24V)
Optional
Optional
  • Universal I/O (Select 1 from below)
    1 x PUSB 24V (Default)
    1 x PUSB 12V
    2 x USB 2.0 Type A
    1 x RJ45 (COM4)
