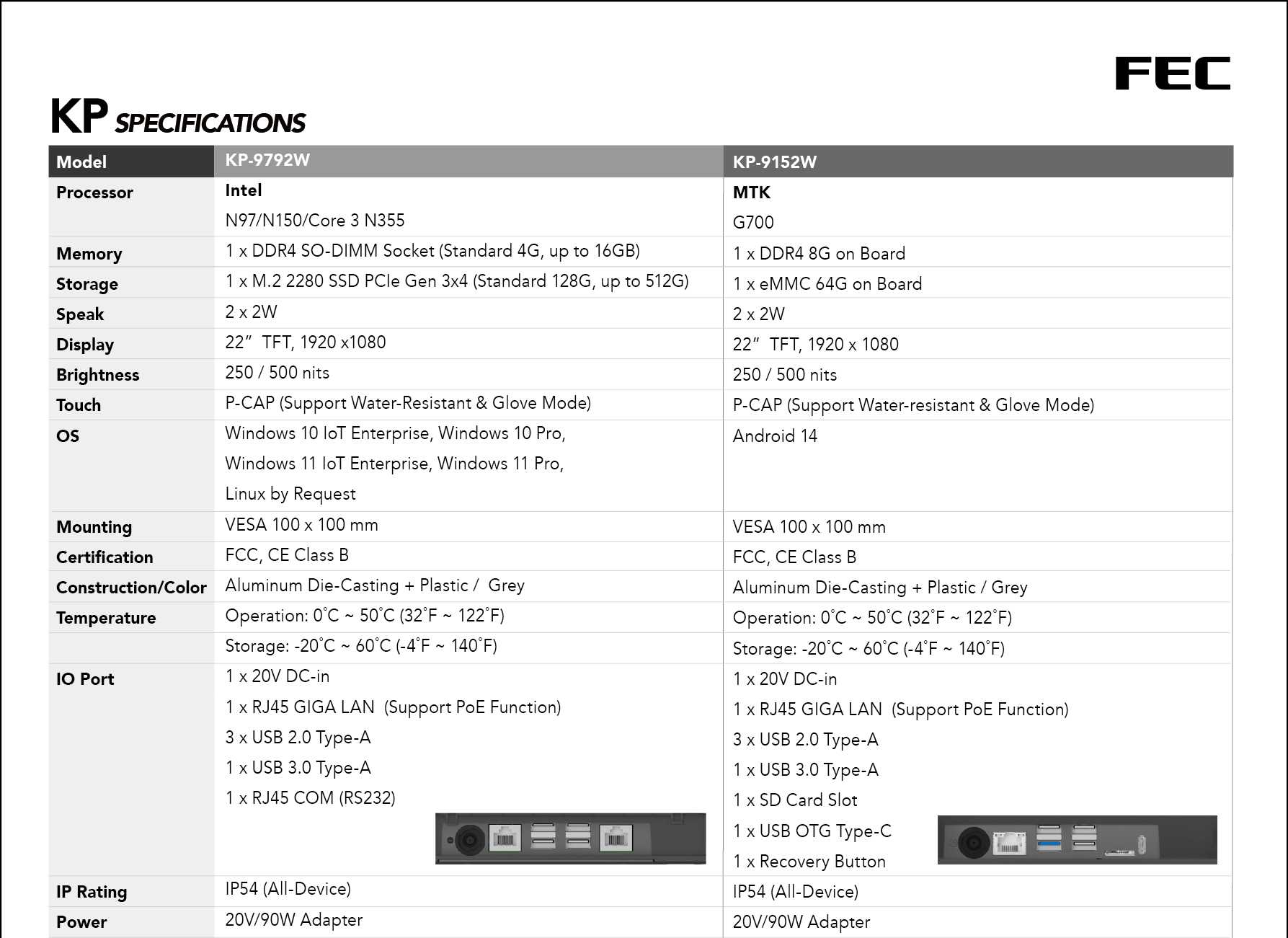

| System |
|---|
| Processor |
Intel N97 / N150 / Core 3 N355 |
|---|
| Memory |
DDR4 4 GB (standard), up to 16 GB1 x SO-DIMM |
|---|
| Storage |
M.2 2280 PCIe Gen 3 x4 SSD, 128 GB (standard), up to 512 GB |
|---|
| Operating System |
Windows 10 IoT Enterprise / Windows 10 Pro / Windows 11 IoT Enterprise / Windows 11 ProLinux by request |
|---|

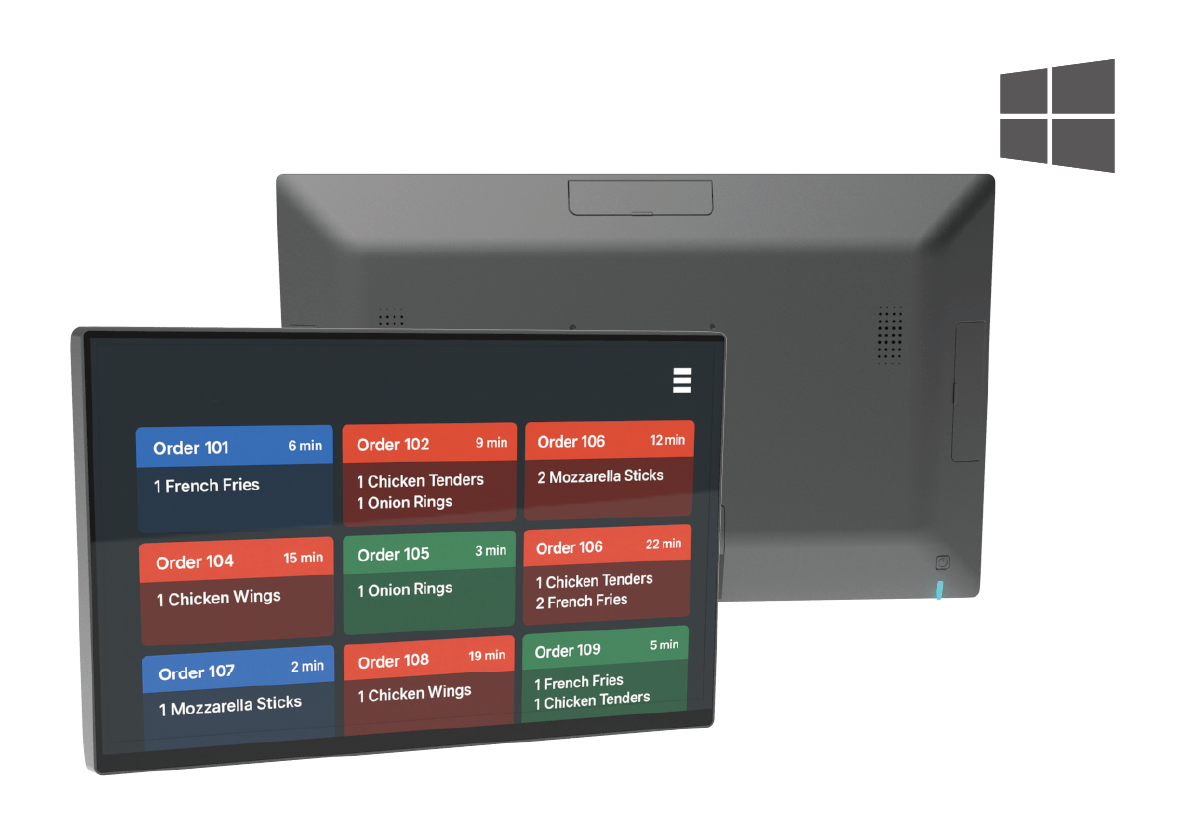

| Display |
|---|
| Display |

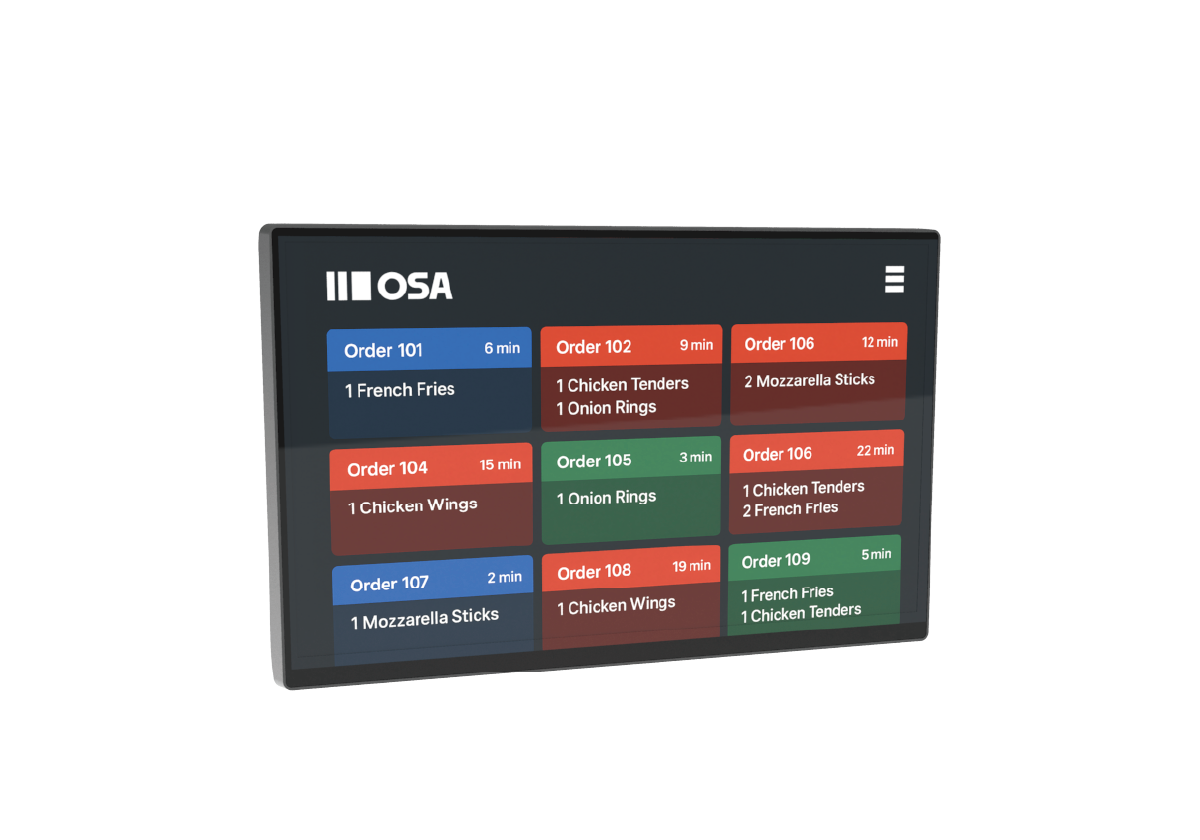

22 in. TFT, 1,920 x 1,080 |
|---|
| Brightness |
250 / 500 nits |
|---|
| Touch |
PCAP multi-touchwet-hand and glove operation supported |
|---|
| Audio |
|---|
| Speaker |
2 x 2 W internal speakers |
|---|
| Connectivity |
|---|
| Wi-Fi |
optional internal Wi-Fi |
|---|
| Camera |
optional internal Wi-Fi, scanner, RFID, status LED bar, and camera |
|---|
| External I/O |
|---|
| External I/O |

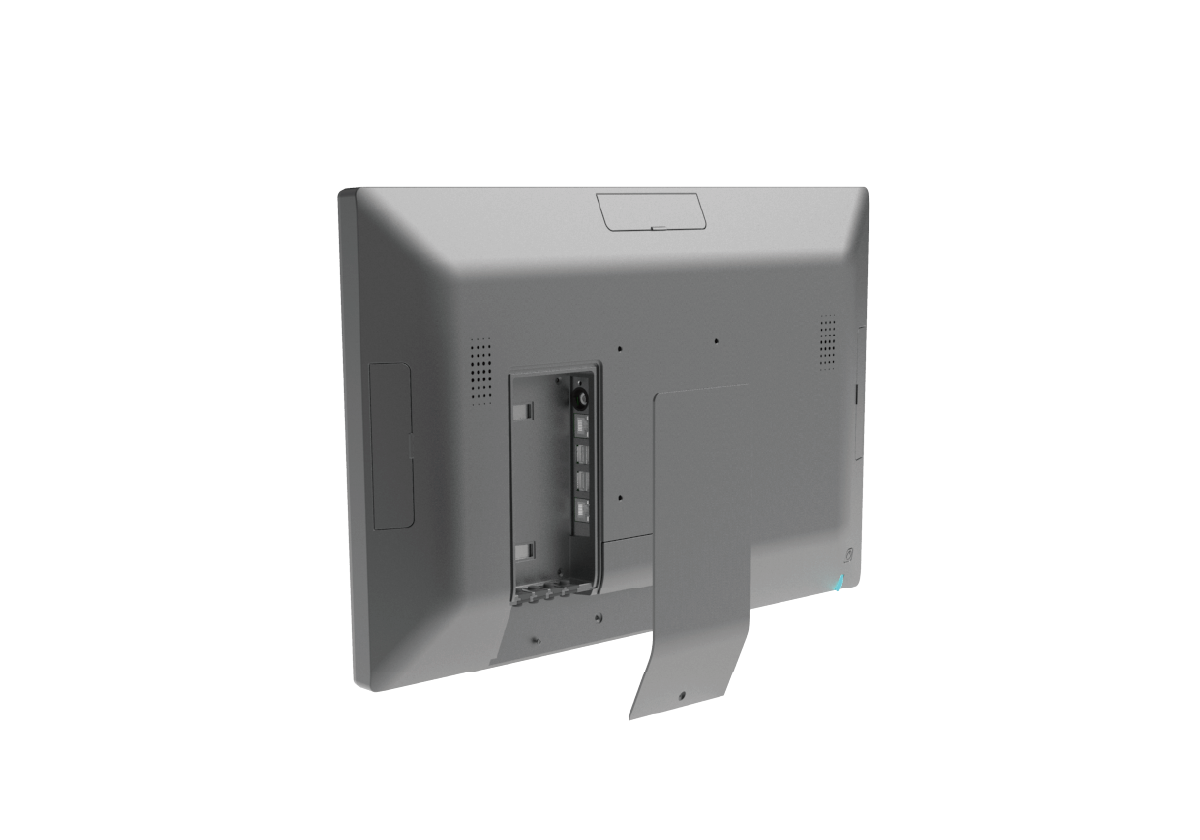

1 x 20 V DC-in1 x RJ45 Gigabit Ethernet (PoE)3 x USB 2.0 Type-A1 x USB 3.0 Type-A1 x RJ45 COM (RS-232) |
|---|
| Power |
|---|
| Power |
20 V / 90 W external adapteroptional PoE PD module, 24 V / 60 W |
|---|
| Mechanical |
|---|
| Mounting |
VESA 100 x 100 mmfull-device IP54aluminum die-casting + plasticGrey |
|---|
| Construction |
aluminum die-casting + plastic |
|---|
| Color |
Grey |
|---|
| Environmental |
|---|
| Operation Temperature |
0°C - 50°C / 32 to 122°F |
|---|
| Storage Temperature |
-20°C - 60°C / -4 to 140°F |
|---|
| Compliance |
|---|
| Certifications |
FCC / CE Class B |
|---|
| Ingress Protection (IP Rating) |
IP54 |
|---|
| Shipping |
|---|

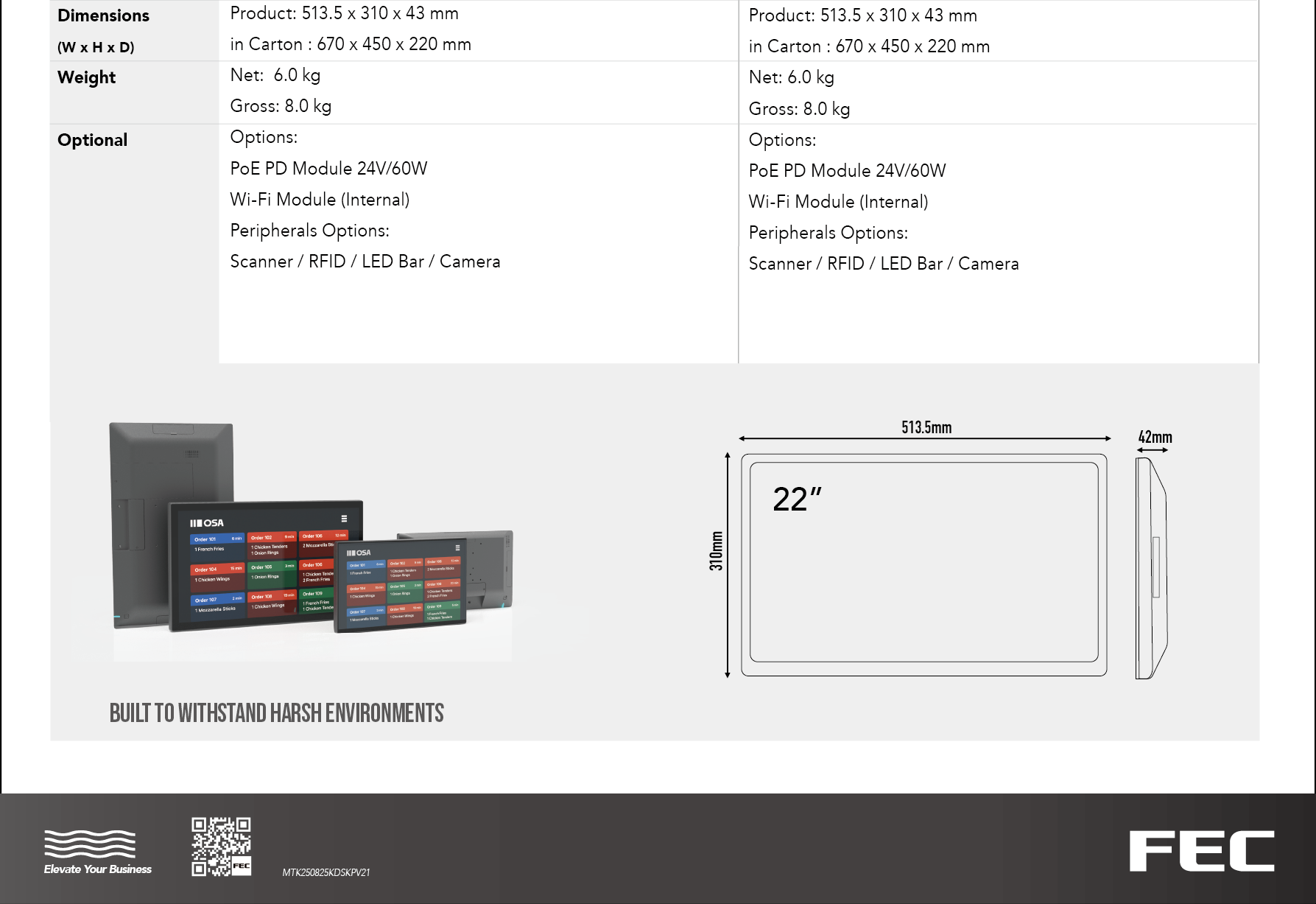

| Dimension |
513.5 x 310 x 43 mm20.22 x 12.20 x 1.69 in |
|---|
| Net Weight |
6.0 kg |
|---|
| Carton |
Subject to packaging configuration. |
|---|
| Gross Weight |
Subject to packaging configuration. |
|---|
