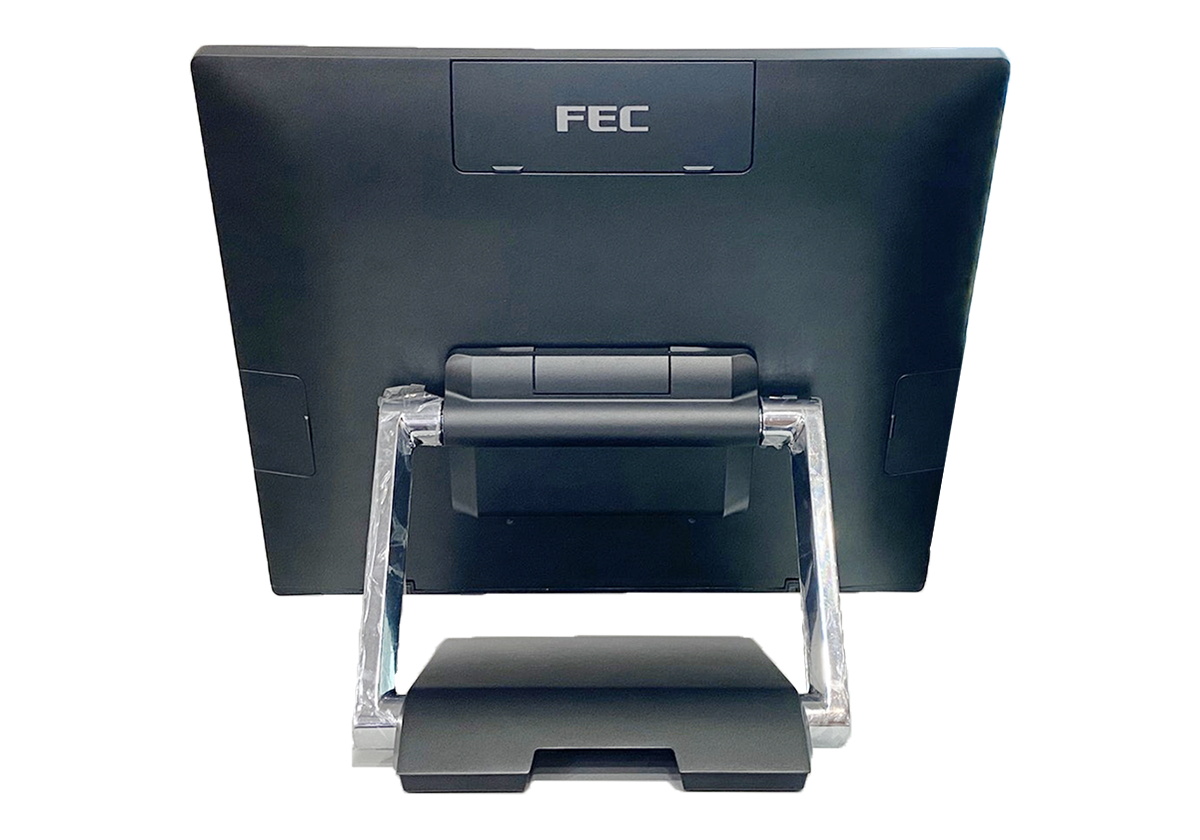

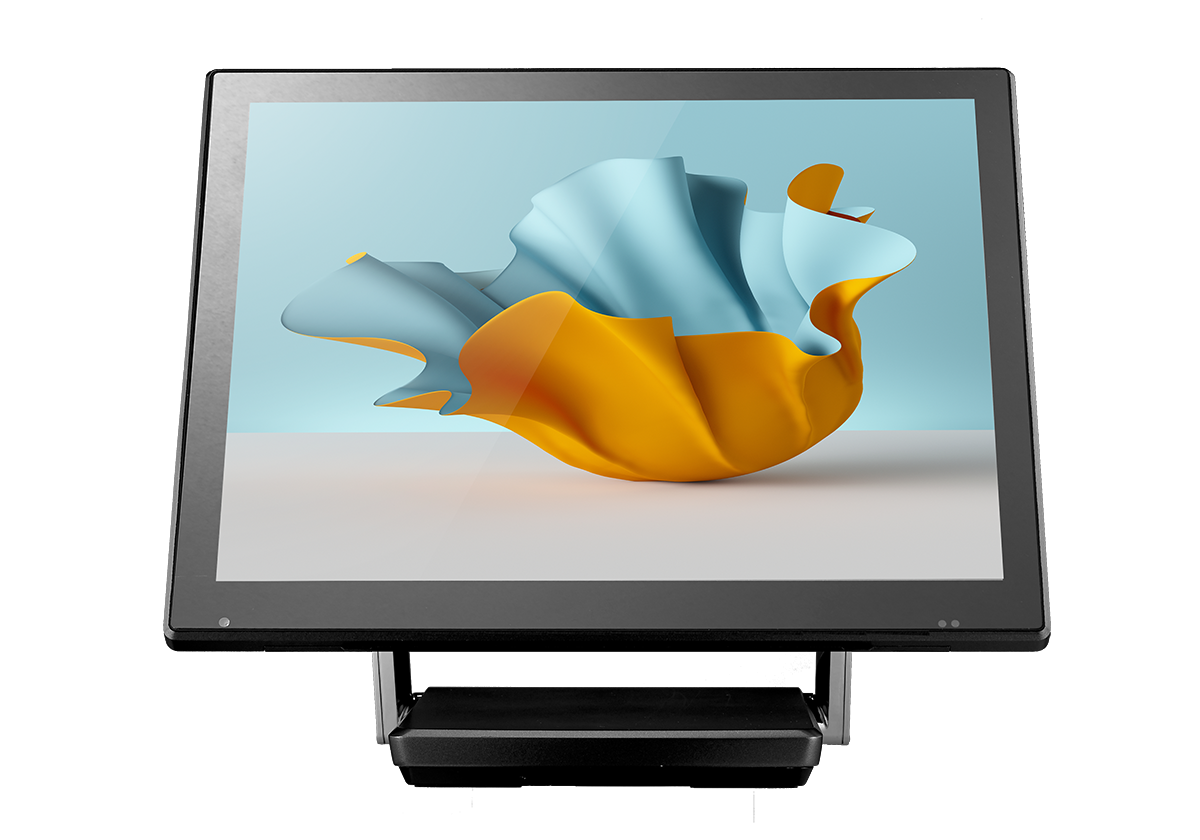

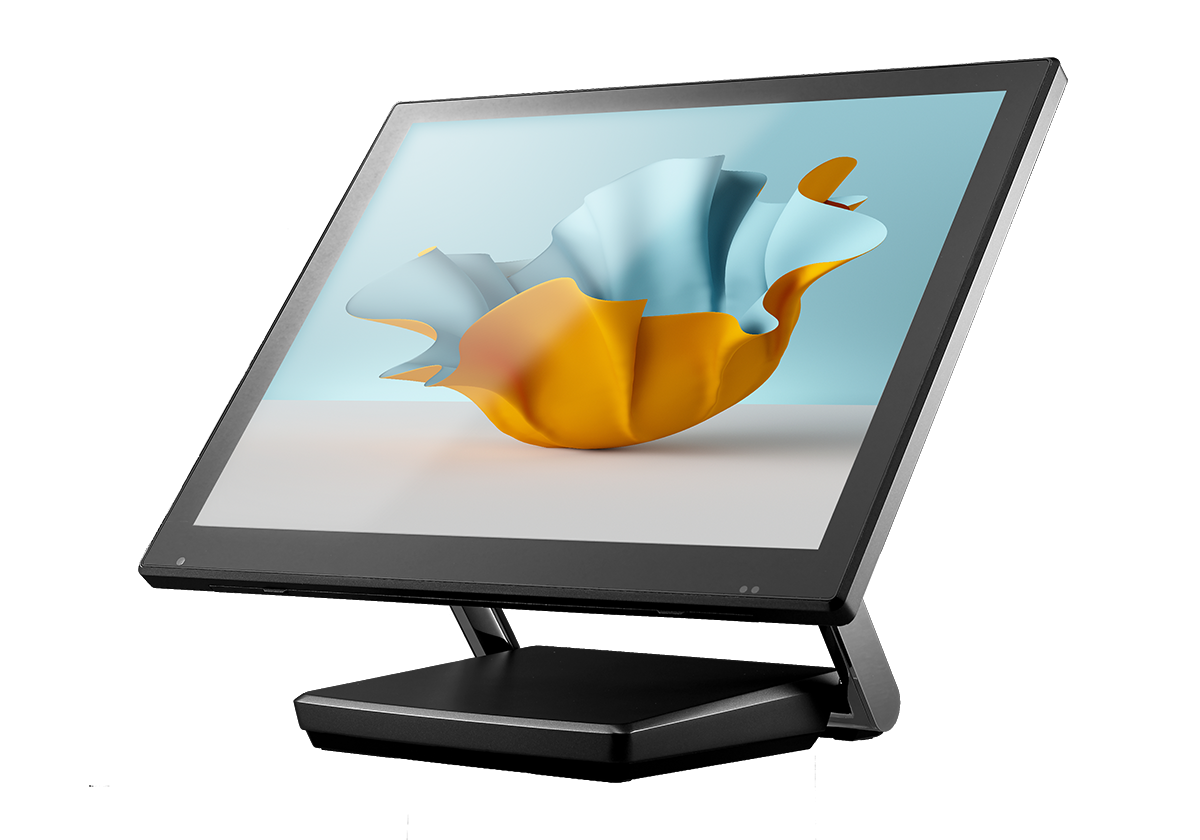

XPOS is a modern and powerful point of sale system designed with Intel® 7th generation Celeron®, Core™ i3 and Core™ i5 processors.

01

Flexible

High / Low Profile

02

Extendable

Dock the second display on the system or extend the display out on a flat surface.

03

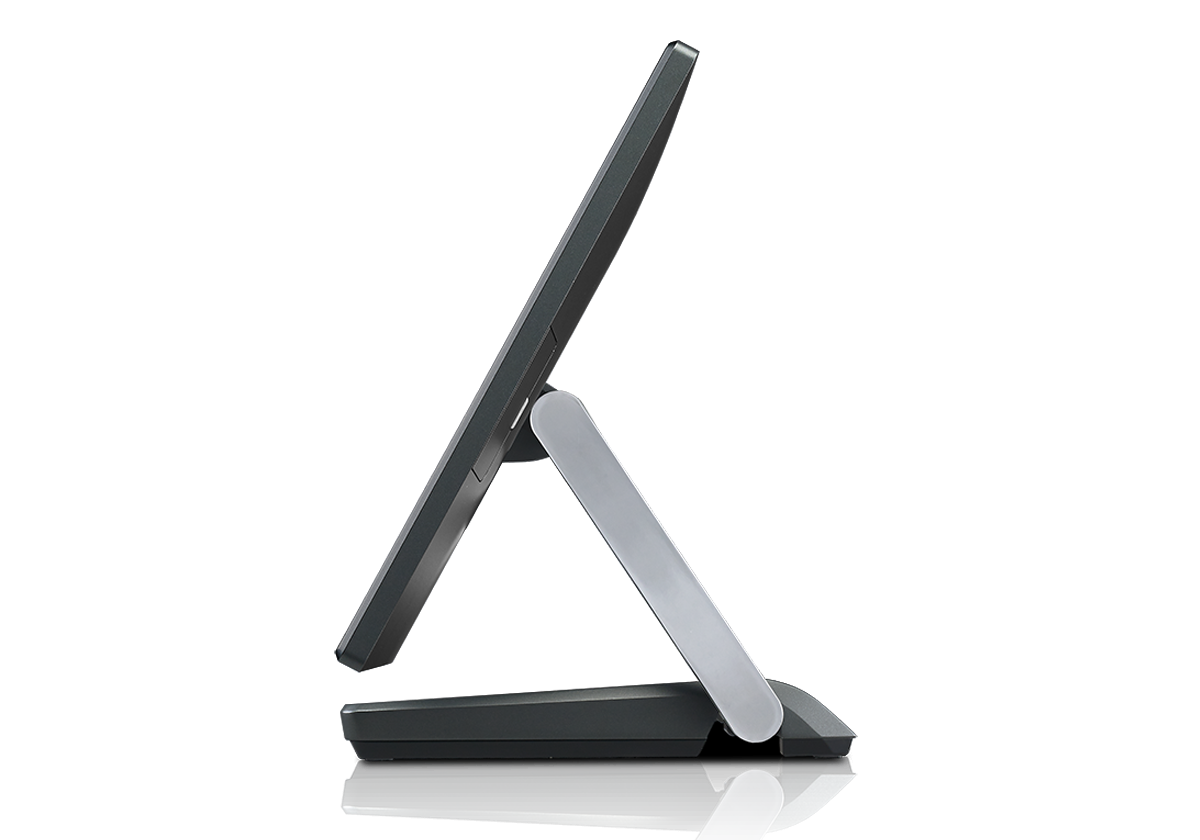

Slim

04

Suitable for multiple applications

Specifications

CPU
CPU
  • Intel® Celeron® 3965U; Intel Core™ i3 7100U; Intel Core™ i5 7300U
Memory
Memory
  • 4GB Standard, Maximum 32GB (2 x 260-pin DDR4)
Storage
Storage
  • 2 x M.2 (B + M Key) SATA III (PCIE)
  • *(Celeron® Supports 1x PCIE, i3, i5 Supports 2 x PCIE)
Connection
Connection
  • 2 x M.2 E Key 801.11ac + BT (Optional)
Speaker
Speaker
  • 2 x 2W Internal Speaker
Display
Display
  • 17" TFT-LCD / 1280 x 1024
Touch
Touch
  • Projected Capacitive
Brightness
Brightness
  • 400 cd/m2 (LED)
Power
Power
  • 90W (20V/4.5A) or 130W (20V/6.5A) External Adapter
Port
Port
  • 1 x USB 3.0 Type A
  • 1 x USB 2.0 Type A
  • 1 x USB DP (Reserved for 2nd Display)
  • 1 x FEC DP (Customer Display or 2nd Display)
I/O on Base
I/O on Base
  • 2 x External RJ45 (COM3, COM4)
  • 4 x USB 2.0 Type A
  • 1 x USB DP (2nd Display)
  • 1 x RJ11 (12V / 24V) Supports 2 Cash Drawers
  • 1 x RJ45 LAN
  • 1 x 20V DC-in
Certification
Certification
  • FCC Class B / CE
OS
OS
  • Windows 10 Pro, Windows 10 IoT Enterprise
Appearance
Appearance
  • Aluminum Die-casting + Plastic
  • Galaxy Grey or Silver
Dimension
Dimension
  • Product: 380.5 x 330 x 231.74 mm
  • Carton: 492 x 168 x 488 mm
