01

Checking and Monitoring

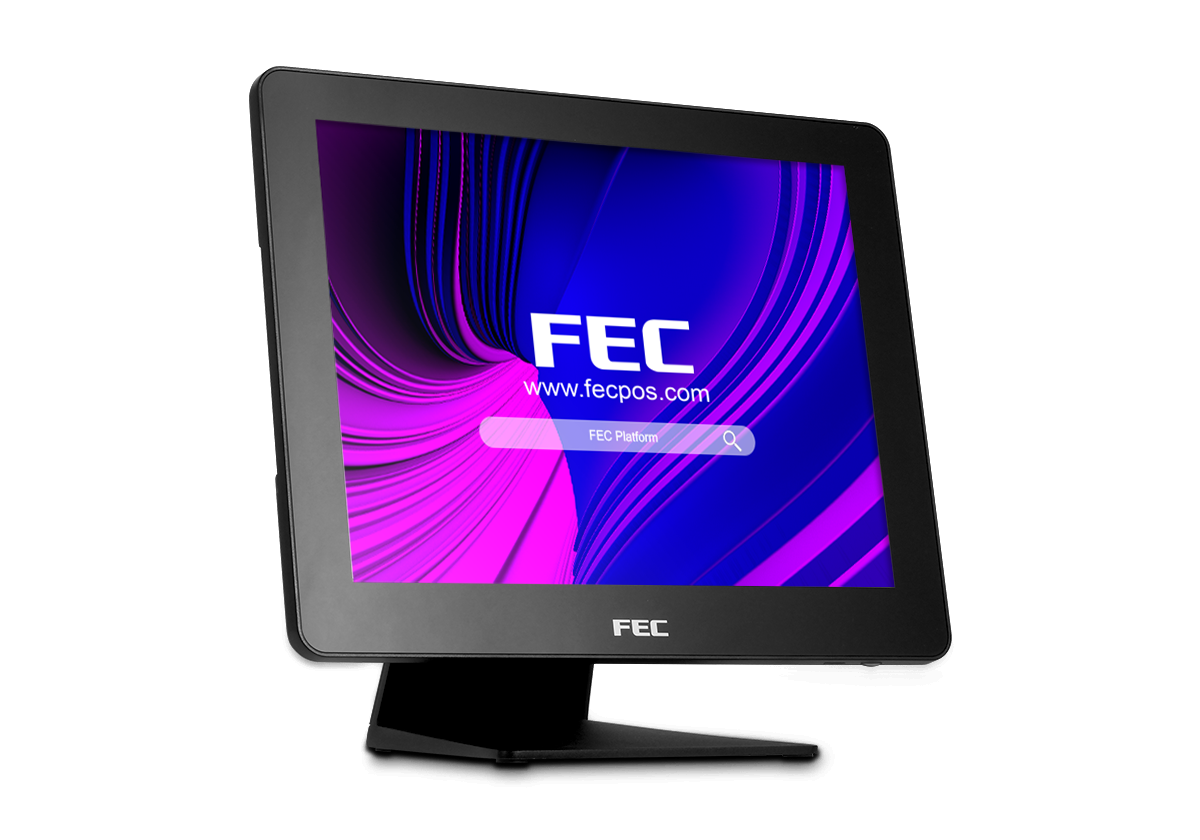

PP-1135 is a panel PC can use as standalone or mounting in the kitchen.

02

Need an extra hand?

Let our wall-mount solution be your virtual assistant so you can focus on serving your customer.

03

Reinvent Your Workflow Efficiency

Our waterproof and industrial grade front panel allows you to seamlessly integrate your POS system closer to the work space than ever before.

04

FEC ANDROID

FEC provides a complete series of Android POS. From 10" to 22" in for lightweight usage, wall-mount as digital display or with stand for different types of POS terminals.

proimages/Web_Data/product/05-Panel_PC/PP-9135W/PP-9135W_fea_family.png

Specifications

CPU
CPU
  • Rockchip RK-3568 Quad-core Cortex-A55 up to 2.0GHz
Memory
Memory
  • 4GB DDR3 On Board
Storage
Storage
  • 64GB Built-in eMMC
Connection
Connection
  • WIFI 802.11 ac & BT 4.2 (Optional)
Speaker
Speaker
  • 2 x 2W Internal Speaker
Display
Display
  • 15" TFT, 1024 x 768
Touch
Touch
  • True-Flat PCAP
Brightness
Brightness
  • 350 nits
MTBF
MTBF
  • 50K Hours
Camera
Camera
  • 2MP Front Camera (Optional)
Power
Power
  • 20V / 90W or 20V / 130W External Adapter
OS
OS
  • Android 12
Mounting
Mounting
  • VESA 100 x 100 mm
Certification
Certification
  • FCC / CE Class B
Appearance
Appearance
  • Aluminum Die-casting + Plastic
  • Black
Temperature
Temperature
  • Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)
  • Storage: -20˚C ~ 60˚C (-4˚F ~ 140˚F)
Dimensions (W x H x D)
Dimensions (W x H x D)
  • Product: 366 x 335 x 187 mm
  • Carton: 477 x 448 x 307 mm
Weight
Weight
  • Net: 4.9 Kg
  • Gross: 8 Kg
Port
Port
  • 1 x 20V DC Input
  • 1x RJ45 Gigabit LAN
  • 1x Video Port
  • 1x RJ11 Cash Drawer (12V or 24V)
  • 1 x SD/TF Card Slot (Max: 128GB)
  • 1x Recovery button
  • 2 x USB 2.0, 1 x USB 3.0, 1 x USB 3.0 (OTG)
  • 2x RJ45 (COM1, COM2) RS232 (RI/5V/12V)
  • 1 x 12V DC Output
  • Side I/O Interface:
  • 1 x USB 2.0
Optional
Optional
  • Type A: 2 x DB9 (COM3 & COM4) RS232 with 0V / 5V / 12V
  • Type B: 1 x PUSB 24V (power adapter request 20V / 130W)
  • Type C: 2 x USB 2.0
