KP-9155W

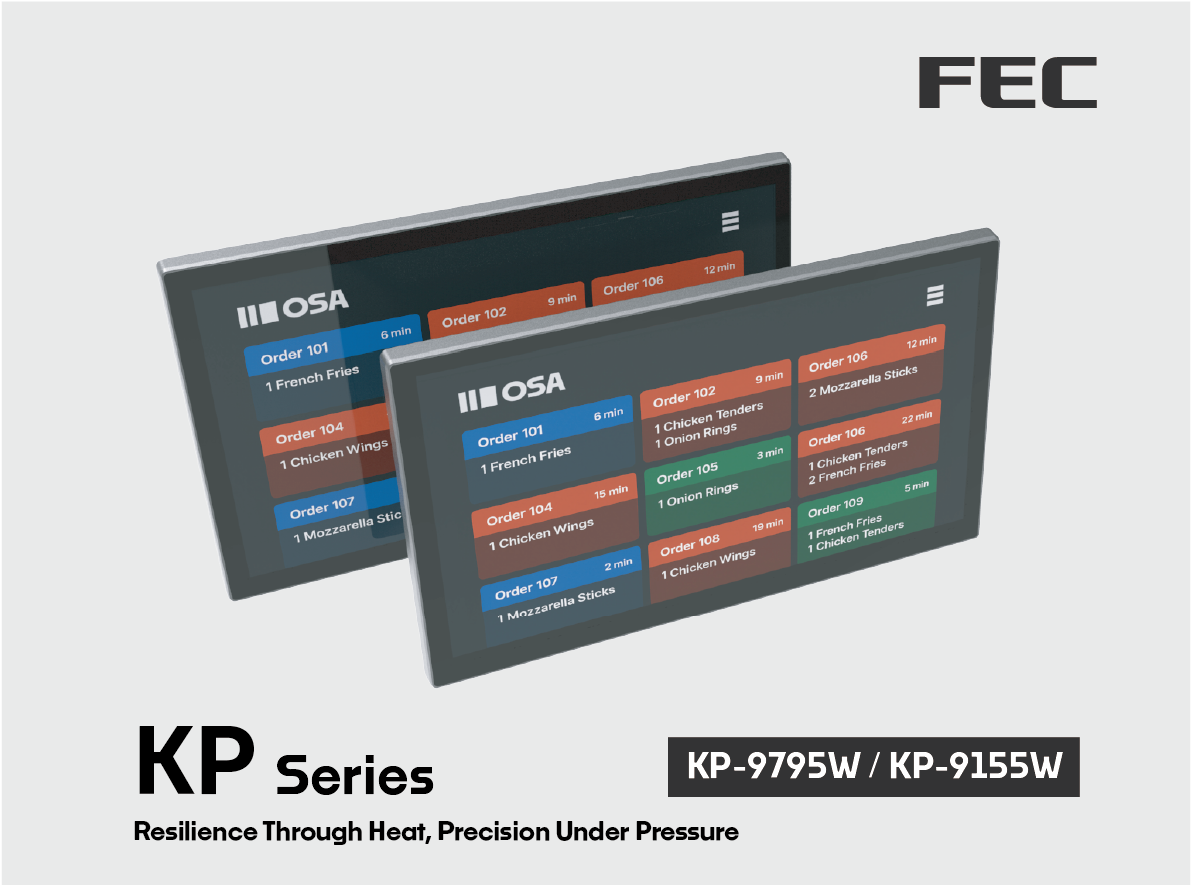

    Resilience Through Heat, Precision Under Pressure
    Compare
    Inquiry

    Quick find
    proimages/Web_Data/product/11-KP/LNEW/15U.pngproimages/Web_Data/product/11-KP/LNEW/15D.png


    Specification.

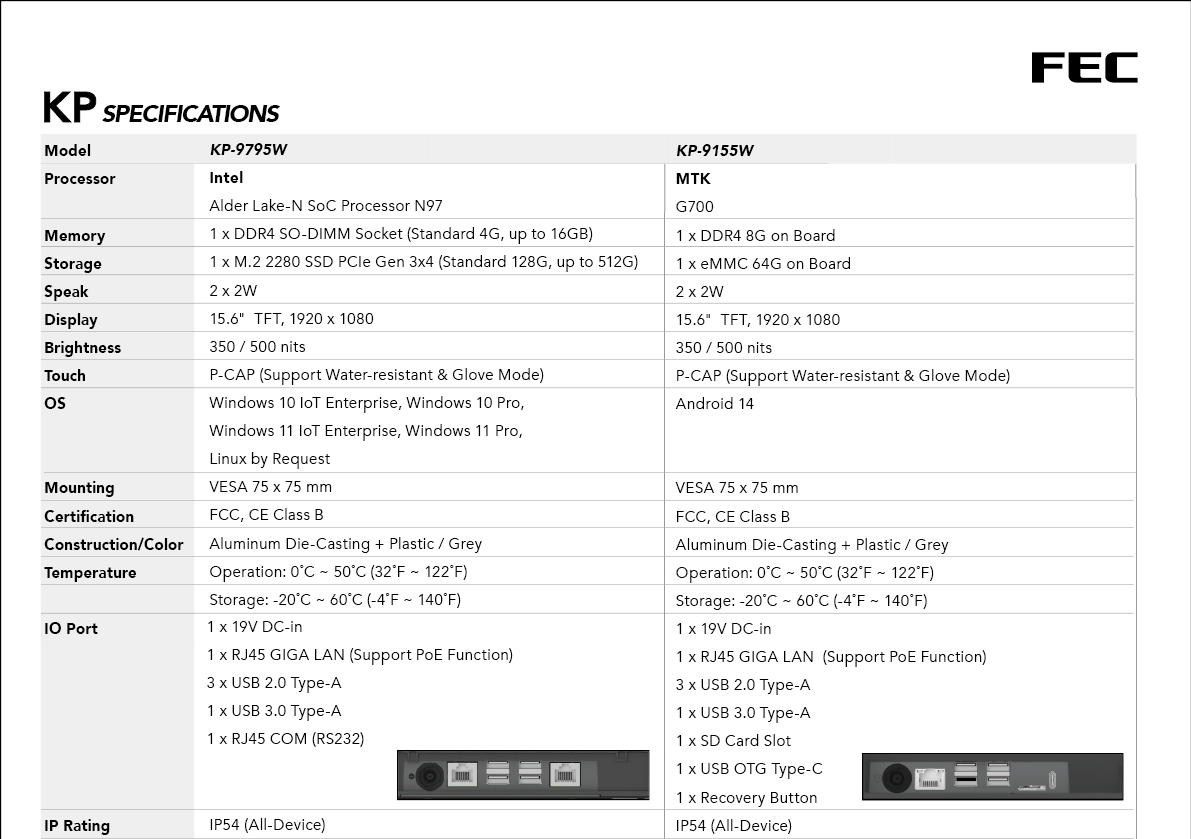

    KP Series KP-9795W / KP-9155W
    FEC
    PlatformWindowsAndroid
    Model
    KP-9795W
    15.6 "
    KP-9155W
    15.6 "
    System
    Processor Intel N97 / N150 / Core 3 N35501 MTK G700
    Memory 1 x DDR4 SO-DIMM Socket (Standard 4G, up to 16GB)02 1 x DDR4 8G on Board
    Storage 1 x M.2 2280 SSD PCIe Gen 3x4 (Standard 128G, up to 512G)03 1 x eMMC 64G on Board03
    Operating System Windows 10 IoT Enterprise / Windows 10 Pro / Windows 11 IoT Enterprise / Windows 11 Pro / Linux by Request04 Android 14
    Display
    Display 15.6" TFT, 1920 x 1080
    Brightness 350 / 500 nits
    Touch P-CAP (Support Water-resistant & Glove Mode)
    Audio
    Speaker 2 x 2W
    Connectivity
    Wi-Fi Wi-Fi Module (Internal)
    External I/O
    External I/O 1 x 19V DC-in1 x RJ45 GIGA LAN (Support PoE Function)3 x USB 2.0 Type-A1 x USB 3.0 Type-A1 x RJ45 COM (RS232) 1 x 19V DC-in1 x RJ45 GIGA LAN (Support PoE Function)3 x USB 2.0 Type-A1 x USB 3.0 Type-A1 x SD Card Slot1 x USB OTG Type-C1 x Recovery Button
    Add-on device
    (Optional)    		 ScannerRFIDLED BarCamera
    Power
    Power 19V / 65W Adapter
    Mechanical
    Mounting VESA 75 x 75 mm
    Construction Aluminum Die-Casting + Plastic
    Color Grey
    Environmental
    Operation Temperature 0°C - 50°C / 32 to 122 °F
    Storage Temperature -20°C - 60°C / -4 to 140 °F
    Compliance
    Certifications FCC, CE Class B
    Ingress Protection (IP Rating) IP54 (All-Device)
    Shipping

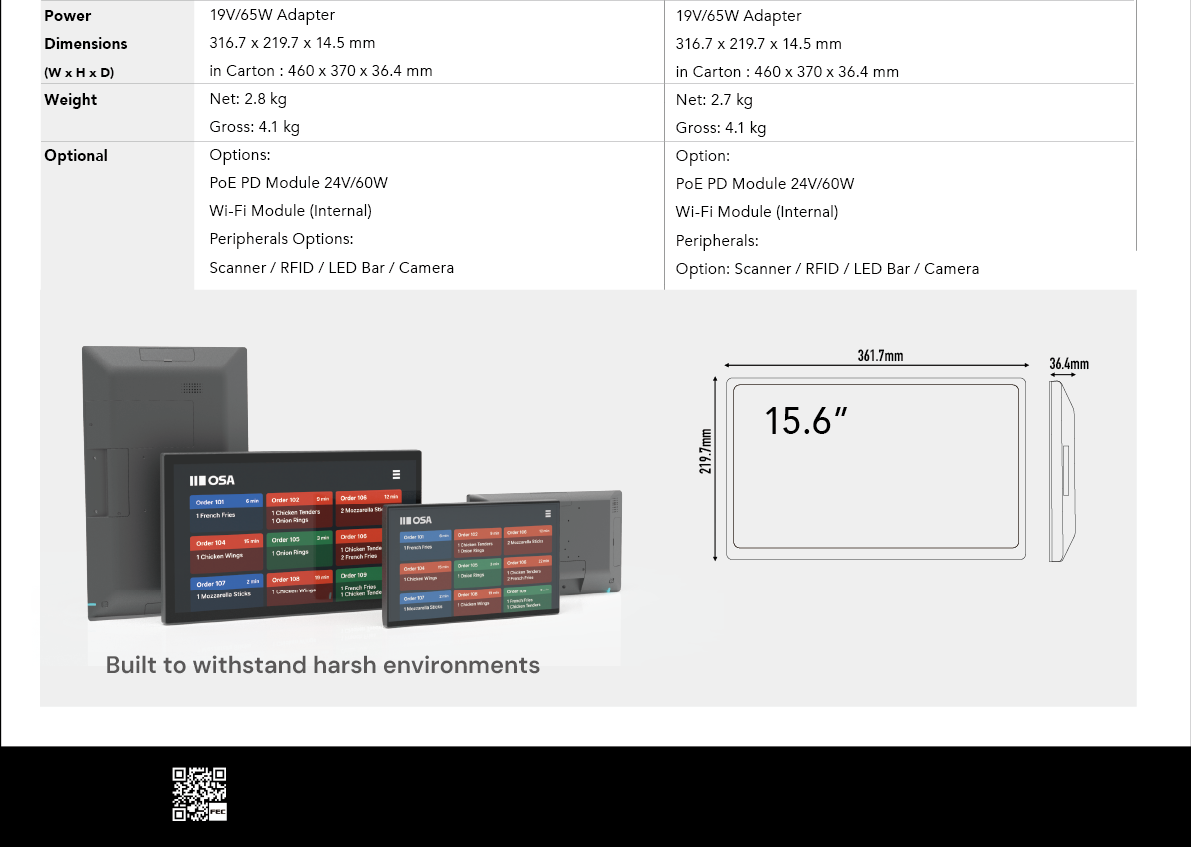

    Dimension 361.7 x 219.7 x 14.5 mm14.24 x 8.65 x 0.57 in
    Net Weight 2.8 kg / 6.17 lb 2.7 kg / 5.95 lb
    Carton Subject to packaging configuration.
    Gross Weight Subject to packaging configuration.
    FEC campaign visual

    Packaging Dimensions / Packaging Weight:Packaging dimensions and weight are approximate and may vary depending on packaging configuration,production batch, and shipping requirements.

    Specifications are subject to change without notice.

    note
    01 Performance, thermal behavior, and power consumption may vary by CPU configuration.
    02 Memory capacity and supported configurations may vary by model and project requirements.
    03 Storage capacity is defined as 1 GB = 10⁹ bytes and 1 TB = 10¹² bytes. Actual formatted capacity will be less.
    04 Supported operating systems are limited to the versions listed above. Other operating systems are not validated.
