XP-3682W
Product Introduction
01

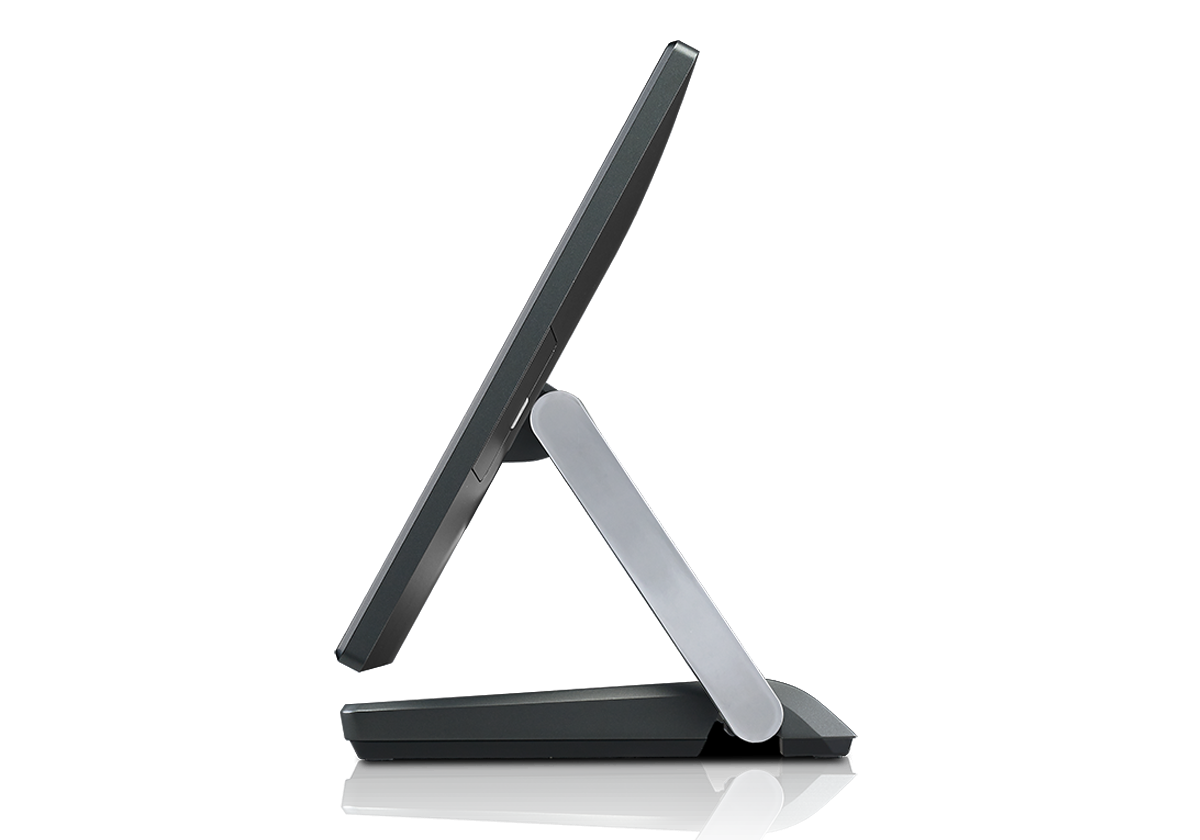

Flexible
High / Low Profile
02
Extendable
Dock the second display on the system or extend the display out on a flat surface.
03
Slim
04
Suitable for multiple applications
Specifications
CPU
- Intel® Celeron® 3965U 2M Cache, 2.20 GHz
- Intel Core™ i3 7100U 3M Cache, 2.40 GHz
- Intel Core™ i5 7300U 3M Cache, up to 3.50 GHz
Memory
- 4GB Standard, Max 32GB (2 x So-DIMM DDR4)
Storage
- 2 x M.2 M Key (SATA III or PCIe)
- *(Celeron® Supports Only One PCIe Storage Device )
Connection
- 2 x M.2 E Key 802.11ac + BT (Optional)
Speaker
- 2 x 2W Internal Speaker
Display
- 21.5" TFT, 1920 x 1080
Touch
- True-Flat PCAP
Brightness/MTBF
- 250 nits
MTBF
- 50K Hours
Camera
- 2MP Front Camera (Optional)
Power
- 20V / 90W or 20V / 130W External Adapter
OS
- Windows 10 Pro
- Windows 10 IoT Enterprise
Mounting
- VESA 100 x 100 mm
Certification
- FCC / CE Class B
Appearance
- Aluminum Die-Casting + Plastic
- Galaxy Grey
Temperature
- Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)
- Storage: -20˚C ~ 60˚C (-4˚F ~ 130˚F)
Dimensions (W x H x D)
- Product: 513 x 380 x 231.75 mm
- Carton: 652 x 463 x 212 mm
Weight
- Net: 7.2 Kg
- Gross: 8.9 Kg
Port
- 1 x USB 3.0 Type A
- 1 x USB 2.0 Type A (Reserved for Add-On)
- 1 x USB DP (Reserved for 2nd Display)
- 1 x Smart DP ( Reserved for Customer Display or 2nd Display)
Optional
- 2 x RJ45 (COM3, COM4) RS232
- 4 x USB 2.0 Type A
- 1 x USB DP (2nd Display)
- 1 x RJ11 (12V / 24V)
- 1 x RJ45 LAN
- 1 x 20V DC-in
I/O on Base
- 2 x RJ45 (COM3, COM4) RS232
- 4 x USB 2.0 Type A
- 1 x USB DP (2nd Display)
- 1 x RJ11 (12V / 24V)
- 1 x RJ45 LAN
- 1 x 20V DC-in
