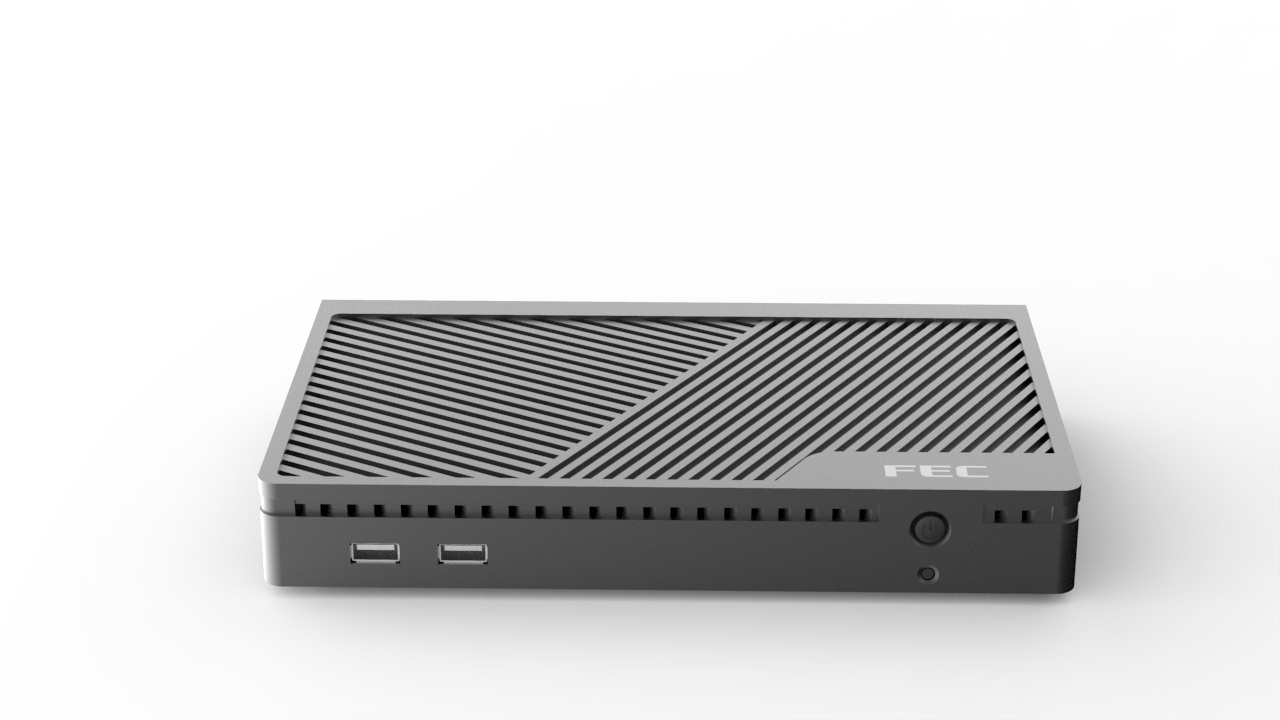

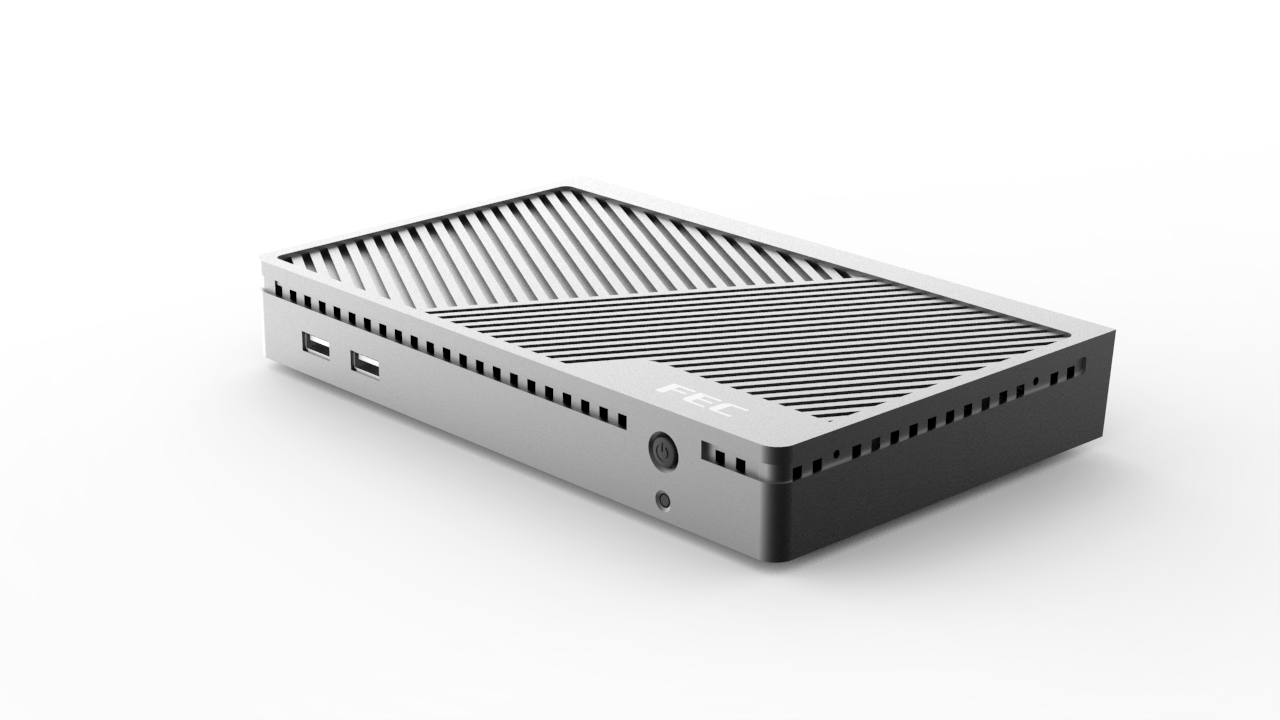

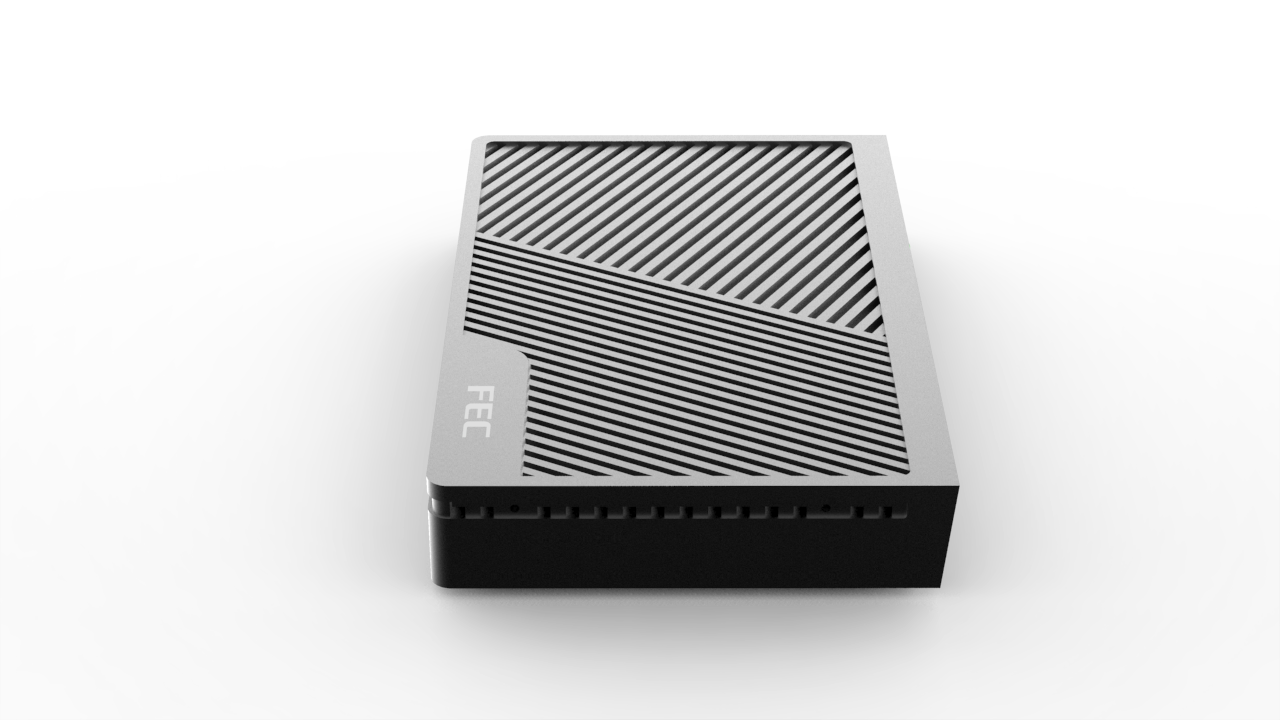

XC-373
Product Introduction
01
Small, But Unlimited.
02

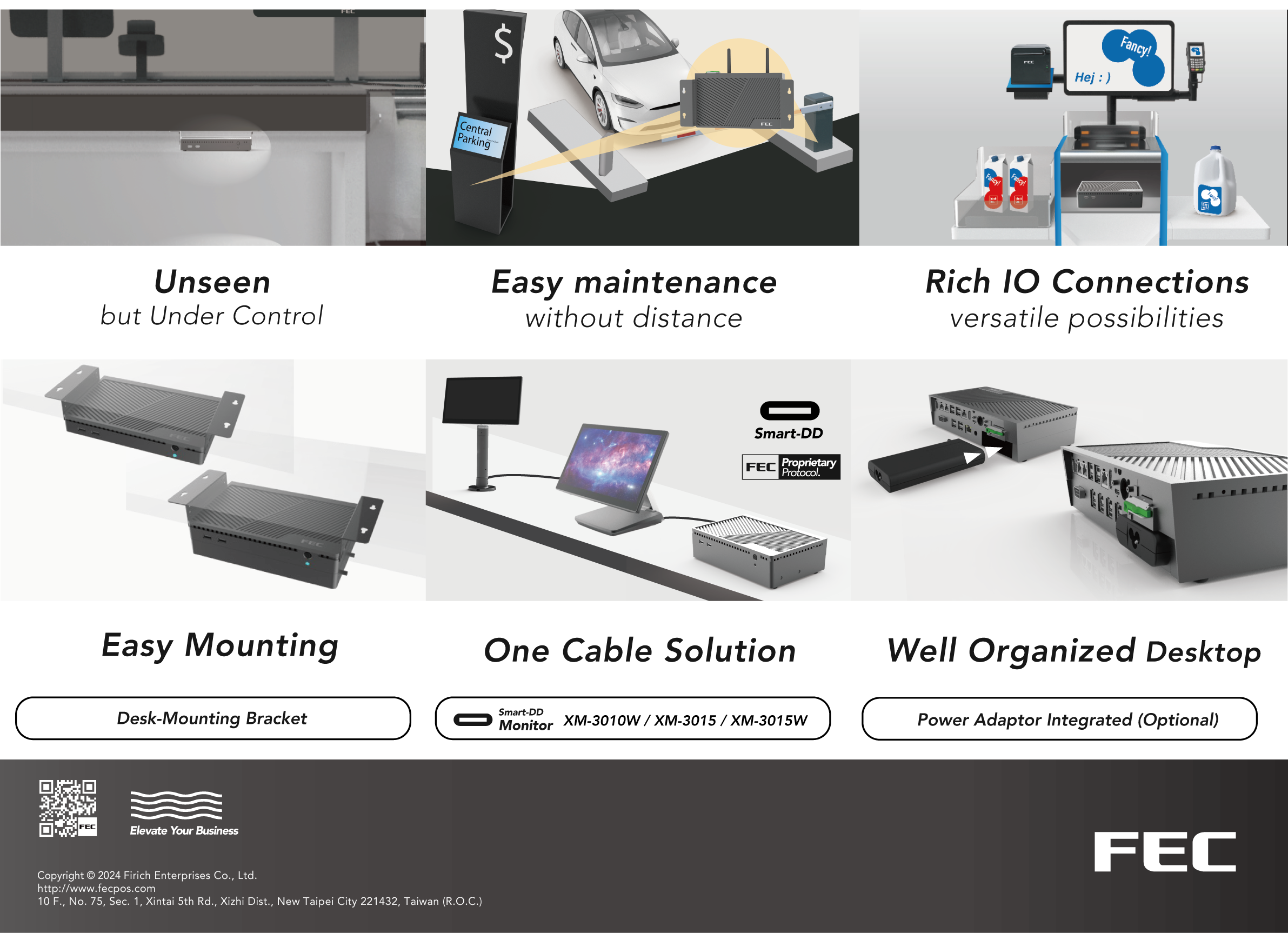

Unseen,But Under Control!
03
Remote Update!
04
Quiet, But Powerful.
05
Center Control,Easy to Maintain!
06
Daisy Chain for a better dentist experience.
07
Optimizing Your Space!

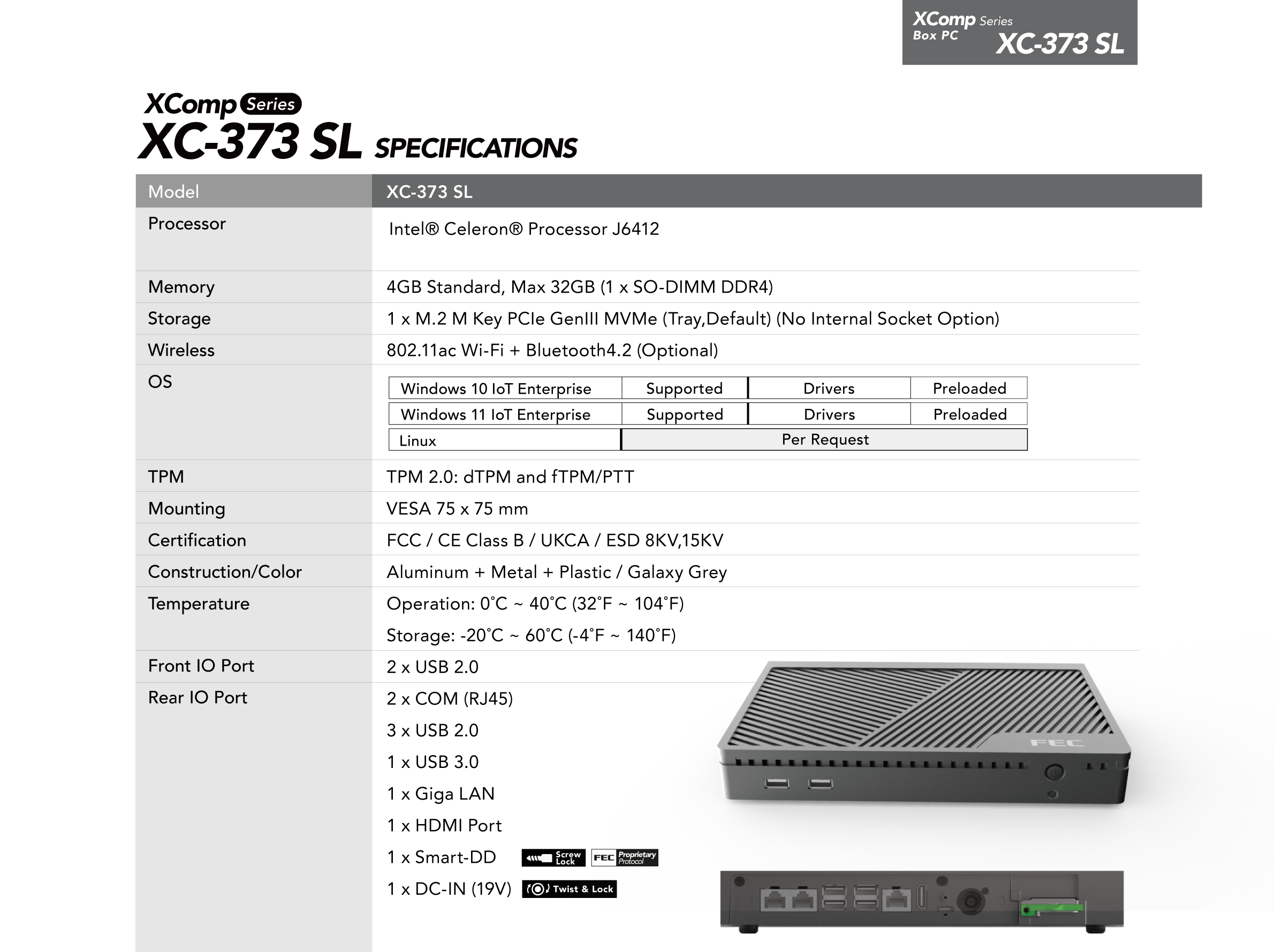

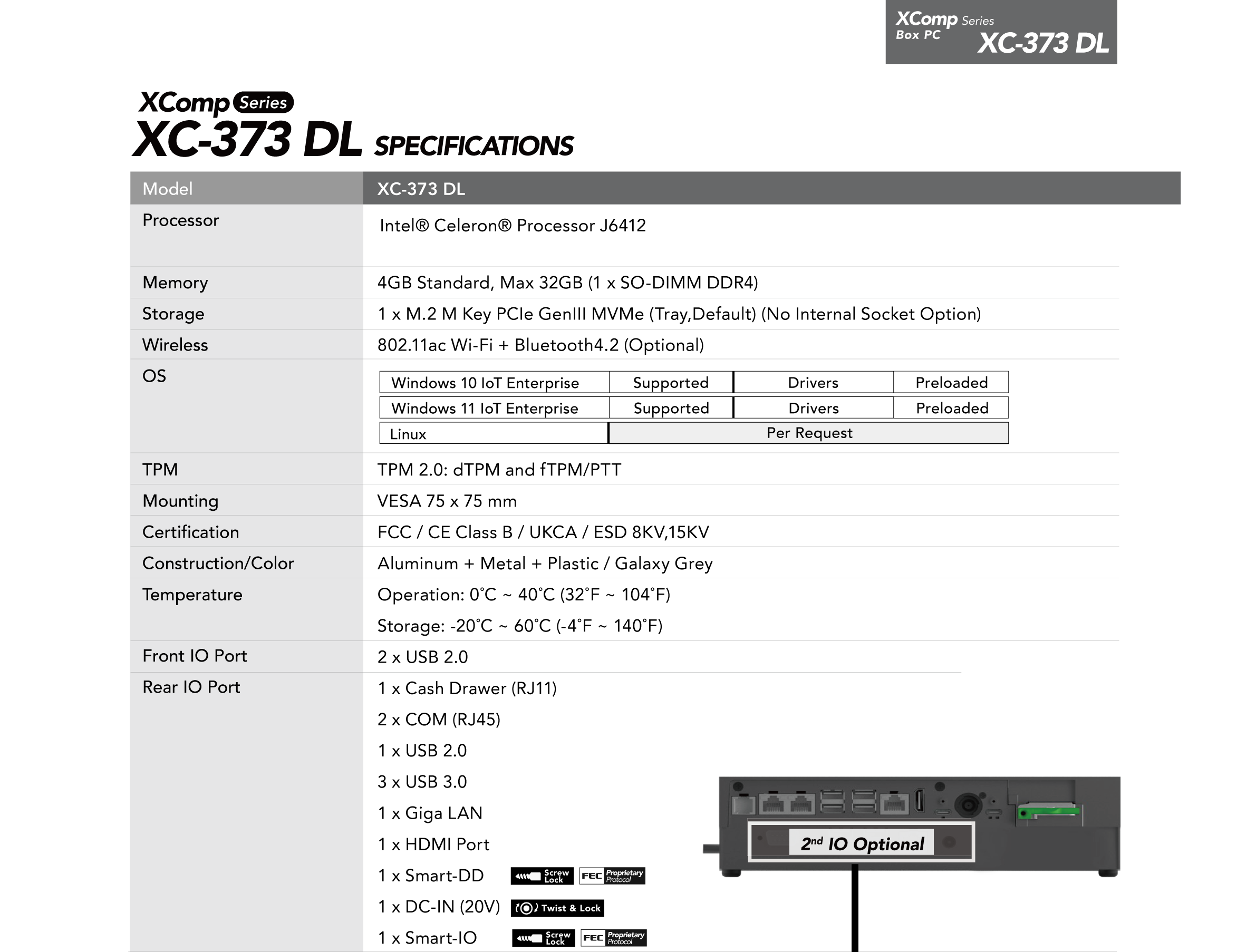

Specifications
CPU
- Intel® Celeron® Processor J6412 (1.5M Cache, up to 2.60 GHz)
Memory
- 4GB Standard, Max 32GB (1 x SO-DIMM DDR4)
Storage
- 1 x M.2 M Key (PCIe) Gen3
Connection
- 802.11ac Wi-Fi + Bluetooth4.2 (Optional)
Power
- XC-373 SL
- 19V/65W External Adapter
- XC-373 DL
- 20V/90W External Adapter
- (Optional 2nd IO - 2 requires 20V/130W External Adapter)
OS
- Windows 10 Enterprise
- Windows 11 Enterprise
- Linux (Per Requst)
TPM
- TPM 2.0: dTPM and fTPM
Mounting
- VESA 75 x 75 mm
Certification
- FCC / CE Class B
Construction/Color
- Aluminum + Metal / Galaxy Grey
Temperature
- Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)
- Storage: -20˚C ~ 60˚C (-4˚F ~ 140˚F)

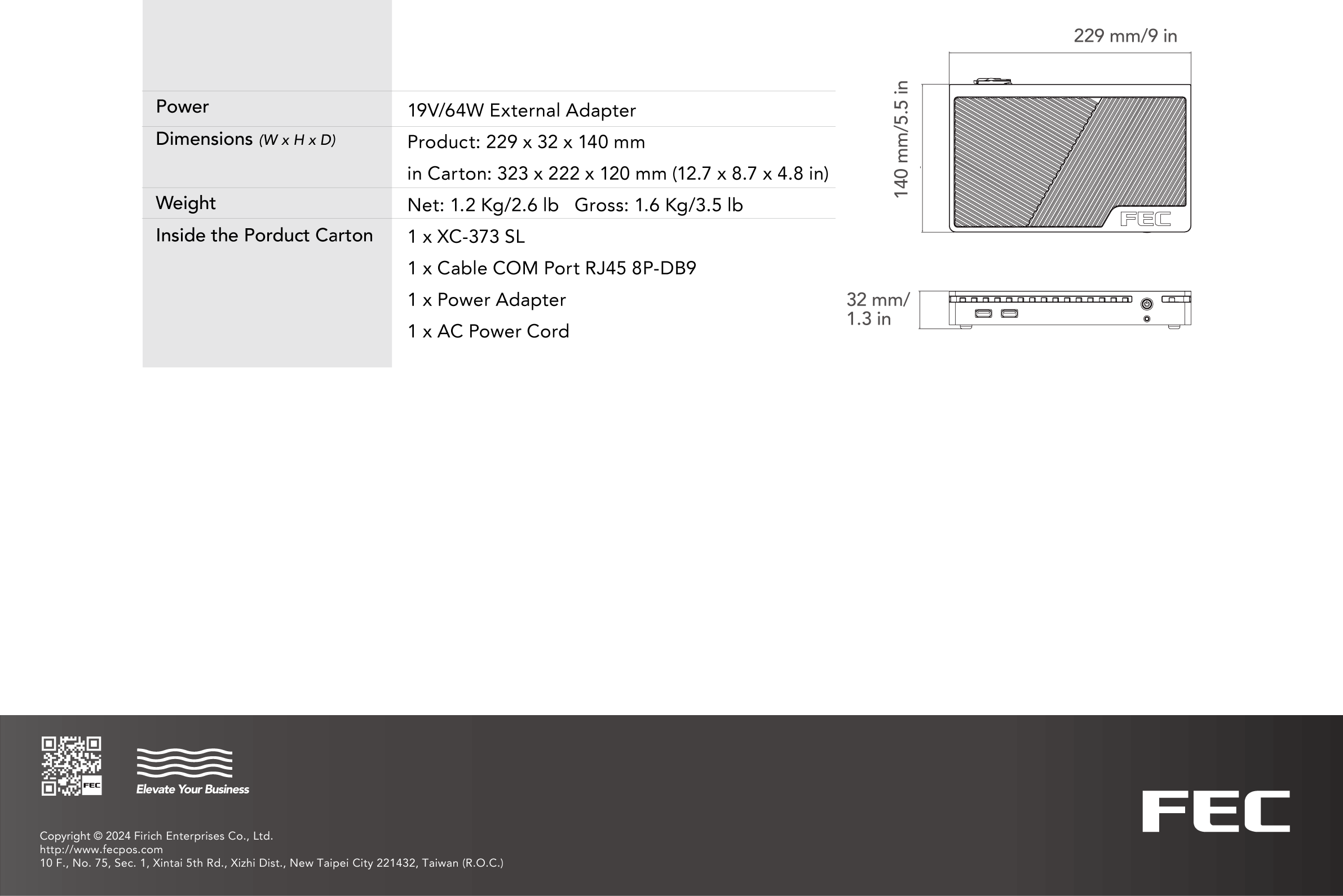

Dimensions (W x H x D)
- XC-373 SL
Product: 229 x 32 x 140 mm
inCarton: 312 x 217 x 117 mm - XC-373 DL
Product: 229 x 59 x 140 mm
inCarton: 321 x 217 x 159 mm
Weight
- XC-373 SL
Net: 1.2 Kg
Gross: 1.6 Kg - XC-373 DL
Net: 1.6 Kg
Gross: 2.1 Kg

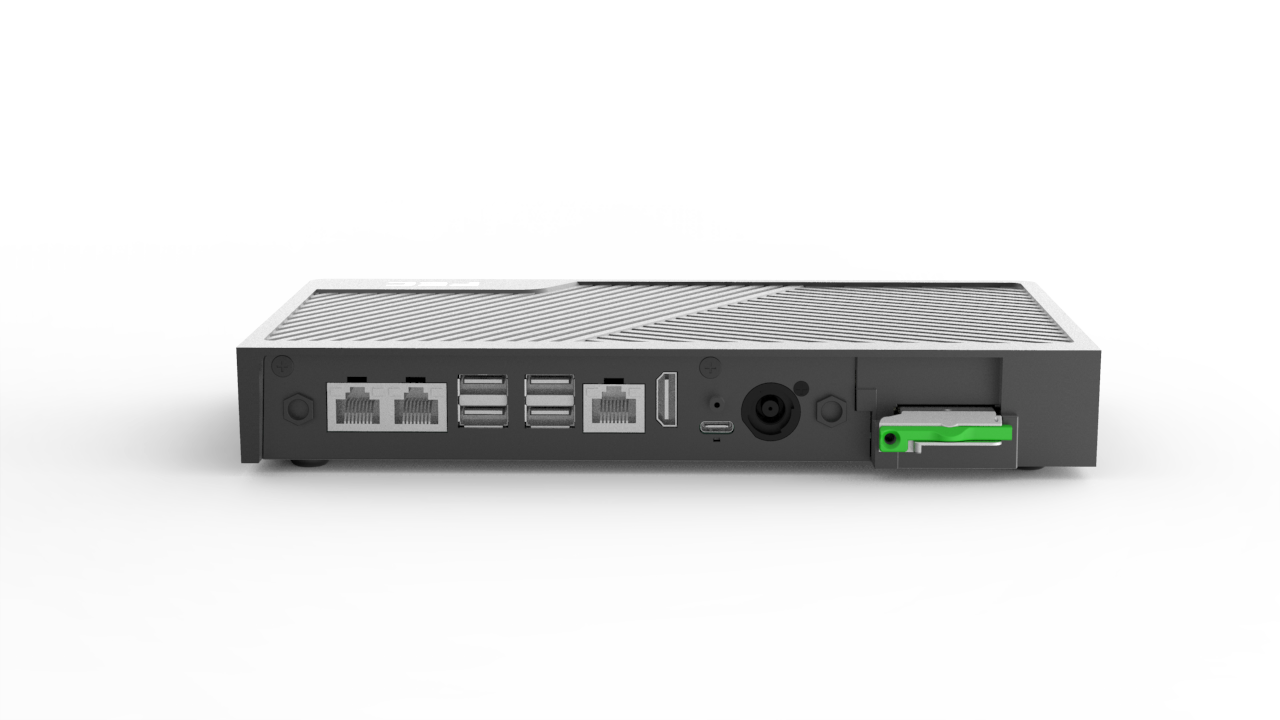

Rear IO Port
- XC-373 SL:
- 2 x COM (RJ45)
- 3 x USB 2.0
- 1 x USB 3.0
- 1 x Giga LAN (RJ45)
- 1 x HDMI Port
- 1 x Smart-DD
- 1 x DC-In (19V)
- XC-373 DL:
- 1 x Cash Drawer(RJ11)
- 2 x COM(RJ45)
- 3 x USB 2.0
- 1 x USB 3.0
- 1 x Giga LAN(RJ45)
- 1 x HDMI
- 1 x Smart-DD
- 1 x DC-in (XC-373 SL19V / XC-373 DL:20V)
- 1 x Smart-IO
Front IO Port
- USB 2.0 x 2

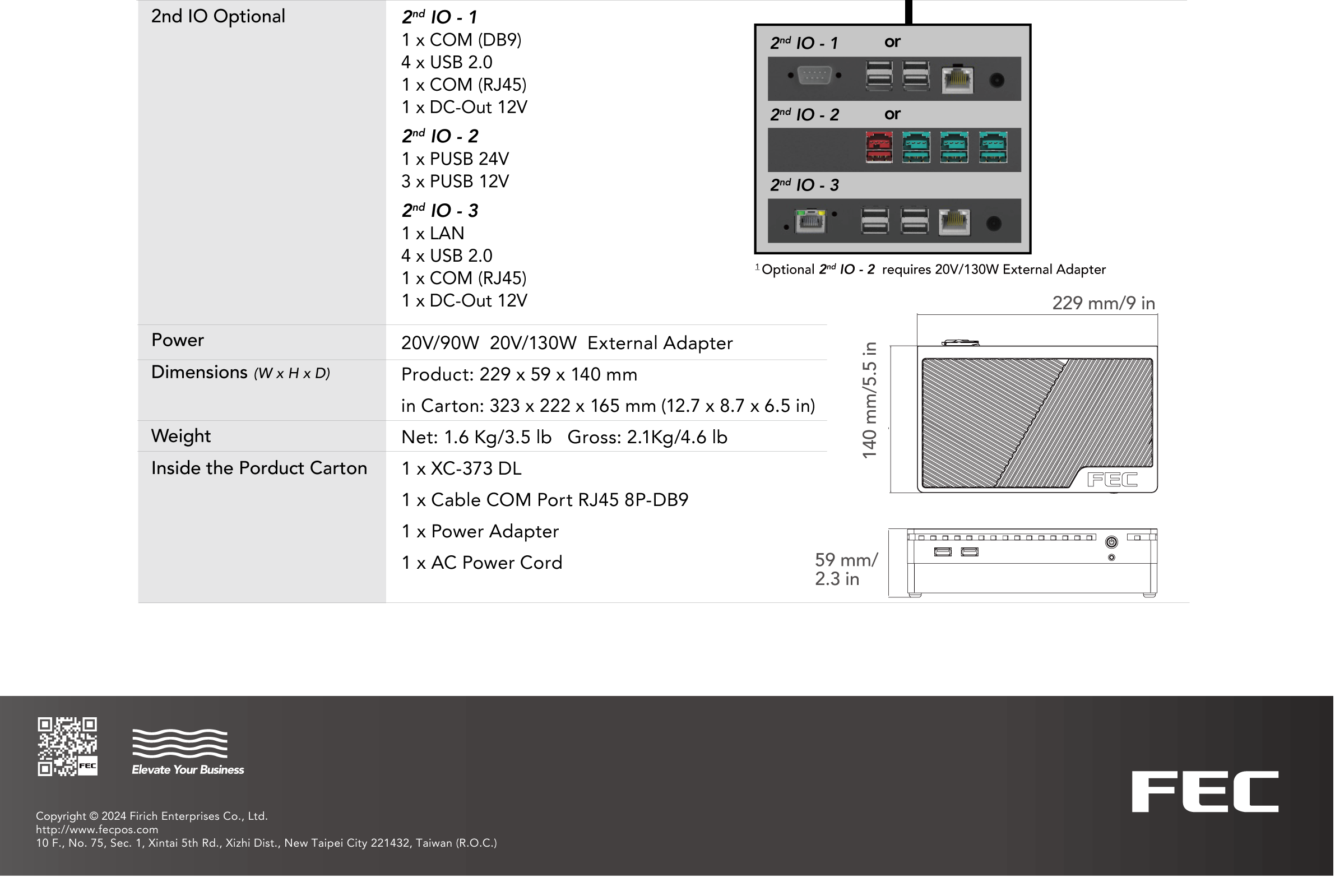

Optional
- XC-373 DL-Only
- 2nd I/O-1:
2 x COM (DB9, RJ45)
4 x USB 2.0
1 x DC-Out 12V - 2nd I/O-2:
1 x PUSB 24V
3 x PUSB 12V - 2nd I/O-3:
1 x LAN (RJ45)
1 x COM (RJ45)
4 x USB 2.0
1 x DC-Out 12V
