01

The artwork of the next generation

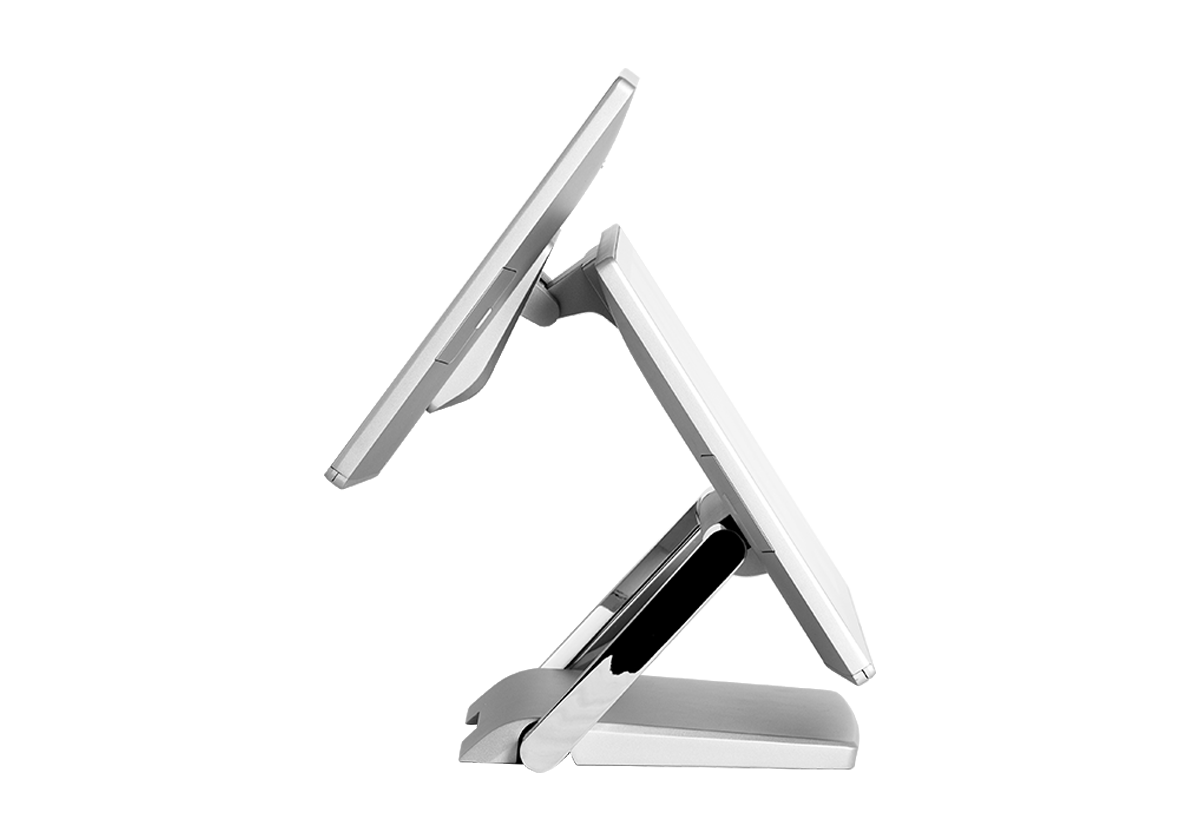

The flexible base for XPOS can be adjusted from 65 degree down to 15 degree and the display can be tilted 180 degree. Adjust your desired angle to enjoy its exquisite design.

02

Various Screen Size & Resolution

  • Display 15"+8"
  • Main Screen: 15" TFT LCD
    1024x768
  • Customer Screen: 8" TFT LCD
    1024x600
  • Display 15"+10"
  • Main Screen: 15" TFT LCD
    1024x768
  • Customer Screen: 10" TFT LCD
    1280x800
  • Display 15"+15.6"
  • Main Screen: 15" TFT LCD
    1024x768
  • Customer Screen: 15.6" TFT LCD
    1920x1080
  • Display 15"+15"
  • Main Screen: 15" TFT LCD
    1024x768
  • Customer Screen: 15" TFT LCD
    1024x768
03

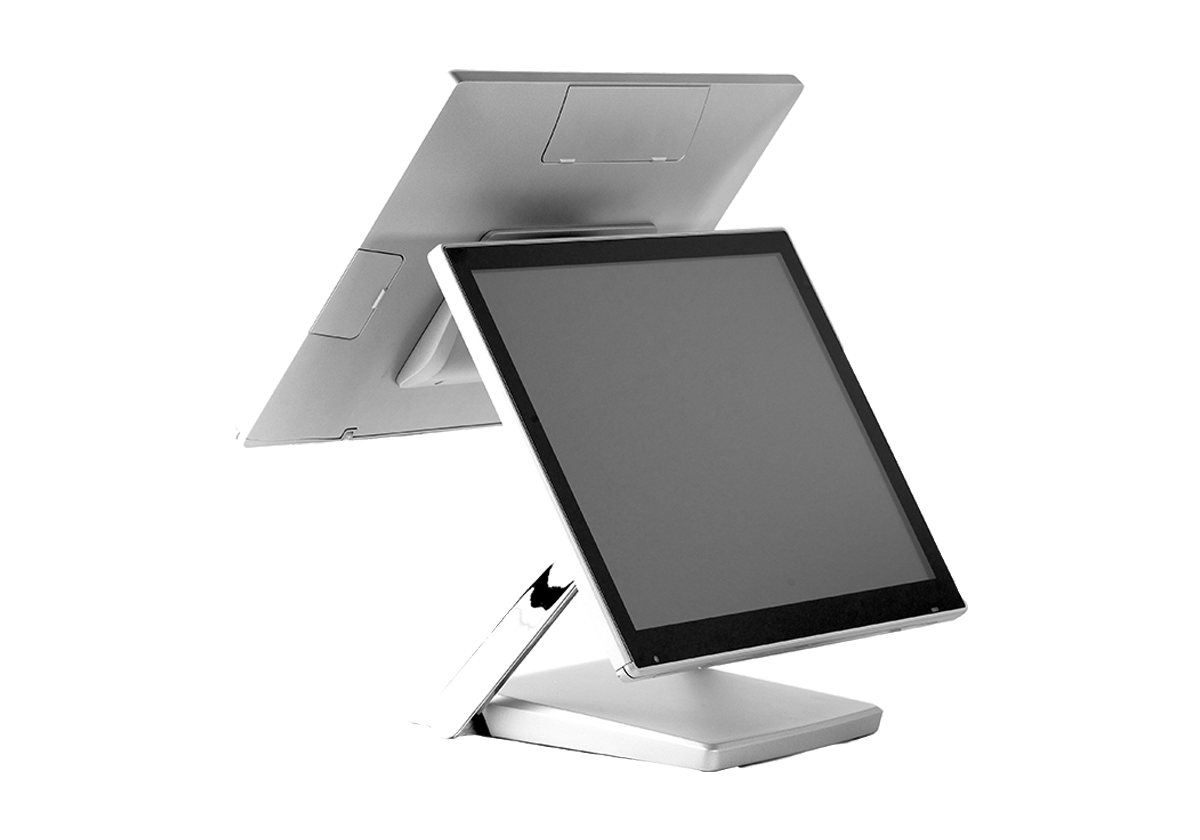

Easy Docking Display

Optional LCM. 8in, 10in, 15in, or 15.6 in customer display can be docking on the top of the XPOS to present key transactional information or more.

Specifications

Display
Display
  • 15” TFT , 1024 x 768
Touch
Touch
  • Non-Touch (Available for USB DP or FEC DP)
  • True-Flat PCAP (Available for USB DP)
Brightness
Brightness
  • 400 nits
MTBF
MTBF
  • 50K Hours
Speaker
Speaker
  • 4ohm 2W (Available for USB DP)
Power
Power
  • 12V DC (Power From USB DP)
Mounting
Mounting
  • Docking (Available For USB DP or FEC DP)
  • Extended (Available For USB DP)
  • VESA 100 x 100 mm
Certification
Certification
  • FCC / CE Class B
Appearance
Appearance
  • Aluminum Die-casting + Plastic
  • Galaxy Grey
  • Silver
Temperature
Temperature
  • Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)
  • Storage: -20˚C ~ 60˚C (-4˚F ~ 130˚F)
Dimensions (W x H x D)
Dimensions (W x H x D)
  • Display Only: 273 x 343 x 24 mm
  • Carton: 460 x 350 x 140 mm
Weight
Weight
  • Display Only (Net): 4 Kg
  • Display Only (Gross): 5 Kg
Port
Port
  • 1 x USB DP or FEC DP
