XP-3765

    Compare
    Inquiry

    Quick find
    proimages/product-detail/01-XPOS/XP-3765-1.png

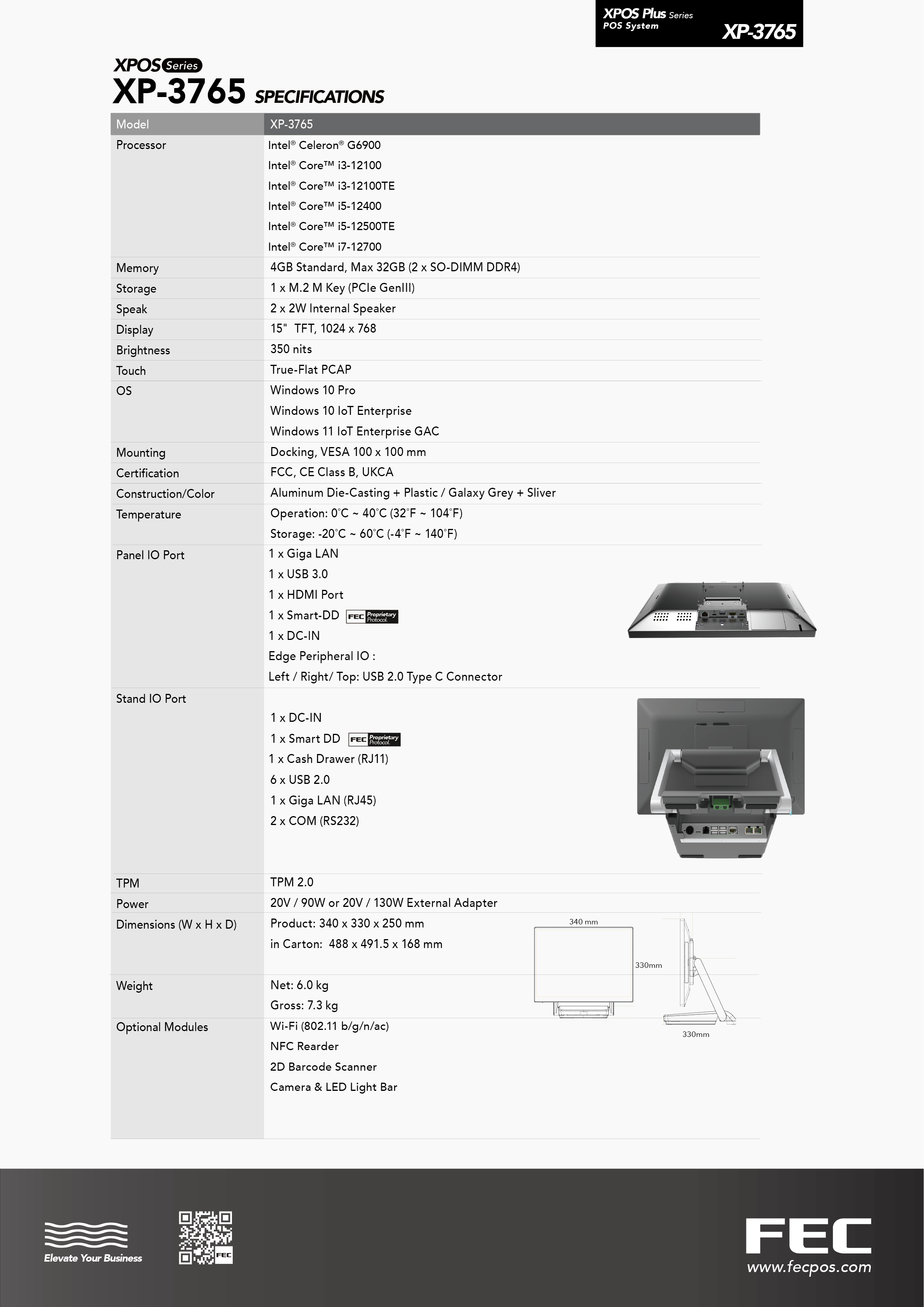

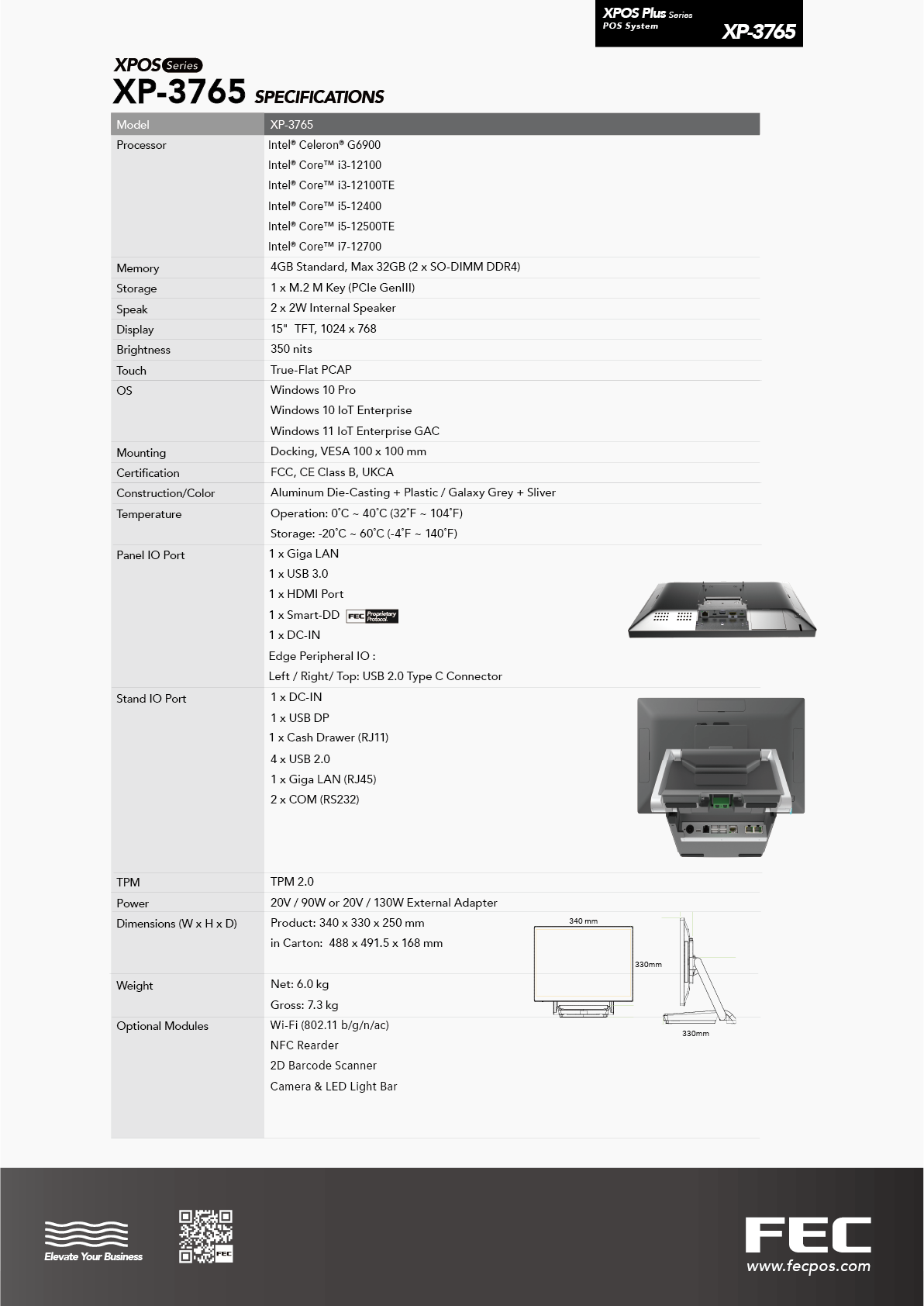

    Specification.
    XPOS PLUS Series XP-3765
    FEC
    PlatformWindows
    Model
    XP-3765
    15 "
    System
    Processor Intel® Celeron® G6900Intel® Core™ i3-12100Intel® Core™ i3-12100TEIntel® Core™ i5-12400Intel® Core™ i5-12500TEIntel® Core™ i7-12700 01
    Memory 4GB Standard, Max 32GB02
    Storage 1 x M.2 M Key (PCIe GenIII)03
    Operating System Windows 10 ProWindows 10 IoT EnterpriseWindows 11 IoT Enterprise GAC 04
    Display
    Display 15" TFT, 1024 x 768
    Brightness 350 nits
    Touch True-Flat PCAP
    Audio
    Speaker 1 x 2W Internal Speaker
    Connectivity
    Wi-Fi Wi-Fi (802.11 b/g/n/ac)05
    Camera Camera & LED Light Bar
    External I/O
    External I/O 1 x Panel IO Port: Giga LANUSB 3.0HDMI PortSmart-DDDC-IN1 x Edge Peripheral IO: Left / Right / Top USB 2.0 Type C Connector1 x Stand IO Port: DC-INUSB DPCash Drawer (RJ11)4 x USB 2.0Giga LAN (RJ45)2 x COM (RS232)
    Add-on device
    (Optional)    		 NFC Reader2D Barcode Scanner
    Power
    Power 20V / 90W or 20V / 130W External Adapter
    Mechanical
    Mounting Docking, VESA 100 x 100 mm
    Construction Aluminum Die-Casting + Plastic
    Color Galaxy Grey + Silver
    Environmental
    Operation Temperature 0°C - 40°C / 32 to 104°F
    Storage Temperature -20°C - 60°C / -4 to 140°F
    Compliance
    Certifications FCC, CE Class B, UKCA
    Shipping
    Dimension 340 x 330 x 250 mm13.39 x 12.99 x 9.84 in
    Net Weight 6 kg13.23 lb
    Carton Subject to packaging configuration.
    Gross Weight Subject to packaging configuration.
    FEC campaign visual

    Packaging Dimensions / Packaging Weight:Packaging dimensions and weight are approximate and may vary depending on packaging configuration,production batch, and shipping requirements.

    Specifications are subject to change without notice.

    note
    01 Performance, thermal behavior, and power consumption may vary by CPU configuration.
    02 2 x SO-DIMM DDR4; max 32GB.
    03 Storage capacity is defined as 1 GB = 10⁹ bytes and 1 TB = 10¹² bytes. Actual formatted capacity will be less.
    04 Supported operating systems are limited to the versions listed above. Other operating systems are not validated.
    05 Optional modules: Wi-Fi (802.11 b/g/n/ac), NFC Reader, 2D Barcode Scanner, Camera & LED Light Bar.
    POS SYSTEM / XPOS PLUS SERIES TPM 2.0.
