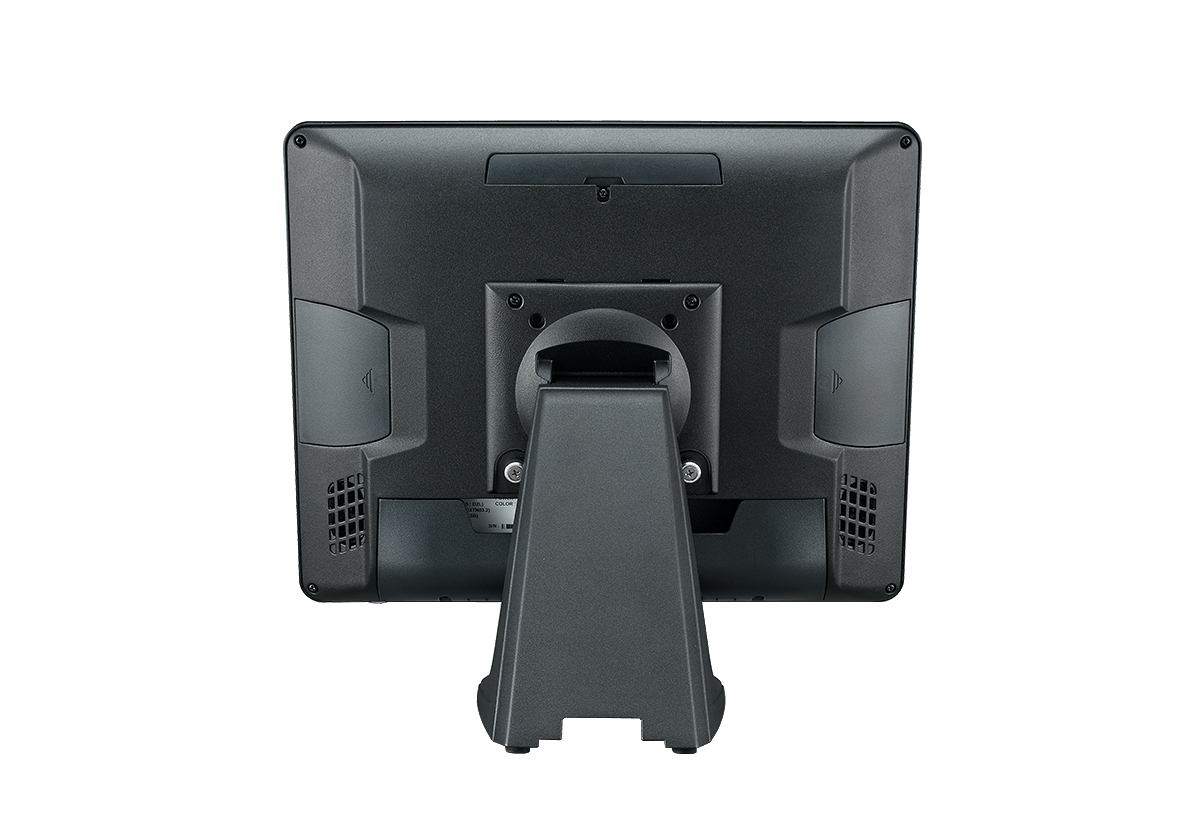

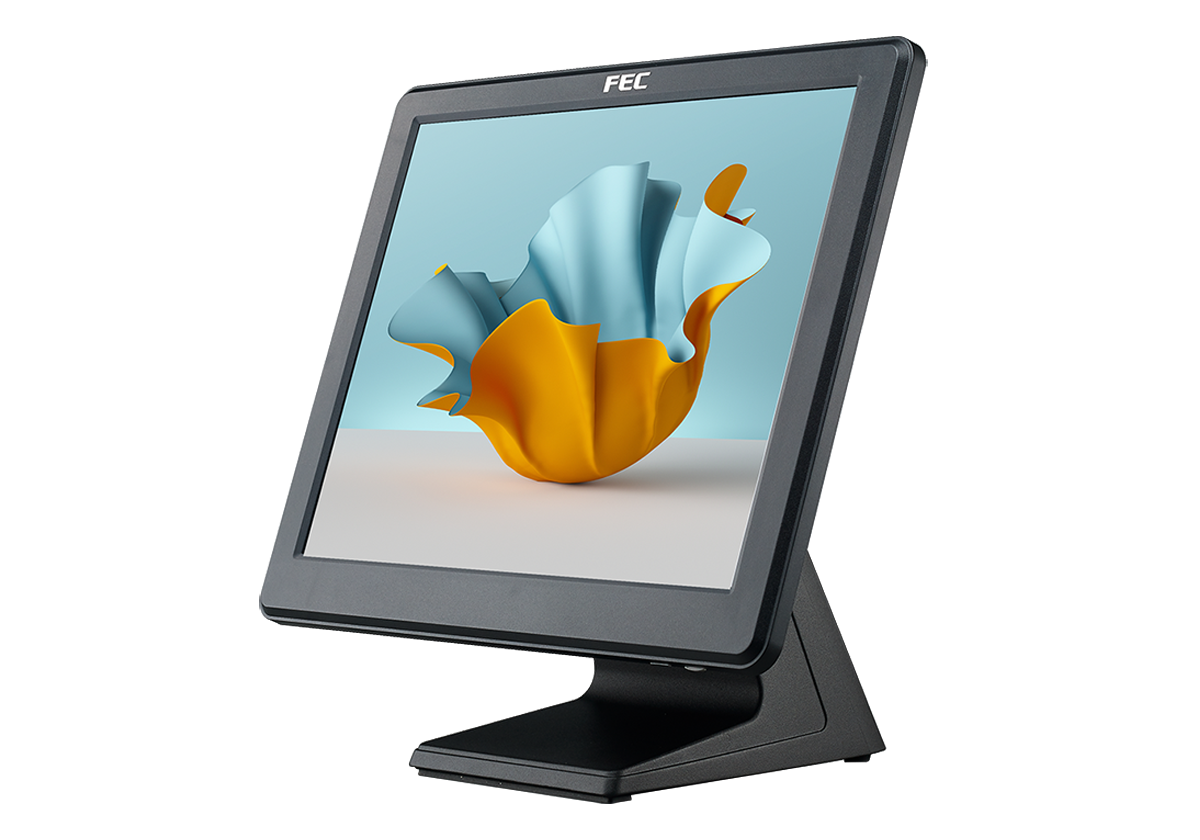

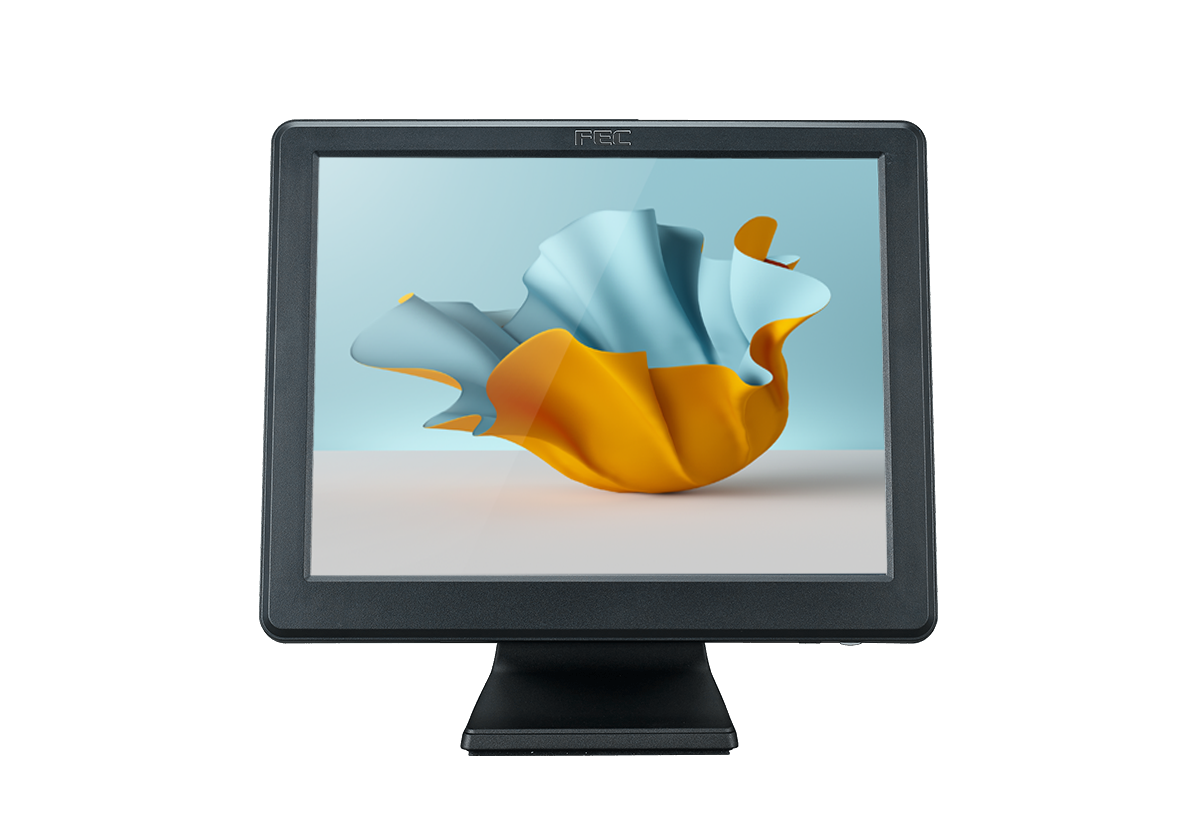

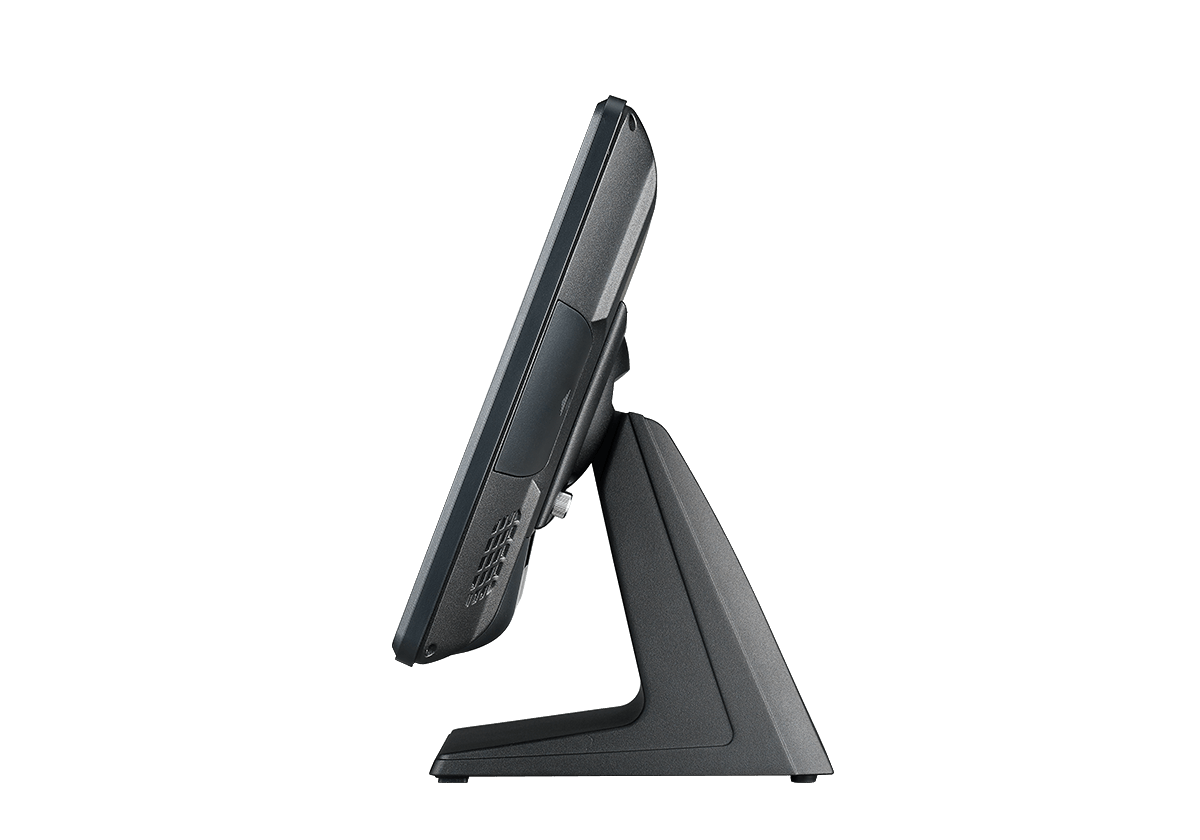

FEC has completely redesigned our newest Panel PCs. AerPPC offers selections of Intel® Celeron®, J1900 processors and features a modular design allowing it to be wall mounted or integrated with a base.


Specifications

CPU
CPU
  • Intel® Celeron J1900 2M Cache, up to 2.42 GHz
Memory
Memory
  • 4GB Standard, Max 8GB (1 x 204-pin DDR3L)
Storage
Storage
  • 1 x 2.5” SATA HDD or SSD
Speaker
Speaker
  • 2 x 2W Internal Speaker
Display
Display
  • 15” TFT, 1024 X 768
Touch
Touch
  • True-Flat PCAP
Brightness
Brightness
  • 350 nits
MTBF
MTBF
  • 50K Hours
Power
Power
  • 12V / 90W External Adapter
  • 12V / 150W External Adapter
OS
OS
  • POSReady 7
  • POSReady 2009
  • Windows 10 Pro
  • Windows 10 IoT Enterprise
Mounting
Mounting
  • VESA 100 x 100 mm
Certification
Certification
  • FCC / CE Class B
Appearance
Appearance
  • Aluminum Die-Casting + Plastic
  • Black with Silver Trim
Temperature
Temperature
  • Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)
  • Storage: -20˚C ~ 60˚C (-4˚F ~ 130˚F)
Dimensions (W x H x D)
Dimensions (W x H x D)
  • Product: 366 x 334 x 220 mm
  • Carton: 480 x 460 x 320 mm
Weight
Weight
  • Net: 4.9 Kg
  • Gross: 8 Kg
Port
Port
  • 1 x PUSB 24V
  • 1 x RJ11 (12V / 24V) Supports Two Cash Drawers
  • 1 x RJ45 (COM1) RS232 with RI / 5V / 12V Selectable
  • 1 x VGA
  • 4 x USB Type A (3 x USB 2.0, 1 x USB 3.0)
  • 1 x RJ45 GigaLAN
  • 1 x 12V DC Output

  • Side I/O Interface:
    1 x USB 2.0 Type A
  • Internal Expansion:
    1 x Mini PCIe
Optional
Optional
  • Type A: 2 x DB9 (COM 2, COM 4) RS232 with RI / 5V / 12V Selectable
  • Type B: 2 x PUSB 12V,
  • Type C: 2 x USB 2.0 Type A
