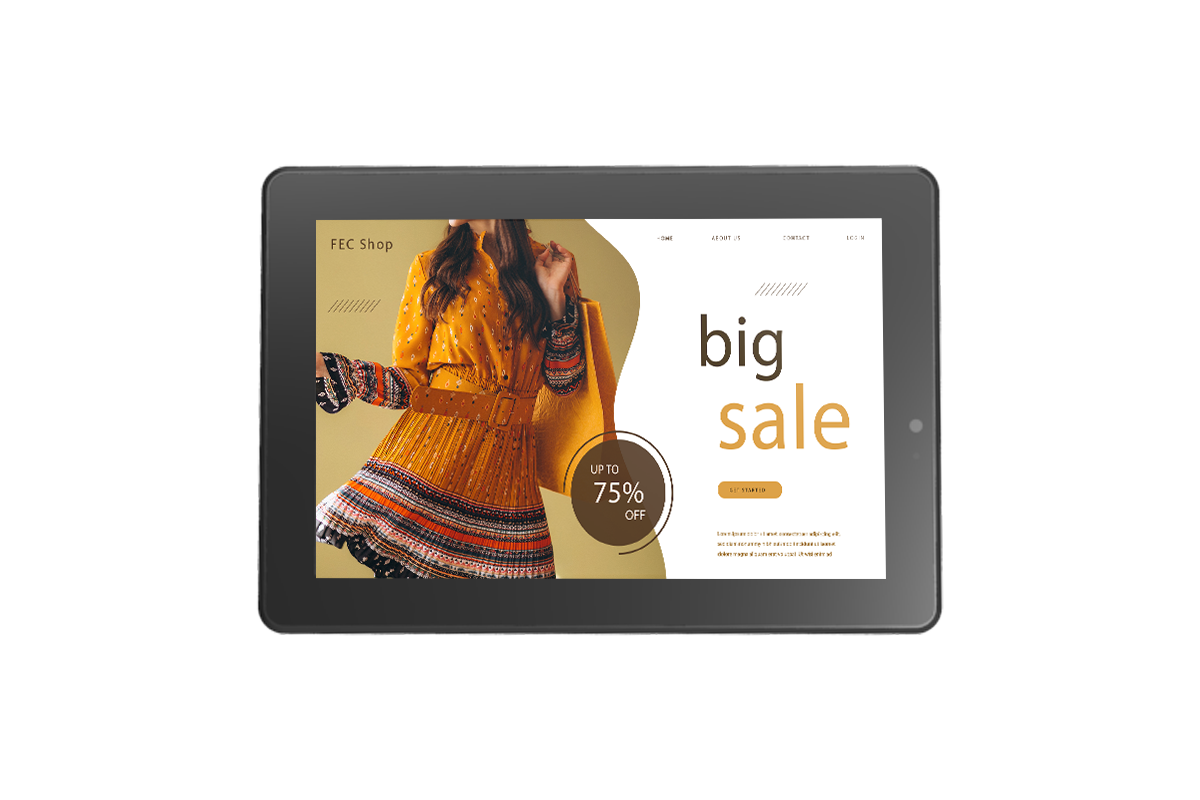

FEC introduces New panel pc, PP-1120W, which's small and lightweight.
PP-1120 is suitable for businesses which has space limitations and need basic POS machine functions. It can provide peripheral devices with three USB interfaces and wireless networking. The main core architecture is Quad-core Cortex-A17 of RK-3288

01

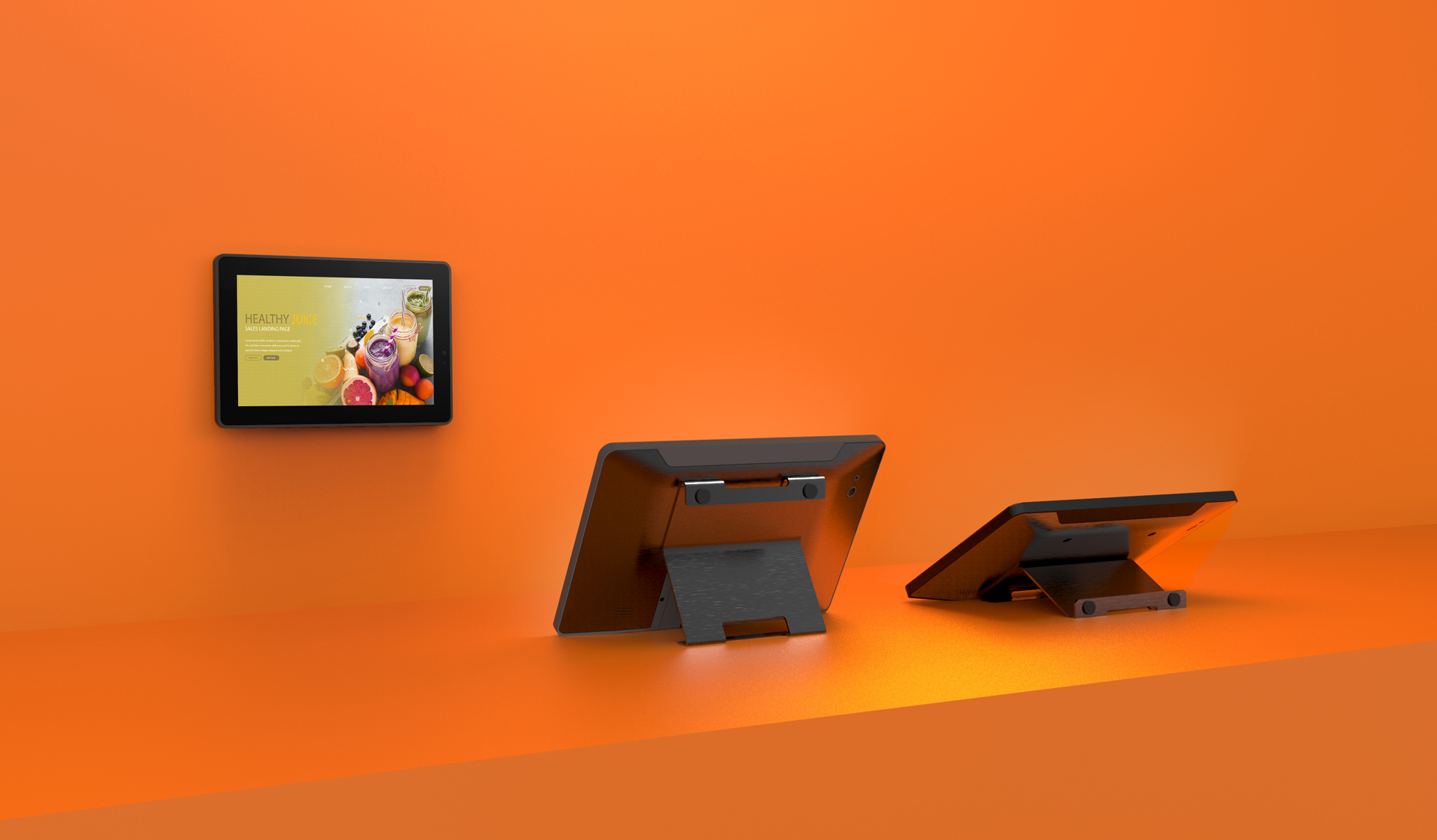

Flexible Position

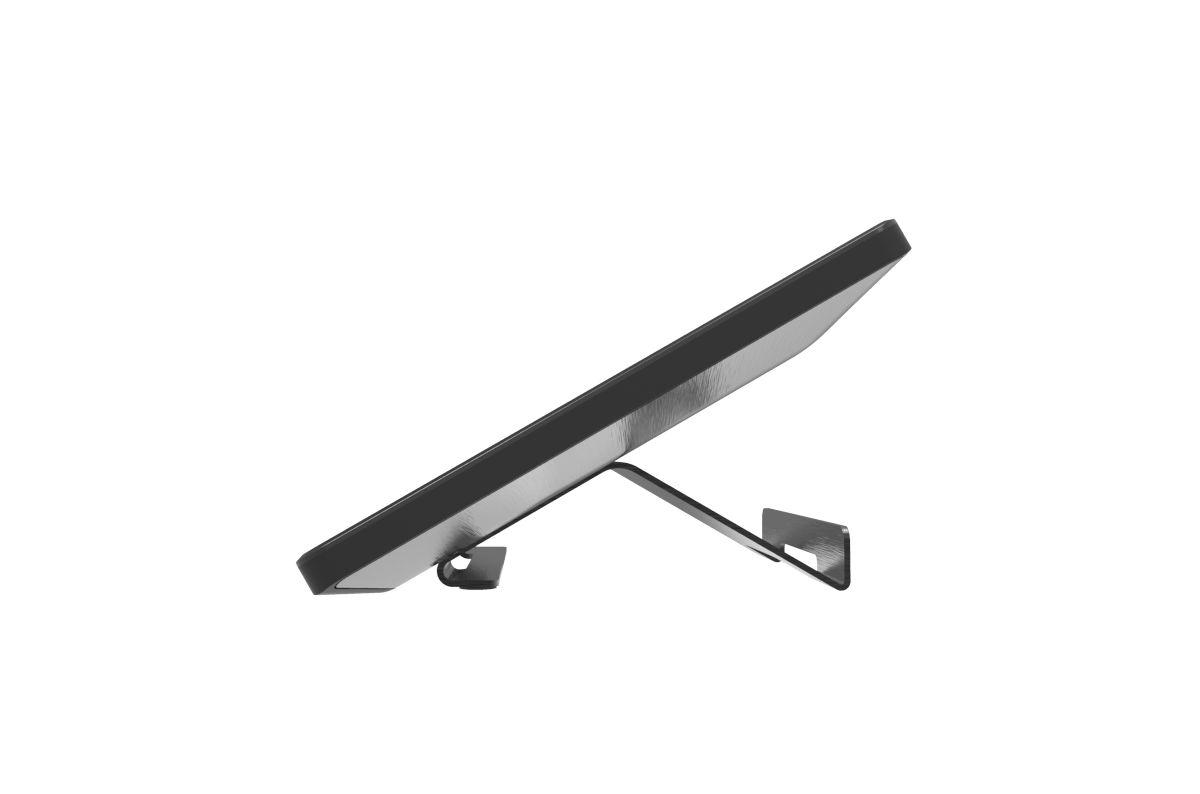

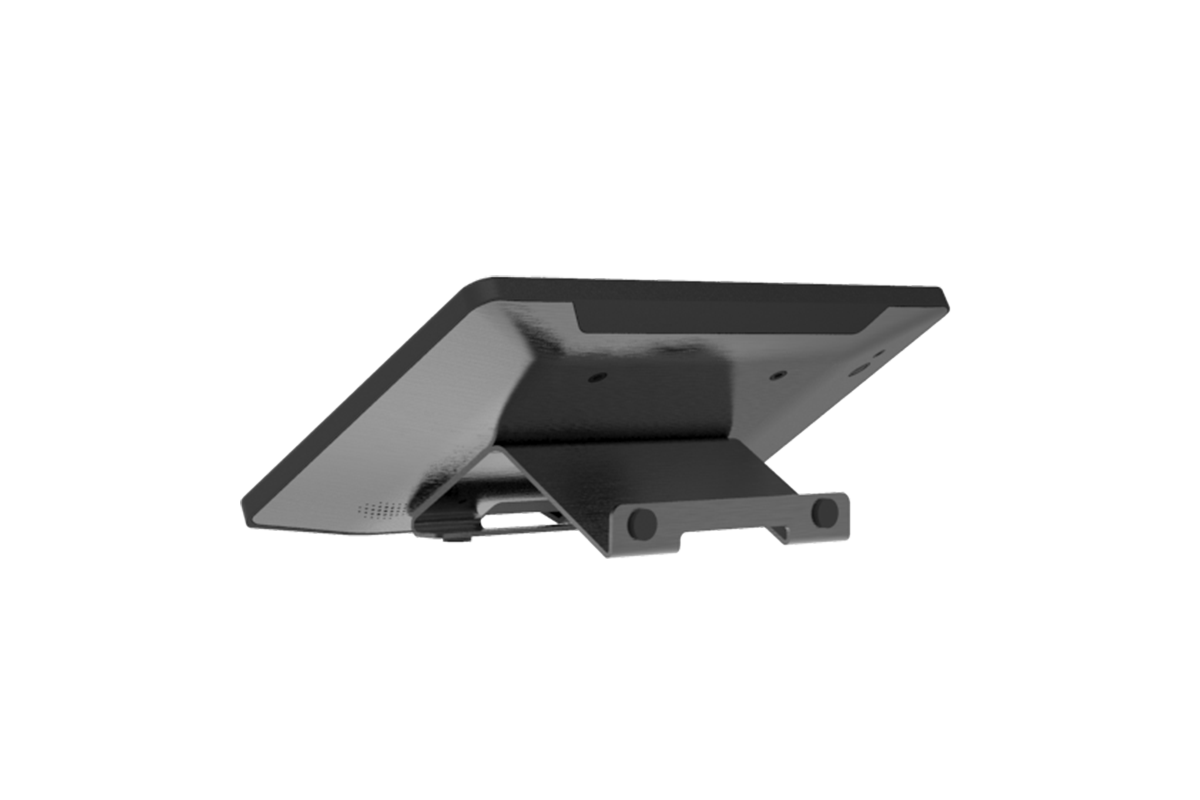

PP-1120W can be placed on a desktop with 30 or 60 degrees or with 100 x 100 vesa for wallmount options.

proimages/product-detail/05-Panel_PC/PP-1120W/PP1120W-1.png
02

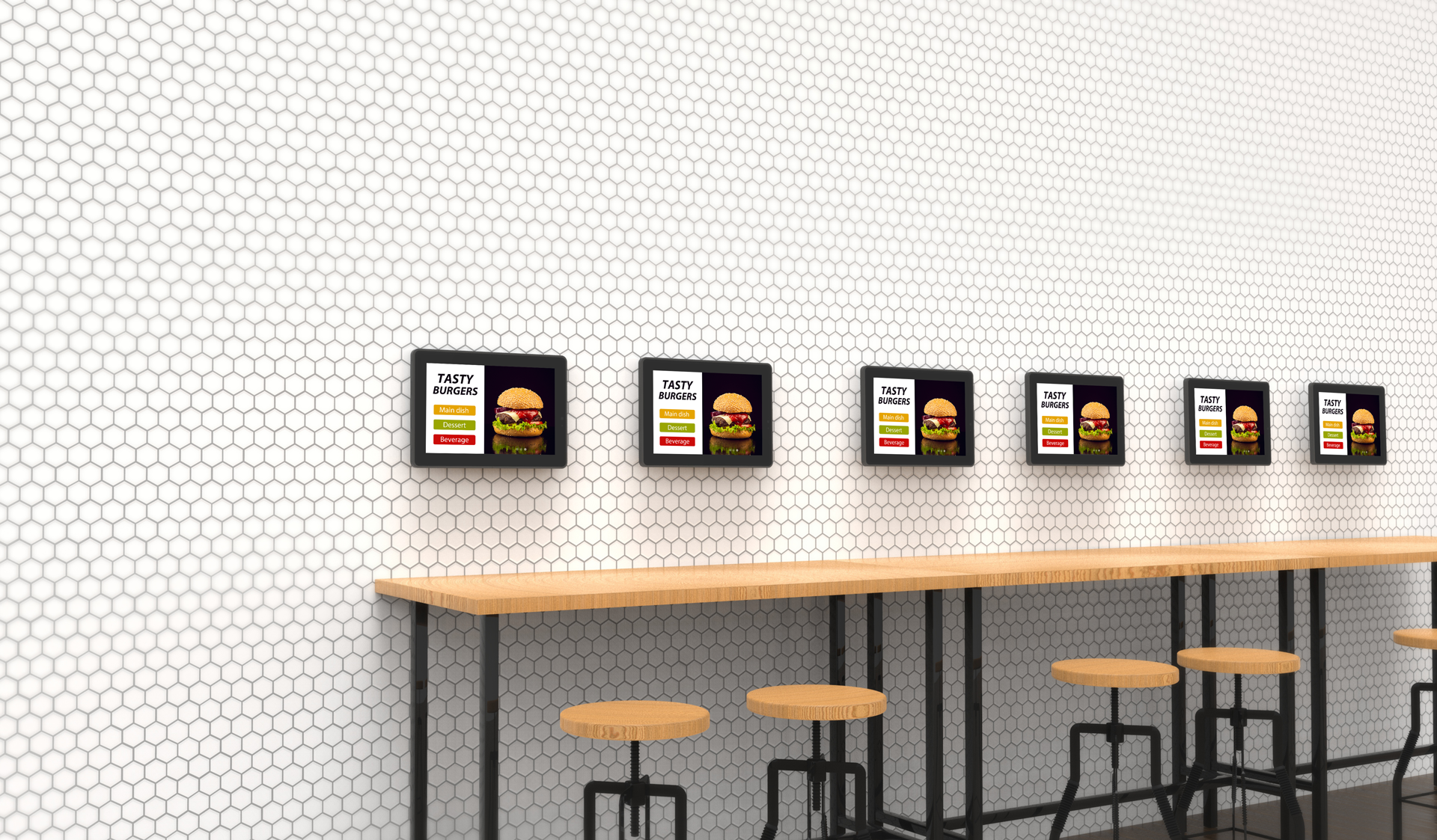

Restaurant Self-Ordering

PP-1120W wallmount solution for restaurants allows customers to take their time ordering to improve the customer experience and reduces manpower.

proimages/product-detail/05-Panel_PC/PP-1120W/PP1120W-2.png
03

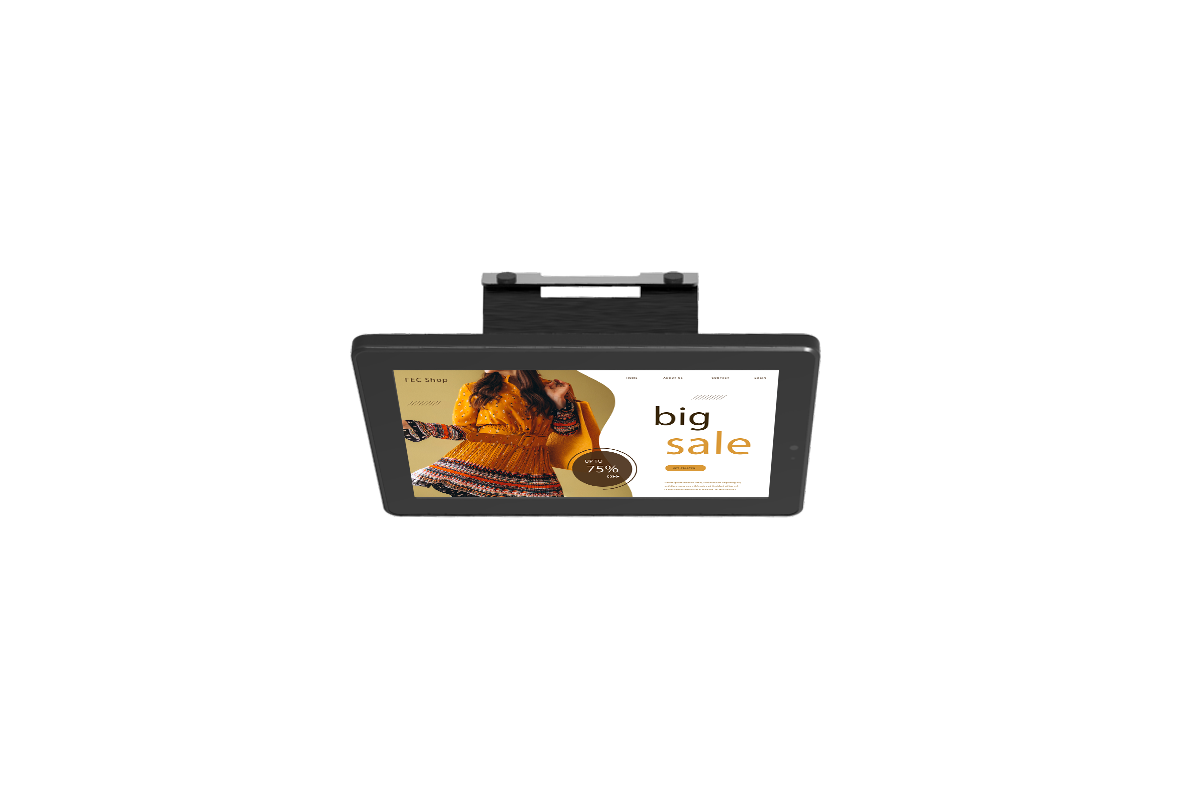

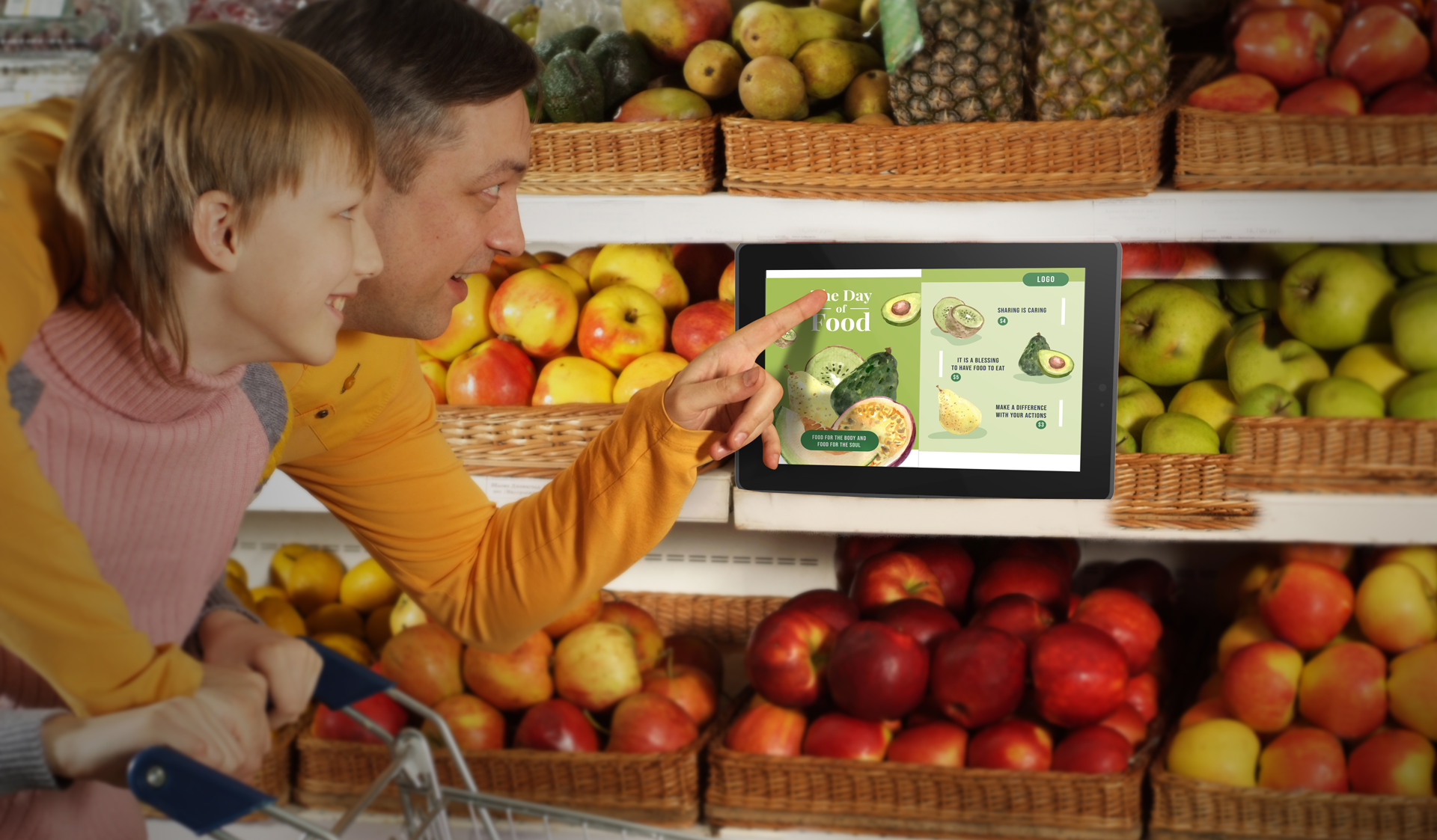

Instant product checking

Shelf-mounted PP-1120 enables product detail and realtime prince updates.

proimages/product-detail/05-Panel_PC/PP-1120W/PP1120W-5.png
04

Entertainment

PP-1120W with 10 inch screen is prefect to use as additional screen for servicing

proimages/product-detail/05-Panel_PC/PP-1120W/PP1120W-6.png
05

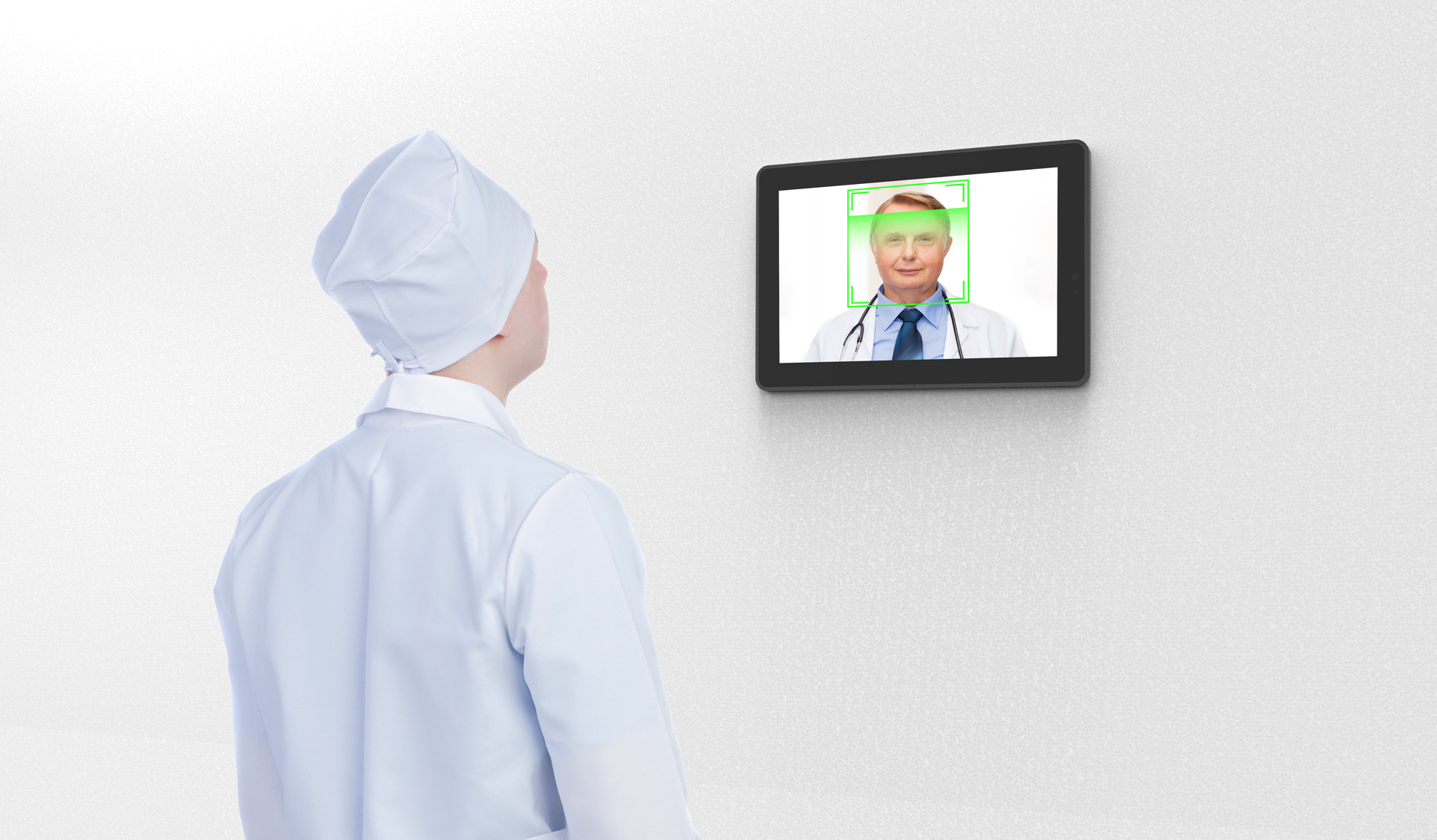

2M camera

Optional 2M integrated camera enables a wide range of capabilities such as video terminal, auto-login and more.

proimages/product-detail/05-Panel_PC/PP-1120W/PP1120W-3.png
06

2d Scanner

Adding a scanner transforms it into a price checker or tag scanner. (Project Base)

proimages/product-detail/05-Panel_PC/PP-1120W/PP1120W-4.png

Specifications

CPU
CPU
  • RK-3288 Quad-core Cortex-A17 up to 1.6GHz
Memory
Memory
  • 2GB DDR3 On Board
Storage
Storage
  • 16GB Built-in eMMC
Connection
Connection
  • WIFI 802.11 ac & BT 4.2 or LTE 4G (Optional)
Speaker
Speaker
  • 2 x 2W Internal Speaker
Display
Display
  • 10.1” TFT, 1280 x 800
Touch
Touch
  • True-Flat PCAP
Brightness
Brightness
  • 350 nits
MTBF
MTBF
  • 25K Hours
Camera
Camera
  • 2MP Front Camera (Optional)
Power
Power
  • 12V / 20W or 12V / 50W External Adapter
OS
OS
  • Android 8.1 Oreo
Mounting
Mounting
  • VESA 100 x 100 mm
Certification
Certification
  • FCC / CE Class B
Appearance
Appearance
  • Black
Temperature
Temperature
  • Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)
  • Storage: -20˚C ~ 60˚C (-4˚F ~ 130˚F)
Dimensions (W x H x D)
Dimensions (W x H x D)
  • Product: 264 x 182x 24.6 mm
  • With Stand: 264 x 182 x 163 mm (60 degree)
  • With Stand: 264 x 182 x 105 mm (30 degree)
Weight
Weight
  • Net: 2 Kg
  • Gross: 2.48 Kg
Port
Port
  • 3 x USB 2.0 Type A , 1 x USB 3.0 Type A (OTG)
  • 1 x RJ45 GigaLAN
  • 1 x Mic In (Optional)
  • 1 x 12V DC Input
  • 1 x SD/TF Card Slot (Max: 64GB)
  • 1 x Recovery Button
Optional
Optional
  • NFC
  • G Sensor
