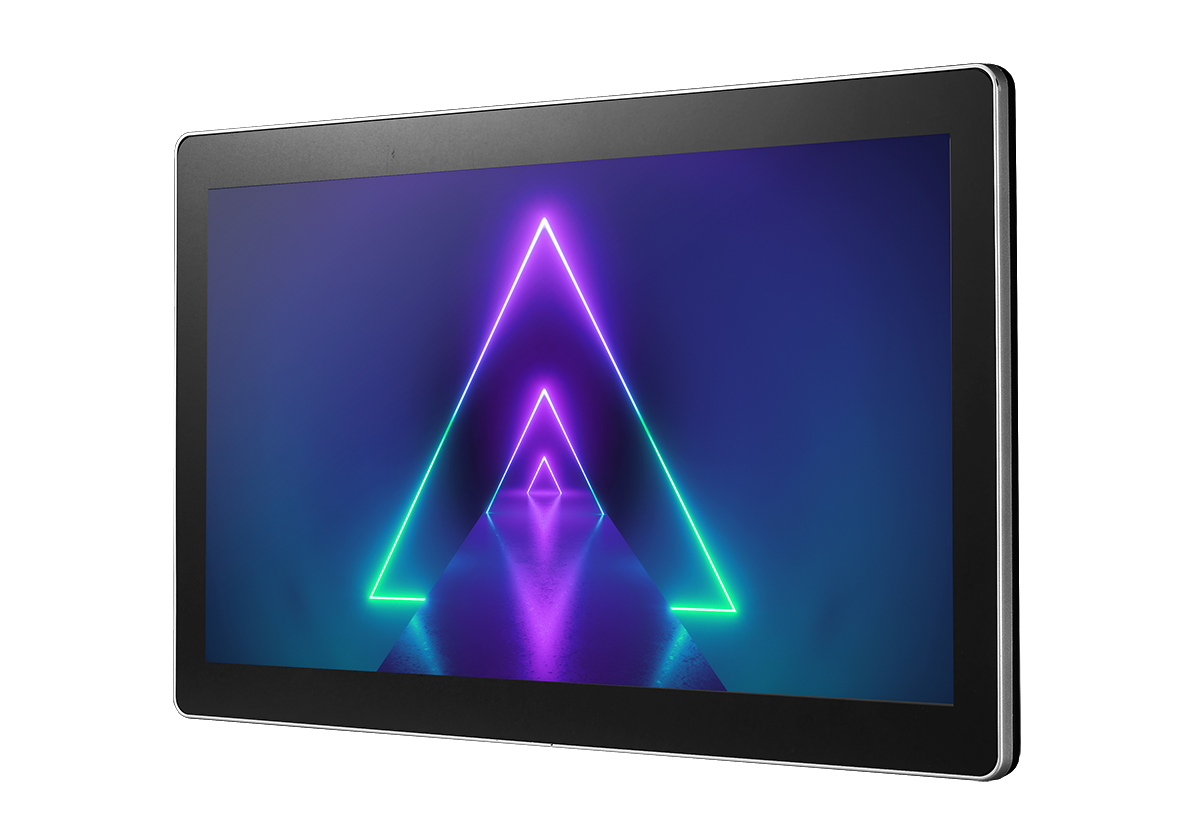

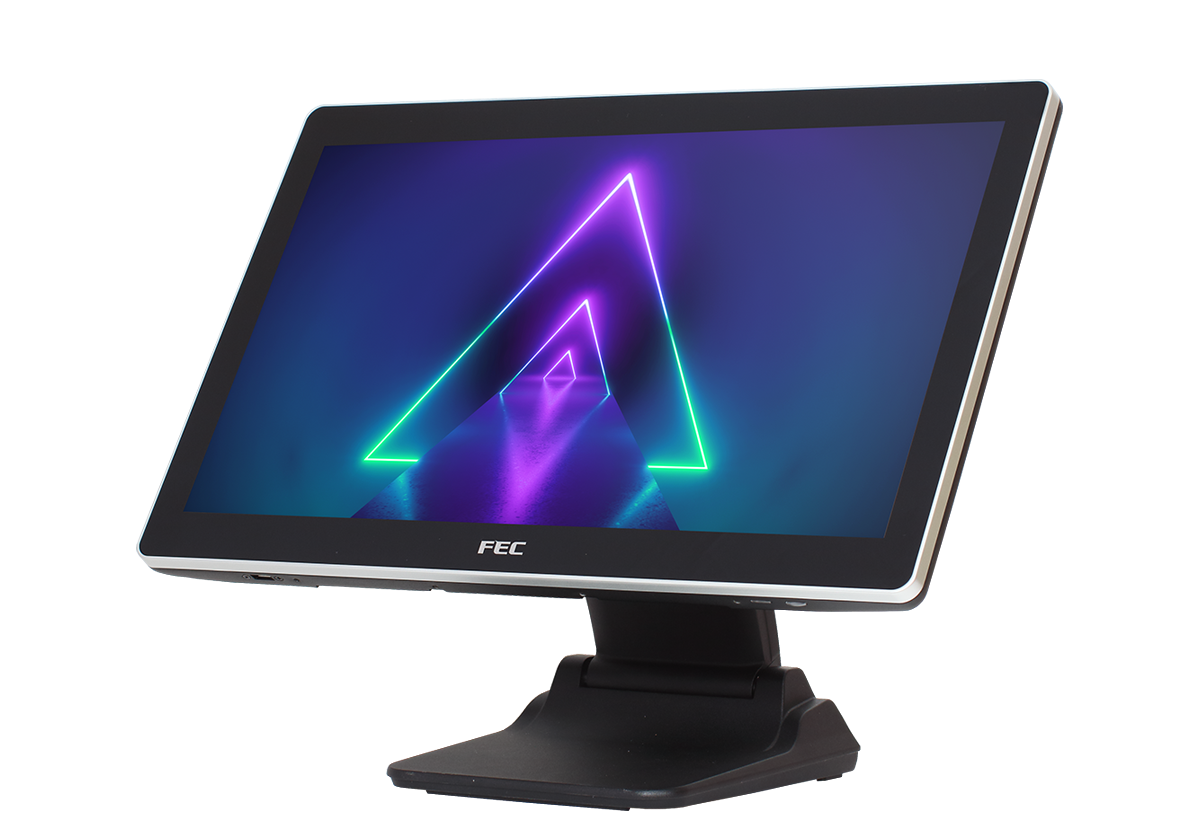

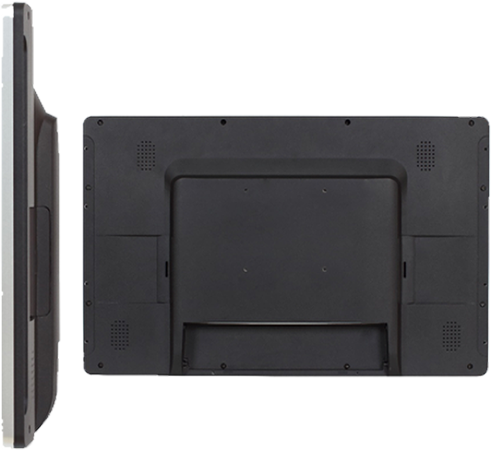

AerPPC PP-8632 is an ultra slim modular All-in-One panel PC. It’s fanless design offer you a silent and dust free operating environment.

01

22" Fanless Panel PC

AerPPC PP-8632 is an ultra slim modular All-in-One panel PC. It' s fanless design offer you a silent and dust free operating environment.

  • Platform: Intel® Bay Trail
  • Processor: Intel® Celeron J1900
  • System Memory: DDR3L Standard 4G ; Max 8G
02

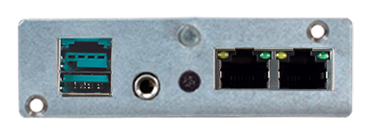

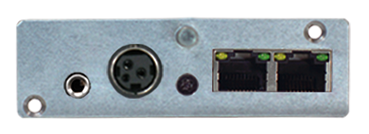

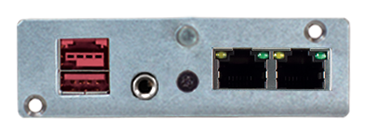

Optional 2nd I/O

FEC offer 4 types of additional I/O options on the nodular main I/O board.With optional 2nd I/O, it creates extra flexibility when purchasing and allows users to fully apply PP-8632 to multiple requirements.

Type A

Type B

Type C

03

Digital Information Signage

No matter using AerPPC or AerMonitor, FEC 22 inch series are beautiful displays with high resolution screens. With universal VESA wall mount design, they can be easily mounted on any flat surface!

04

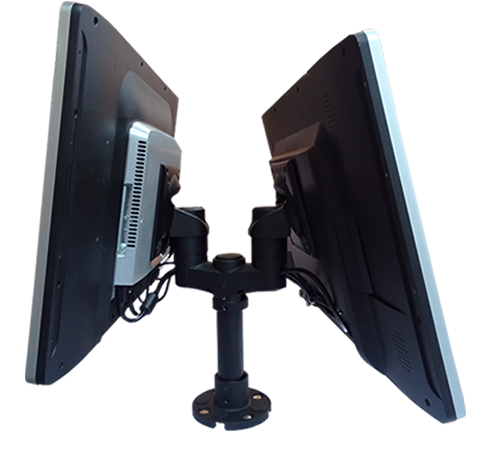

Dual Screens, Double Benefit

With FEC unique dual pole, the main panel pc can integrate with a 2nd touch screen when using as a POS system to interact with customers.

All the transaction details & campaign videos / photos can be shown on the screen at the same time!

Specifications

CPU
CPU
  • Intel® Celeron J1900 2M Cache, up to 2.42 GHz
Memory
Memory
  • 4GB Standard, Max 8GB (1 x So-DIMM DDR3L)
Storage
Storage
  • 1 x 2.5” SATA HDD or SSD
Speaker
Speaker
  • 2 x 2W Internal Speaker
Display
Display
  • 22” TFT, 1920 x 1080
Touch
Touch
  • True-Flat PCAP
Brightness
Brightness
  • 250 nits
MTBF
MTBF
  • 50K Hours
Power
Power
  • 12V / 150W External Adapter
OS
OS
  • POSReady 7
  • POSReady 2009
  • Windows 10 Pro
  • Windows 10 IoT Enterprise
Mounting
Mounting
  • VESA 100 x 100 mm
Certification
Certification
  • FCC / CE Class B
Appearance
Appearance
  • Aluminum Die-Casting + Plastic
  • Black with Silver Trim
Temperature
Temperature
  • Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)
  • Storage: -20˚C ~ 60˚C (-4˚F ~ 130˚F)
Dimensions (W x H x D)
Dimensions (W x H x D)
  • Product: 530 x 338 x 49 mm
  • Carton: 652 x 463 x 212 mm
Weight
Weight
  • Net: 5.7 Kg
  • Gross: 7 Kg

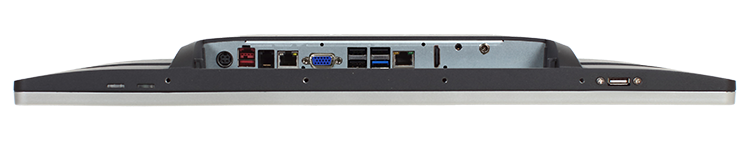

Port
Port
  • 1 x RJ45 (COM1) RS232
  • 2 x DB9 (COM2, COM3) RS232
  • 4 x USB Type A (3 x USB 2.0, 1 x USB 3.0)
  • 1 x PUSB 24V
  • 1 x RJ11 (12V / 24V) Supports Two Cash Drawers
  • 1 x RJ45 GigaLAN
  • 1 x VGA
  • 1 x Video

  • Side I/O Interface:
    1 x USB 2.0 Type A
  • Internal Expansion:
    1 x Mini PCIe
Optional
Optional
  • Type A: 2 x RJ45 (COM A, COM B) RS232, 1 x DC-Out 24V, 1 x Mic-in
  • Type B: 2 x RJ45 (COM A, COM B) RS232, 1 x PUSB 24V, 1 x Mic-in (Limited Current When Using PUSB 24V)
  • Type C: 2 x RJ45 (COM A, COM B) RS232, 1 x PUSB 12V, 1 x Mic-in
  • Type E: 2 x RJ11 (12V), 1 x Mic-in
  • Type G: 3 x PUSB 12V
  • Type H: 1 x PUSB 24V, 2 x 12V (Limited Current When Using PUSB 24V)
