PP-1635

    FEC has completely redesigned our newest Panel PCs. AerPPC offers selections of Intel® Celeron®, J1900 processors and features a modular design allowing it to be wall mounted or integrated with a base.
    Compare
    Inquiry

    Quick find

    Specifications

    CPU
    CPU
    • Intel® Celeron J1900 2M Cache, up to 2.42 GHz
    Memory
    Memory
    • 4GB Standard, Max 8GB (1 x 204-pin DDR3L)
    Storage
    Storage
    • 1 x 2.5” SATA HDD or SSD
    Speaker
    Speaker
    • 2 x 2W Internal Speaker
    Display
    Display
    • 15” TFT, 1024 X 768
    Touch
    Touch
    • True-Flat PCAP
    Brightness
    Brightness
    • 250 nits
    MTBF
    MTBF
    • 30K Hours
    Power
    Power
    • 12V / 65W External Adapter
    OS
    OS
    • POSReady 7
    • POSReady 2009
    • Windows 10 Pro
    • Windows 10 IoT Enterprise
    Mounting
    Mounting
    • VESA 100 x 100 mm
    Certification
    Certification
    • FCC / CE Class B
    Appearance
    Appearance
    • Aluminum Die-Casting + Plastic
    • Black
    Temperature
    Temperature
    • Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)
    • Storage: -20˚C ~ 60˚C (-4˚F ~ 130˚F)
    Dimensions (W x H x D)
    Dimensions (W x H x D)
    • Product: 366 x 293 x 3950 mm
    • Carton: 480 x 460 x 320 mm
    Weight
    Weight
    • Net: 3.39 Kg
    • Gross: 6.5 Kg

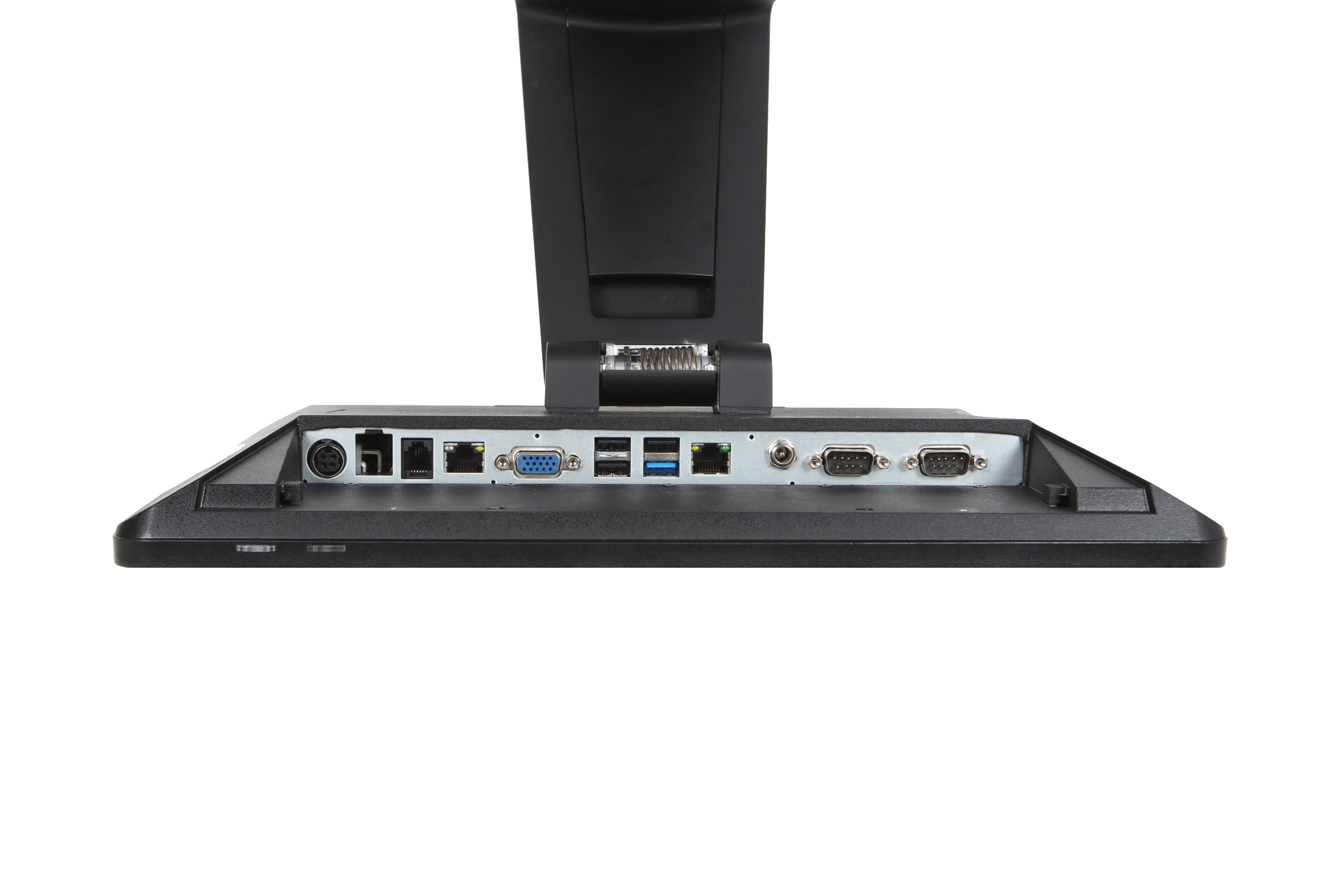

    Port
    Port
    • 2 x RJ45 (COM1, COM2) RS232
    • 2 x DB9 (COM3, COM4) RS232
    • 4 x USB Type A (3 x USB 2.0, 1 x USB 3.0)
    • 1 x RJ11 (12V Only)
    • 1 x RJ45 GigaLAN
    • 1 x VGA

    • Side I/O Interface:
      1 x USB 2.0 Type A
    • Internal Expansion:
      1 x Mini PCIe
