XPOSPLUS XP-4765W

The all new XPOS PLUS XP-4765W features the state-of-the-art design which is stylish, functional, user-friendly and powerful.

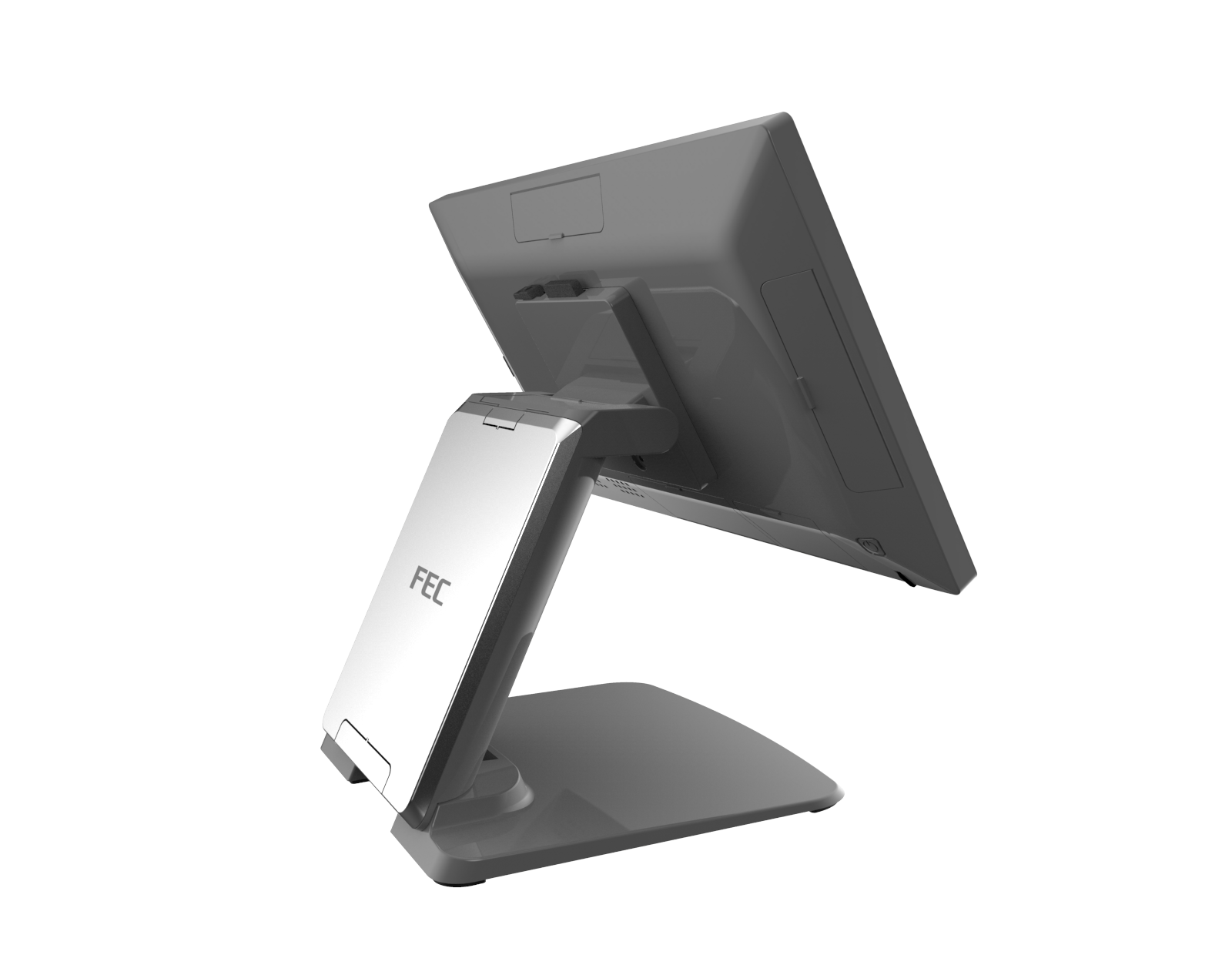

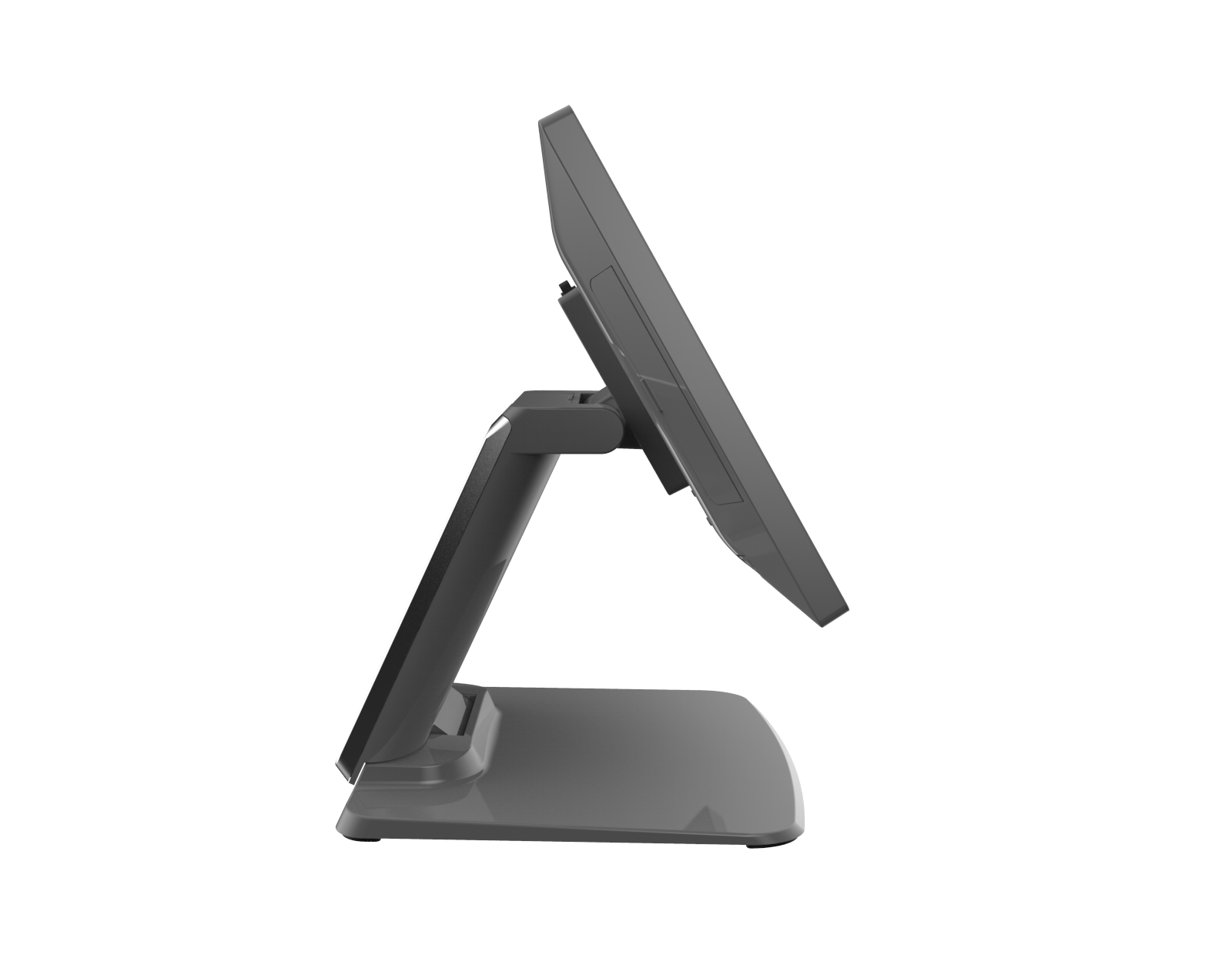

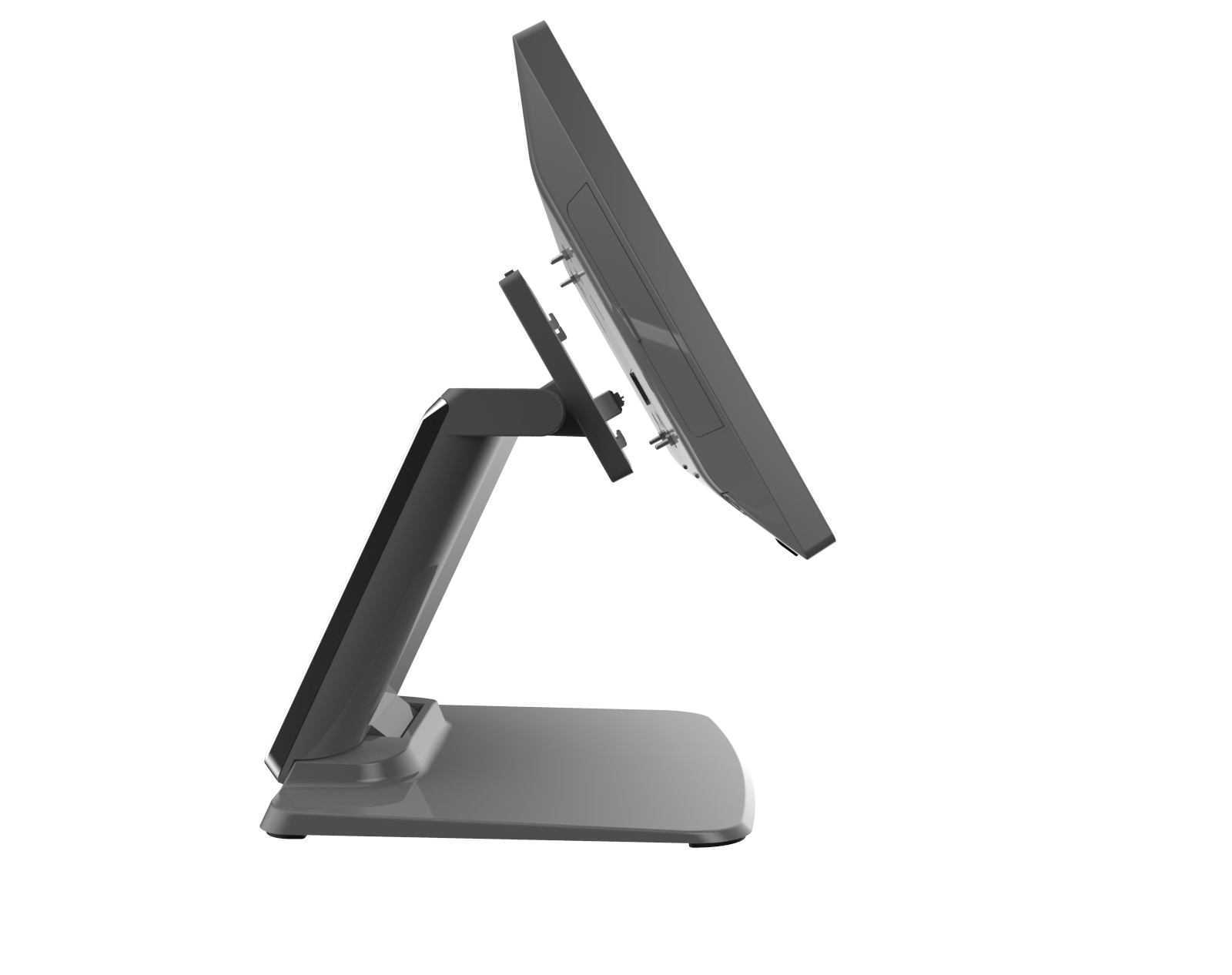

The product construction is a Panel PC that can be easily attached and detached from the dual-hinge docking stand. The IO ports built inside the stand offer excellent cable management.

XPOS Plus offers the flexibility of integration to meet the requirement of all different counters.

加入比較

快速連結

特點
規格
相關信息
案例分享

proimages/Web_Data/XPOSPLUSSTORY/4766001.png

proimages/Web_Data/XPOSPLUSSTORY/47650011.png

Specification.

XPOS PLUS Series XP-4765W

Platform	Windows
Model	XP-4765W 15.6 "
System
Processor	Intel® Celeron® G6900Intel® Core™ i3-12100Intel® Core™ i3-12100TEIntel® Core™ i5-12400Intel® Core™ i5-12500TEIntel® Core™ i7-12700 01
Memory	4 / 8 / 16 / 32GB (Max 32GB2 x SO-DIMM DDR4) 02
Storage	1 x M.2 M Key PCIe GenIII03
Operating System	Windows 10 IoT EnterpriseWindows 11 IoT Enterprise 04
Display
Display	15.6" Slim Border TFT, 1920 x 1080
Brightness	350 nits / 50K Hours
Touch	True-Flat PCAP
Audio
Speaker	2 x 2W Internal Speaker
Connectivity
Wi-Fi	Wi-Fi + BT Module (Wi-Fi 802.11 b/g/n/ac + BT 4.2)05
Bluetooth	BT 4.2
Camera	Camera + LED Bar 2-in-1
External I/O
External I/O	1 x Default on PPC: Giga LAN (RJ45)USB 3.0HDMISmart-DD100W USB-C PD (DC-IN)1 x Add-on Peripheral IO: 3 x USB 2.0 Type C Connector1 x Inside Stand Main IO Ports: 2 x COMGiga LAN (RJ45)2 x USB 2.02 x USB 3.0Cash Drawer (RJ1112V / 24V)Smart-IO20V 90W / 130W (DC-IN)
Add-on device (Optional)	RFID Reader2D Barcode Scanner
Power
Power	20V 90W or 130W External Adapter (DC-Jack) or 20V 100W (USB-C)
Mechanical
Mounting	Docking, VESA 100 x 100 mm
Construction	Aluminum Die-Casting + Plastic
Color	Galaxy Grey
Environmental
Operation Temperature	0°C - 40°C / 32 to 104°F
Storage Temperature	-20°C - 60°C / -4 to 140°F
Compliance
Certifications	FCC, CE Class B, UKCA
Shipping
Dimension	360 x 312 x 233 mm14.17 x 12.28 x 9.17 in
Net Weight	5.1 kg11.24 lb
Carton	Subject to packaging configuration.
Gross Weight	Subject to packaging configuration.

Packaging Dimensions / Packaging Weight:Packaging dimensions and weight are approximate and may vary depending on packaging configuration,production batch, and shipping requirements.

Specifications are subject to change without notice.

note

01 Performance, thermal behavior, and power consumption may vary by CPU configuration.

02 4 / 8 / 16 / 32GB; max 32GB; 2 x SO-DIMM DDR4.

03 Storage capacity is defined as 1 GB = 10⁹ bytes and 1 TB = 10¹² bytes. Actual formatted capacity will be less.

04 Supported operating systems are limited to the versions listed above. Other operating systems are not validated.

05 Optional modules: Wi-Fi + BT Module (Wi-Fi 802.11 b/g/n/ac + BT 4.2), RFID Reader, Camera + LED Bar 2-in-1, 2D Barcode Scanner.
