PP-9742W
產品介紹
01

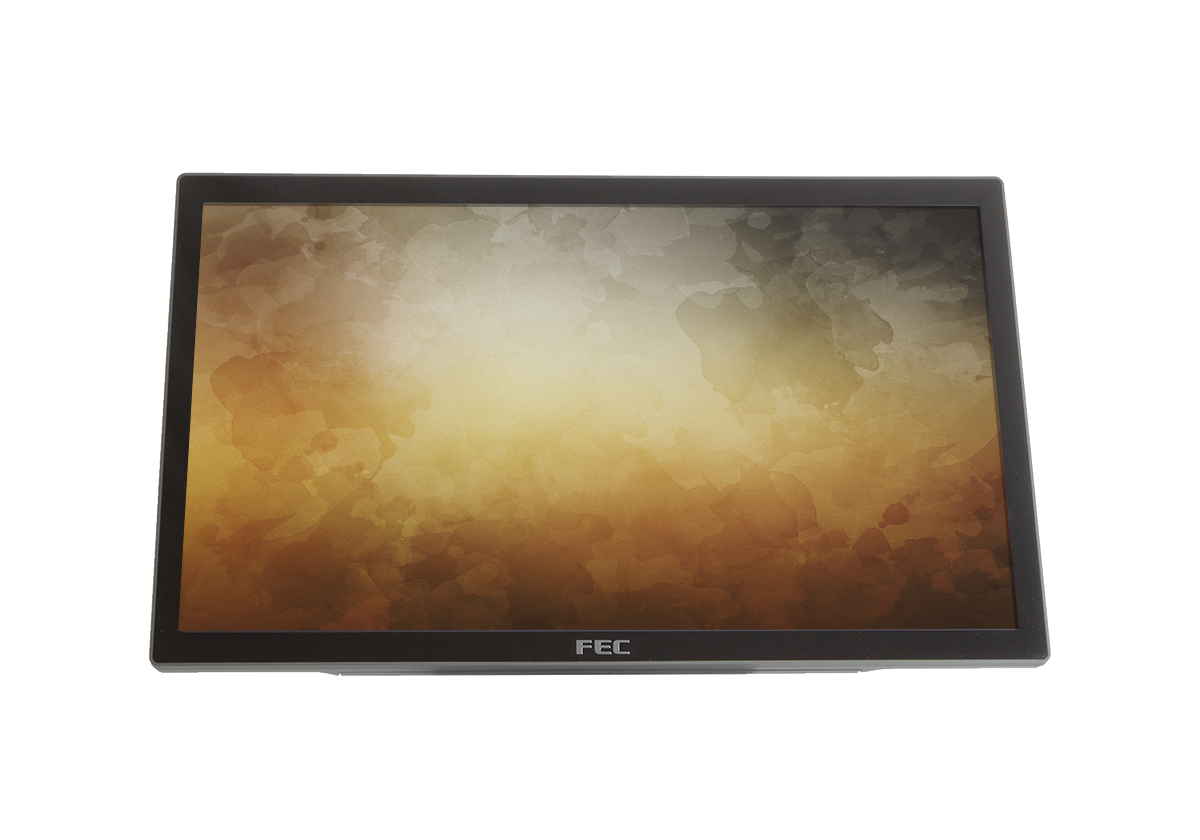

22" Fanless Panel PC
XPPC PP-9742W is an ultra slim modular All-in-One panel PC. It' s fanless design offer you a silent and dust free operating environment.
- Platform: Intel Alder Lake
- Processor: Intel H610
- System Storage: 1 x M.2 M Key (PCIe)
02
Digital Information Signage
FEC 22 inch Panel PC can be used in different way, with universal VESA wall mount design, they can be easily mounted on any flat surface or connect with FEC Stand to use as desktop type,
03
Large Enterprise Environment
Large screen All in One Panel PC is perfected for digital signage, product display, industrial control system or apply with self-ordering system.
規格
處理器
- Intel Core i3 12100TE 5M Cache, 2.1GHz
- Intel Core i5 12500T 7.5M Cache, 2.0GHz
記憶體
- 4GB Standard, Max 32 GB (1 x So-DIMM DDR4)
儲存裝置
- 1 x M.2 M Key (PCIe)
無線裝置
- 1 x M.2 E Key 802.11ac + BT 4 (Optional)
喇叭
- 2 x 2W Internal Speaker
顯示器
- 22" TFT, 1920 x 1080
觸控
- True-Flat PCAP
亮度
- 250 nits
平均故障間隔時間
- 70K Hours
電源供應
- 20V / 90W or 20V / 130W External Adapter
作業系統
- Windows 10 IoT Enterprise
- Windows 11 IoT Enterprise (Est. available in Q3 2023)
- Linux
TPM
- TPM2.0: dTPM and Intel PTT

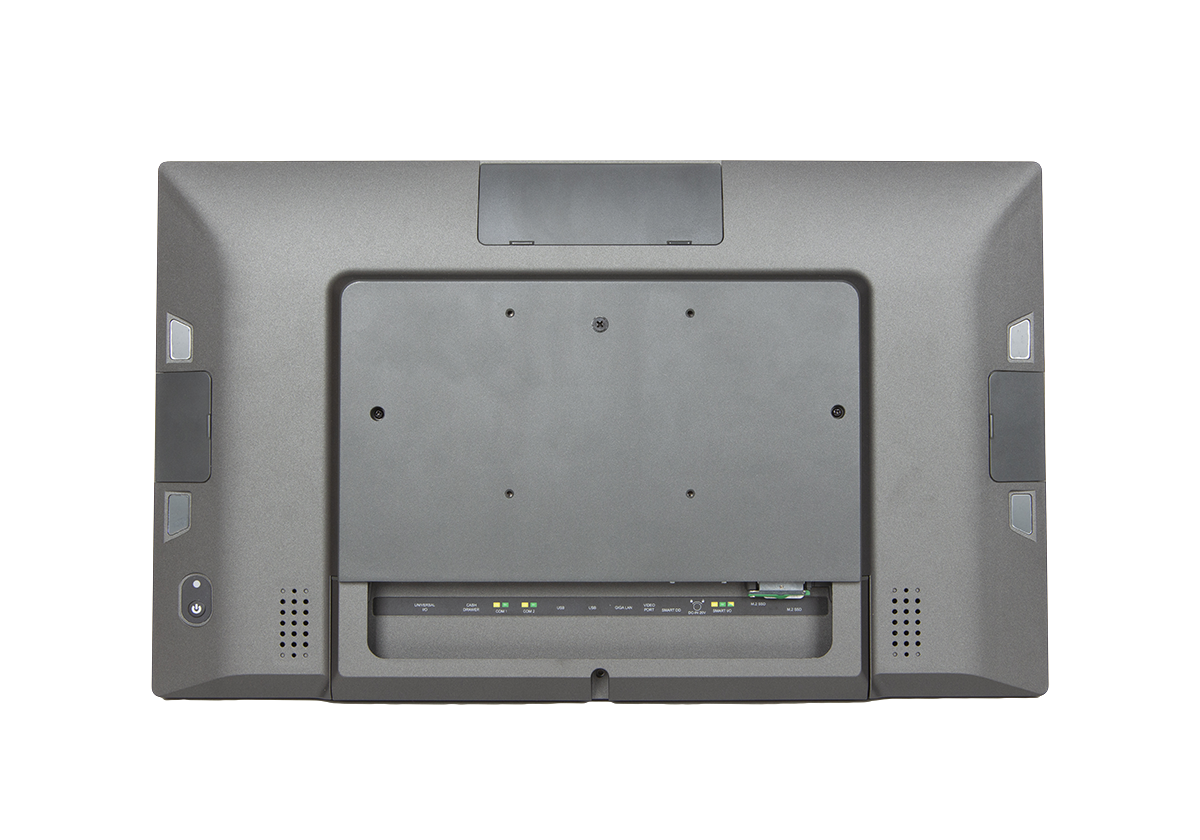

壁掛
- VESA 100 x 100 mm
認證
- FCC / CE Class B
外觀
- Aluminum Die-Casting + Plastic
- Galaxy Grey
溫度
- Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)
- Storage: -20˚C ~ 60˚C (-4˚F ~ 140˚F)
尺寸 (寬 x 高 x 深)
- Product: 512.30 x 308.91 x 512.30 x 38.8 mm
- Carton: 662 x 210 x 440 mm
重量
- Net: 5.5Kg
- Gross: 7.0 Kg

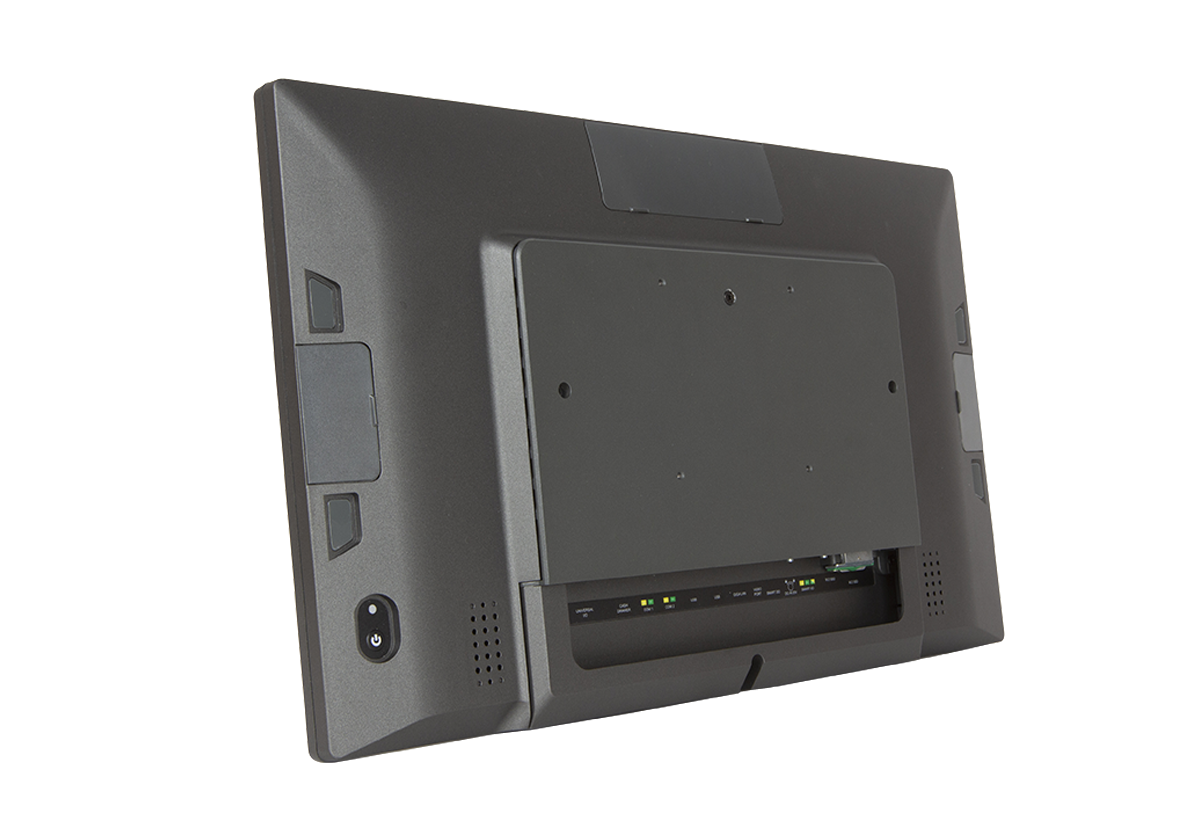

連接埠
- 1 x RJ11 Cash Drawer (12/24V)
- 3 x USB 3.0 Type A
- 1 x USB 2.0 Type A
- 1 x SMART DD (Reserved for FEC 2nd Display)
- 1 x HDMI
- 2 x RJ45(RS232)
- 1 x Giga LAN
- 1 x 20V DC-In
- 1 x SMART IO (Reserved for optional addition IO interface)
- 1 x SMART DP (Reserved for FEC Customer Display or 2nd Display)
選擇搭配
- Universal IO (Reserved for 1 of 4):1 x 24V P-USB1 x 12V P-USB2 x USB 2.01 x RJ45 (RS232)
- SMART IO for converting cable to (1 of 5):1 x DB9 (RS232)1 x 12V DC Out1 x 12V P-USB1 x USB Type B 2.0 + 24V DC Out1 x USB Type B 2.0 + 12V DC Out
