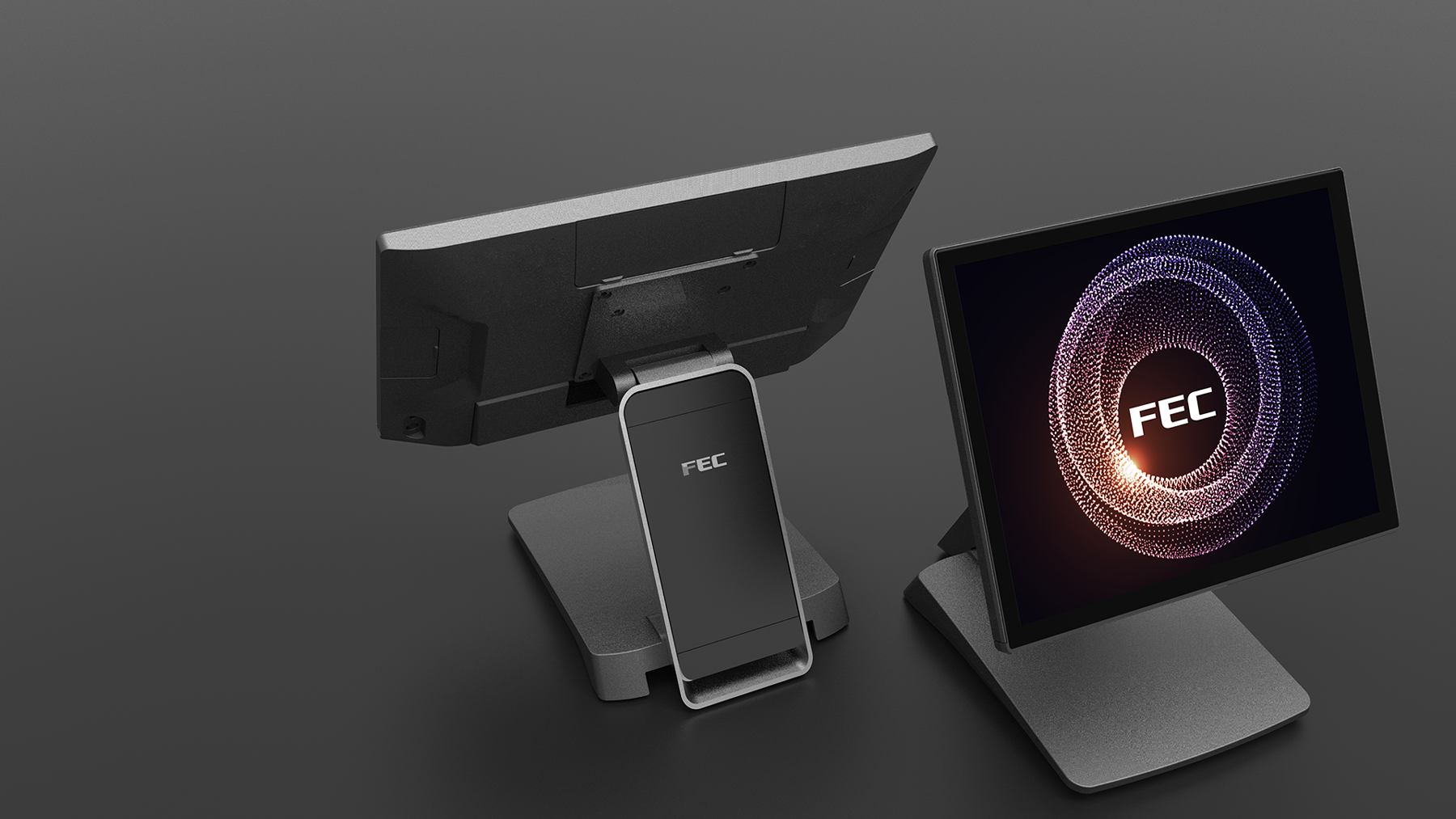

The FEC new generation product – Xmonitor, which redesigned with XPPC, provides three different installation methods. Respectively is the integrated type mounted on the monitor, the arm type fixed on the stand, and the pole type with an independent extending FEC pole.

proimages/Web_Data/product/06-Monitors/XM-3015W/XM-3015_1.png
01

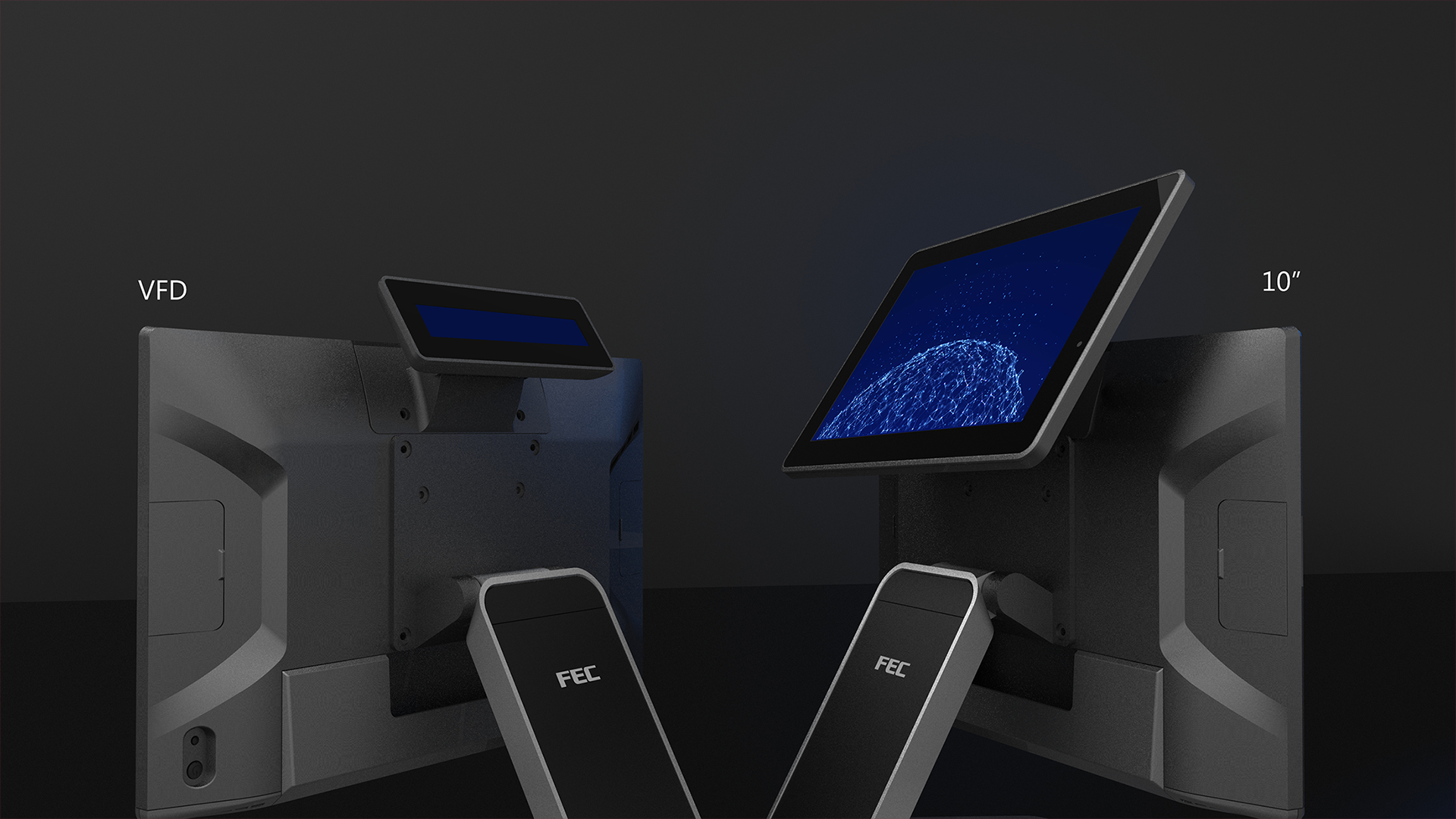

2nd Monitors Arm type

proimages/Web_Data/product/06-Monitors/XM-3015W/XM-3015W_2.png
02

2nd Monitors Pole Type

15” | 15.6”

proimages/Web_Data/product/06-Monitors/XM-3015W/XM-3015W_4.png
03

2nd Monitors

Arm Type / Integrated Type / Pole Type

proimages/Web_Data/product/06-Monitors/XM-3015W/XM-3015W_5.png

Specifications

Display
Display
  • 15” TFT , 1024 x 768
Touch
Touch
  • Non-Touch
  • True-Flat PCAP
Brightness
Brightness
  • 350 nits
MTBF
MTBF
  • 50K Hours
Speaker
Speaker
  • 4ohm 2W (Available for AD board Version)
Power
Power
  • AD board Version:
    12V DC-in (Power From VGA, USB DP)
  • SMART DD Version:
    20V DC-in (Power From SMART DD)
Mounting
Mounting
  • Standalone
  • Arm Type
  • Pole Type
  • VESA 100 x 100 mm
Certification
Certification
  • FCC / CE Class B
Appearance
Appearance
  • Aluminum Die-casting + Plastic
  • Galaxy Grey
Temperature
Temperature
  • Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)
  • Storage: -20˚C ~ 60˚C (-4˚F ~ 140˚F)
Dimensions (W x H x D)
Dimensions (W x H x D)
  • Product: 342 x 310 x 342 mm
  • Carton: 448 x 156 x 468 mm
Weight
Weight
  • Display Only (Net): 3 Kg
  • Display with Stand (Net): 3.9 Kg
  • Display with Stand (Gross): 5.6 Kg
Port
Port
  • AD board Version:
    1 x Video Port
    1 x VGA (12V Power)
    1 x USB DP
    1 x USB 2.0 Type B
    1 x DC-in 12V
    1 x Line-in
  • Smart DD Version:
    1 x Smart DD in
    1 x Smart DD out
Optional
Optional
  • Compatible with XPOS Add-on device(Supports Device on Right Side)
  • 2 in 1 Sensor (Ambient Light, Proximity)
  • 2MP Front Camera
  • 2 x USB 2.0 Type A
