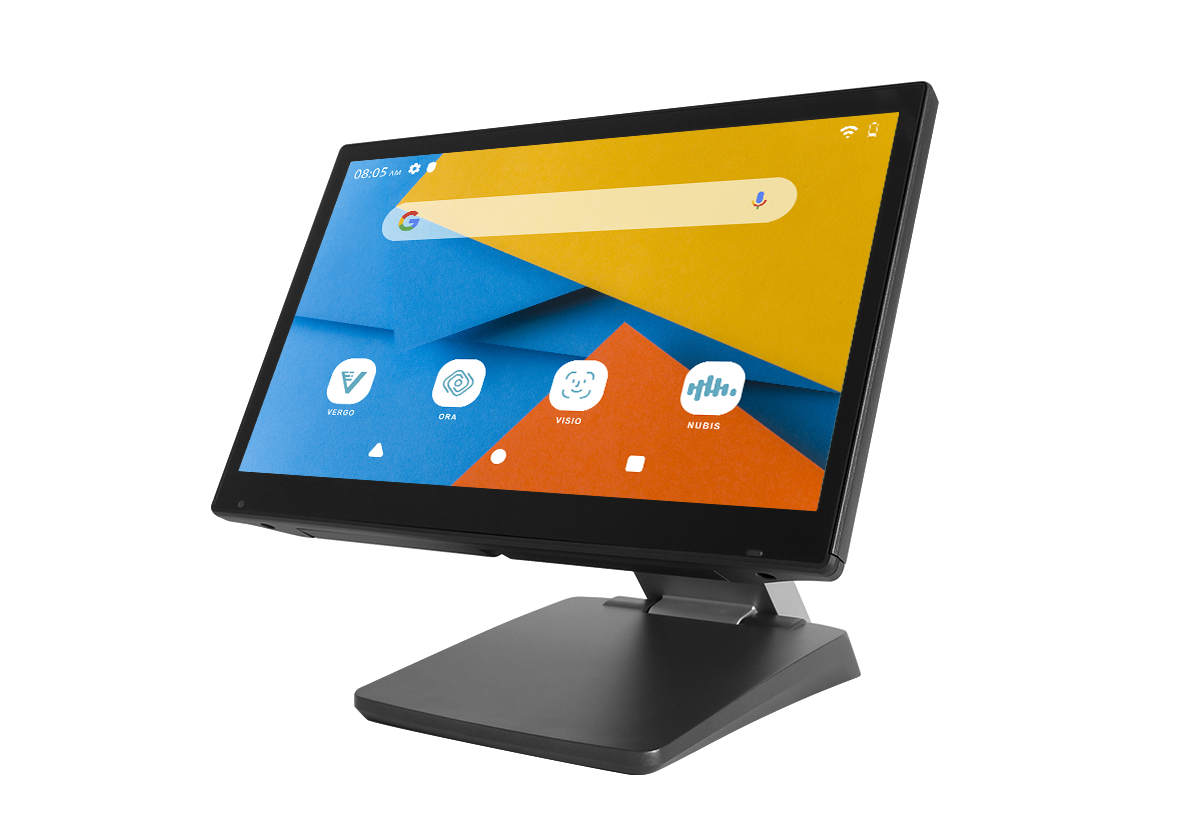

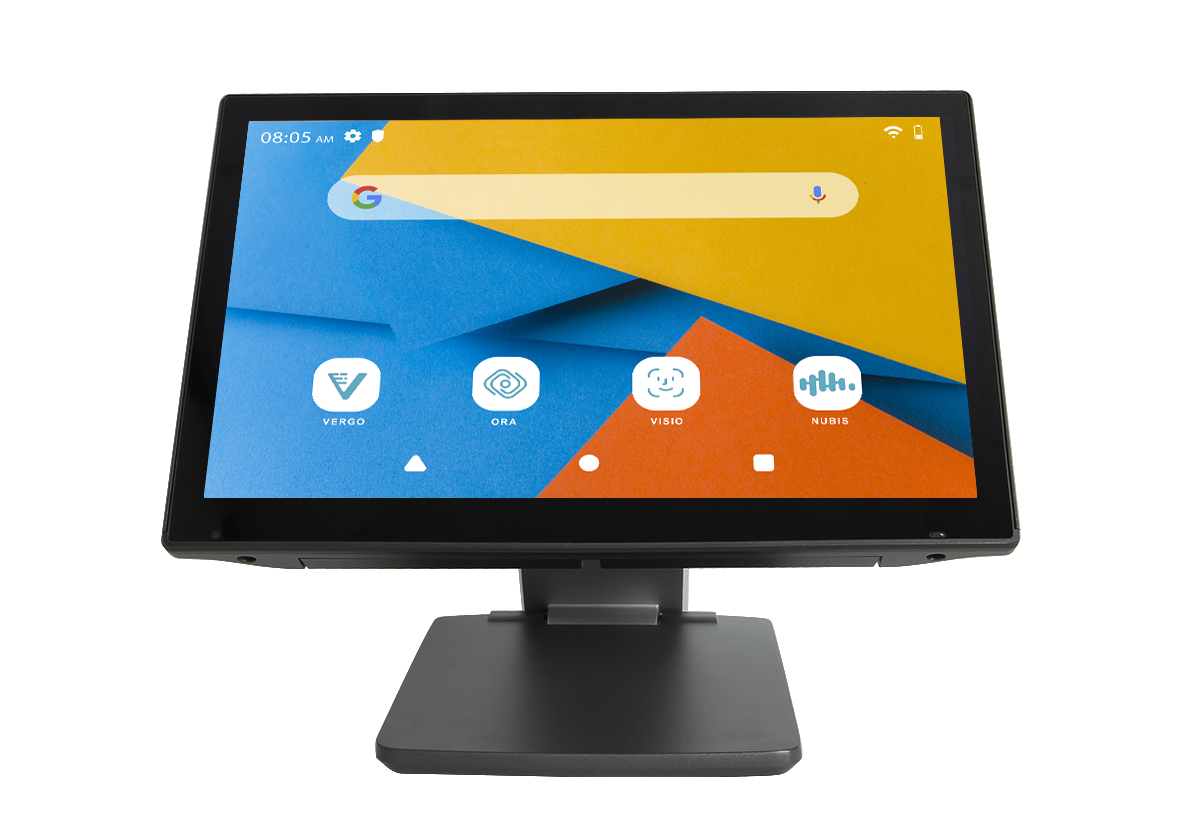

PP-9125W
Product Introduction
01

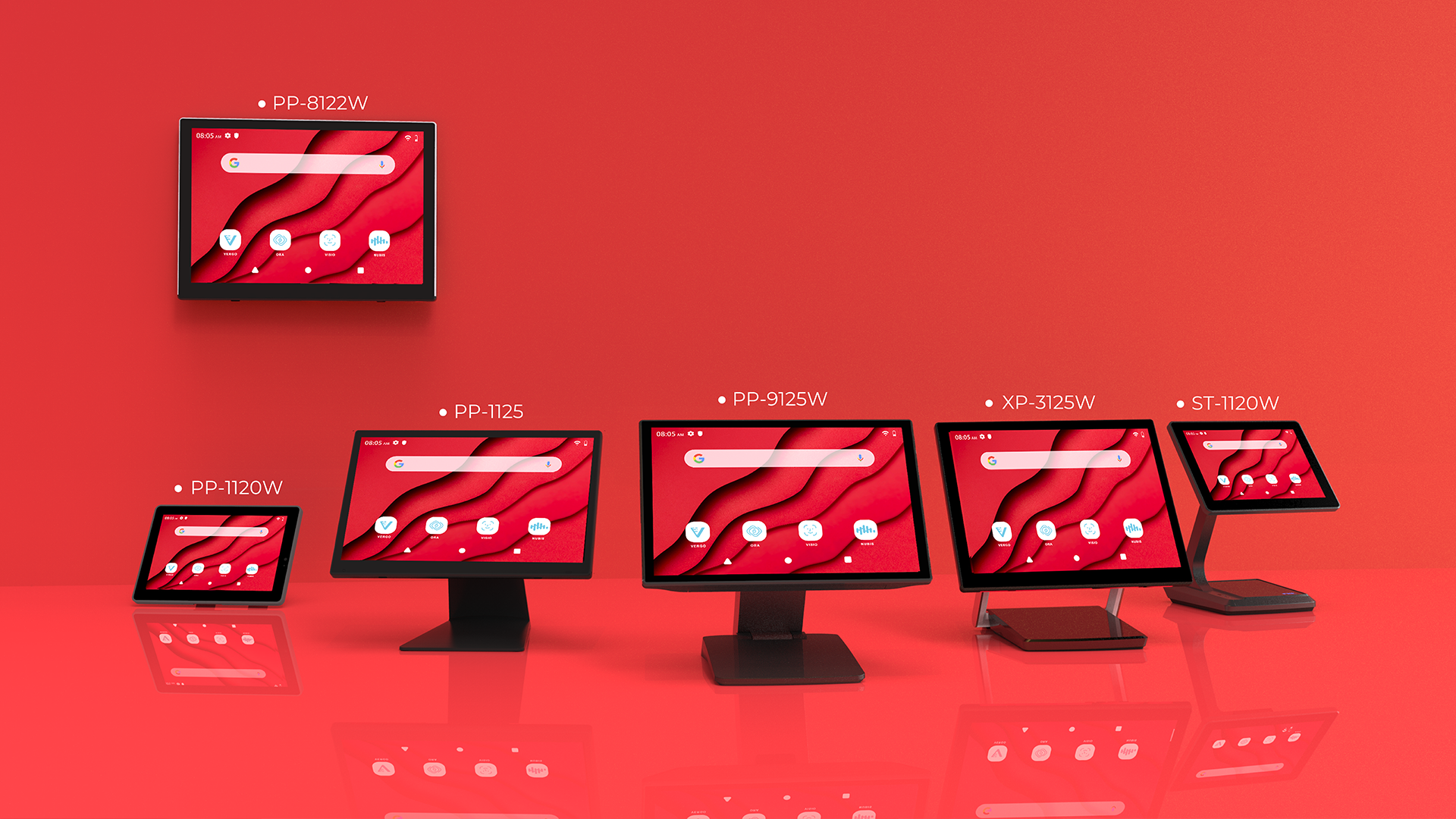

FEC ANDROID
FEC provides a complete series of Android POS. From 10" to 22" in for lightweight usage, wall-mount as digital display or with stand for different types of POS terminals.
02
SIMPLE ANDROID PANEL PC
A refined A Android Panel PC allows various application s and can be adapted to different installatid
ANDROID
ㆍCPU : RK-3288 Quad-core Cortex-A17
ㆍMemory : 2GB DDR3 on Board
ㆍStorage : 16GB Built-in eMMC
FEC PLATFORM
Multiple software service in one platform. Nubis as
device monitoring supports image/ app OTA.
Specifications
CPU
- Rock chip RK-3288 Quad-core Cortex-A17 up to 1.8GHz
Memory
- 2GB DDR3 On Board
Storage
- 16GB Built-in eMMC
Connection
- WIFI 802.11 ac & BT 4.2 (Optional)
Speaker
- 2 x 2W Internal Speaker
Display
- 15.6" TFT, 1920 x 1080
Touch
- True-Flat PCAP
Brightness
- 300 nits
MTBF
- 50K Hours
OS
- Android 8.1 Oreo
Mounting
- VESA 100 x 100 mm
Certification
- FCC / CE Class B
Appearance
- Plastic+Aluminum + Metal
- Galaxy Grey with Black
Temperature
- Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)
- Storage: -20˚C ~ 60˚C (-4˚F ~ 130˚F)
Dimensions (W x H x D)
- Product: 368 x 257 x315 mm
- Carton: 492 x 168 x 488 mm
Weight
- Net: 3.17 Kg
- Gross: 5.19 Kg
Port
- 1 x 20V DC Input
- 1x RJ45 Gigabit LAN
- 1x Video Port
- 1x RJ11 Cash Drawer (12V or24V)
- 1 x SD/TF Card Slot (Max: 64GB)
- 1x Recovery button
- 2 x USB 2.0 Type A , 1 x USB 3.0 Type A (OTG)
- 2x RJ45 (COM1, COM2) RS232 (RI/5V/12V)
- Side I/O Interface:
- 1 x USB 2.0 Type A
