FEC KIOSK is standalone, versatile kiosk with flexibility configuration and customization. Despite streamline design, it still can integrate with rich components such as credit card readers, printer, scanner, camera, bill acceptor,…etc. The front door even provides quick service access when simple maintenance is required.

01

KIOSK I

22 inch Multi-tuction customize KIOSK I Simple, Easy and fast for Self-service.

02

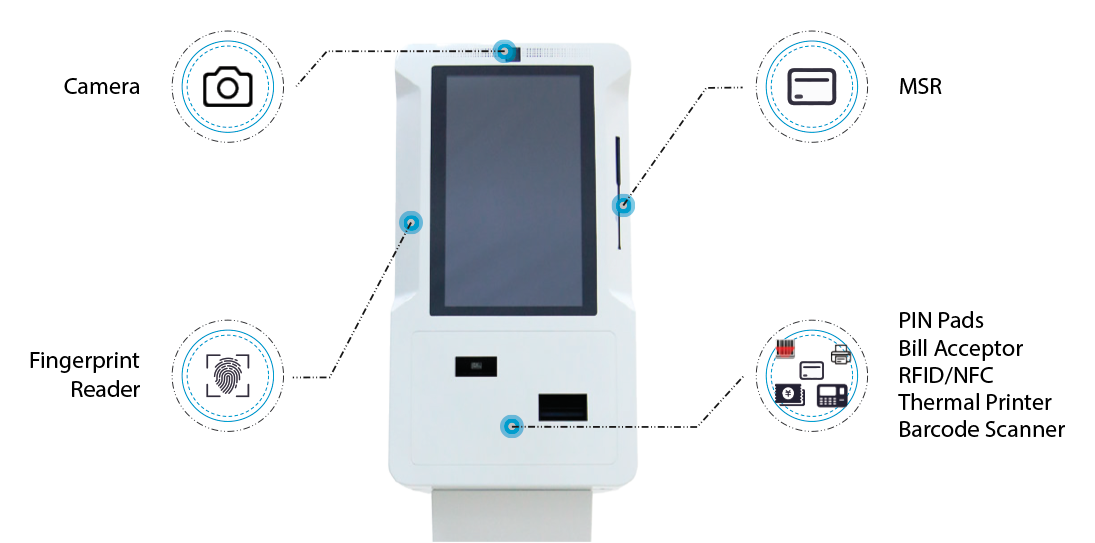

Customize Peripherals

FEC KIOSK with flexibiUty configuration and customization. Despite streamline design, it still can integrate with rich components such as credit card readers, printer, scanner, camera, bill acceptor, ...etc.

03

Customization

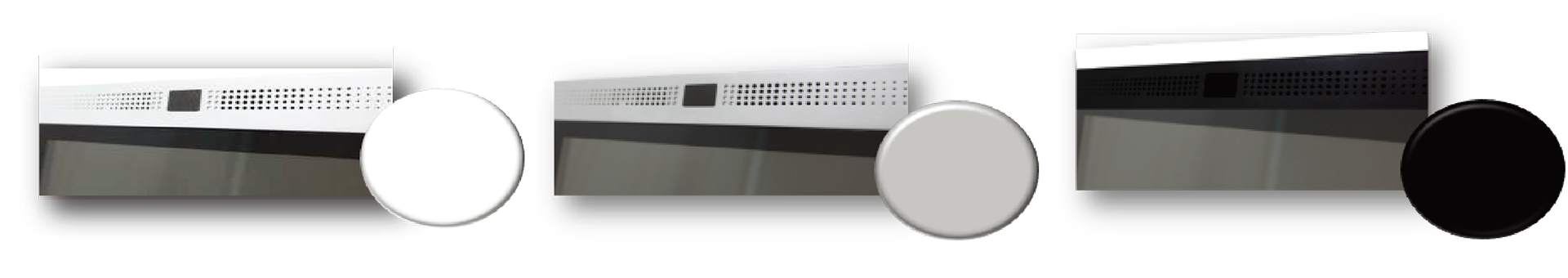

Color Option:

Customize Example:

Specifications

Display
Display
  • 21.5” TFT-LED / 9:16
  • 1080 x 1920
Touch
Touch
  • P-CAP (10-points touch)
MTBF
MTBF
  • 250nits / 50K hrs
CPU
CPU
  • Intel® Bay Trail/Haswell/Core I3/I5
  • Freescale iMX6 Quad-Core 1.0Ghz (Android)
Memory
Memory
  • Up To 16G DDR3 Memory
  • 2G for Android
Storage
Storage
  • 1 x 2.5” SATA HDD or SSD
Connection
Connection
  • Optional 802.11 b / g / n
Power
Power
  • 150W (12V / 12.5A) External Power Adaptor
Port
Port
  • Serial Port:RS232 / 24V Powered USB / USB
  • 1 x RJ11 Cash Drawer Port
  • 1 x RJ45 Gigabit LAN
  • 2 x Video Port (not available for Android)
  • 1 x 12V DC Input
  • 1 x 12V DC Output
Optional
Optional
  • Image Scanner / IR Sensor / ISO 1/2+JIS2, MSR (Dual Head) / ISO1/2/3 MSR (Single Head) / Camera 2M, V:870 /
  • YJ3300 Handy Scanner / Honeywell N3680 Scanner / RFID 13.56k / 3 W Sepaker with Amplifier
Dimensions
Dimensions
  • 500 mm x 1500/1700 mm x 400 mm
OS
OS
  • Windows 7, POSReady 7, Windows 10 Enterprise
  • 4.4.3 Jelly Bean
