KIOSK: FEC KIOSK is versatile with flexible configuration and customization. Despite streamline design, it still can integrate with rich components such as credit card readers, printer, scanner, camera, bill acceptor,…etc. Modular Design: KIOSK II is developed with Core + Peripherals +

01

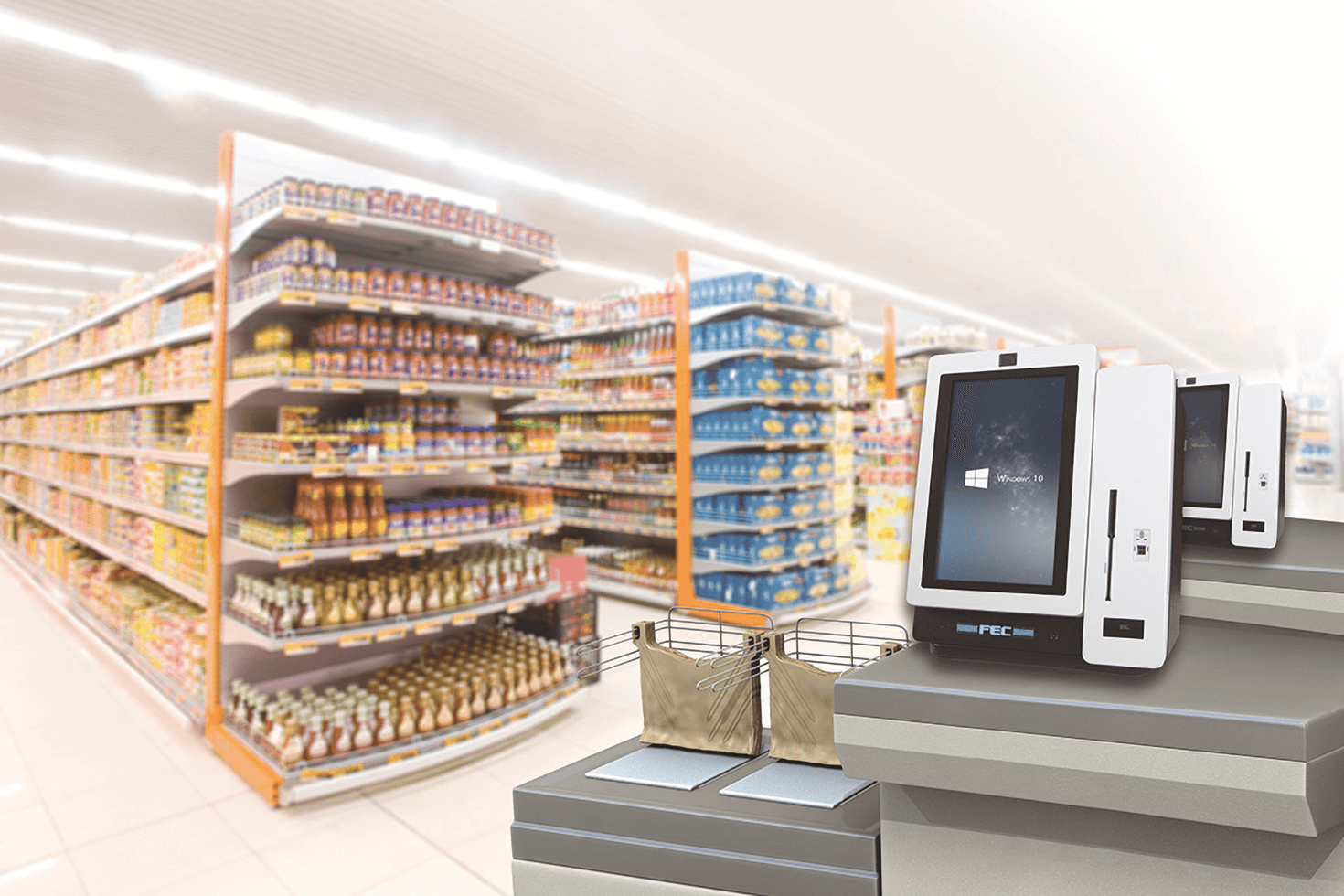

Desktop Type (KS-2642B)

02

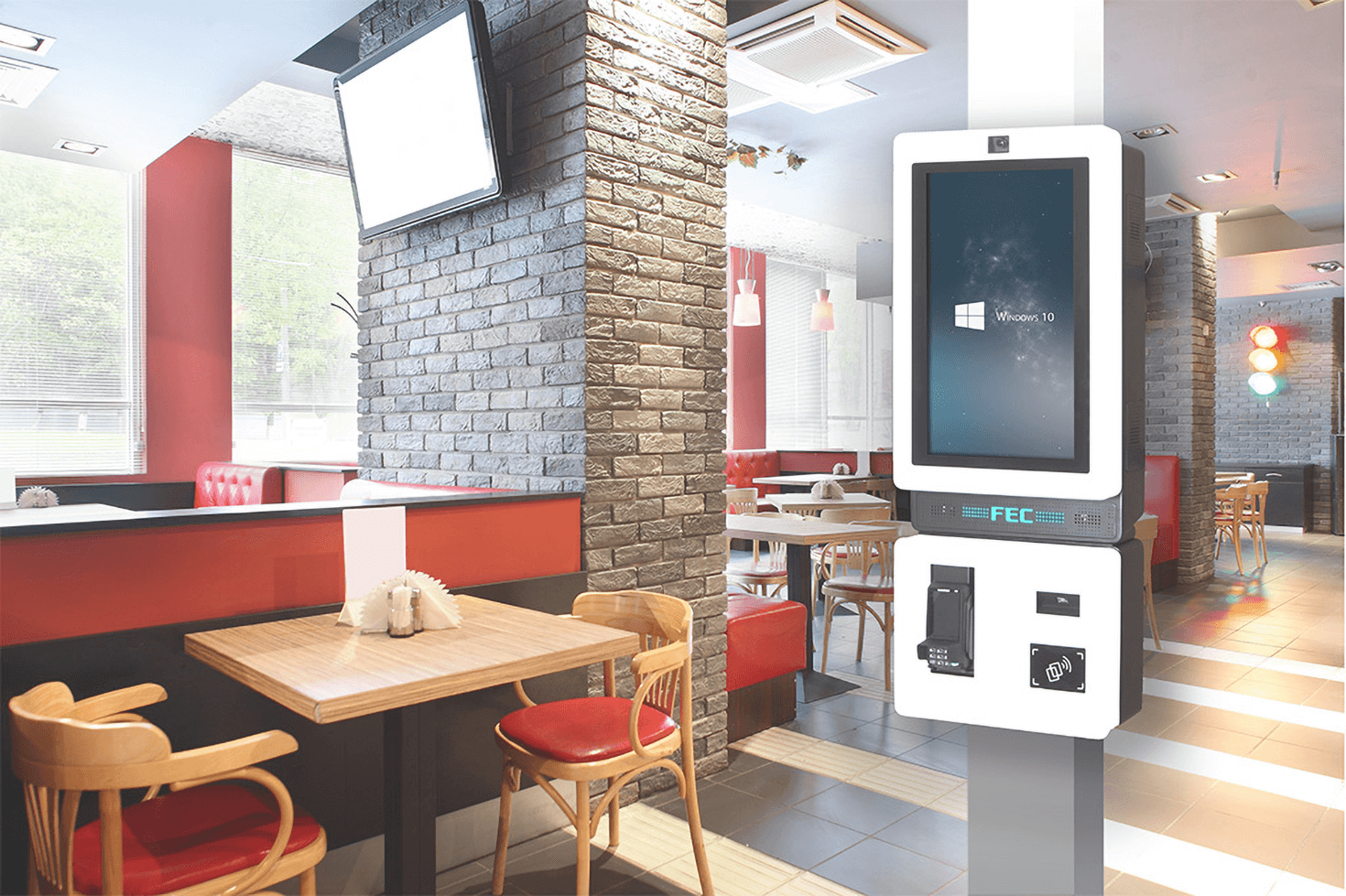

Pole Type (KS-2642C)

03

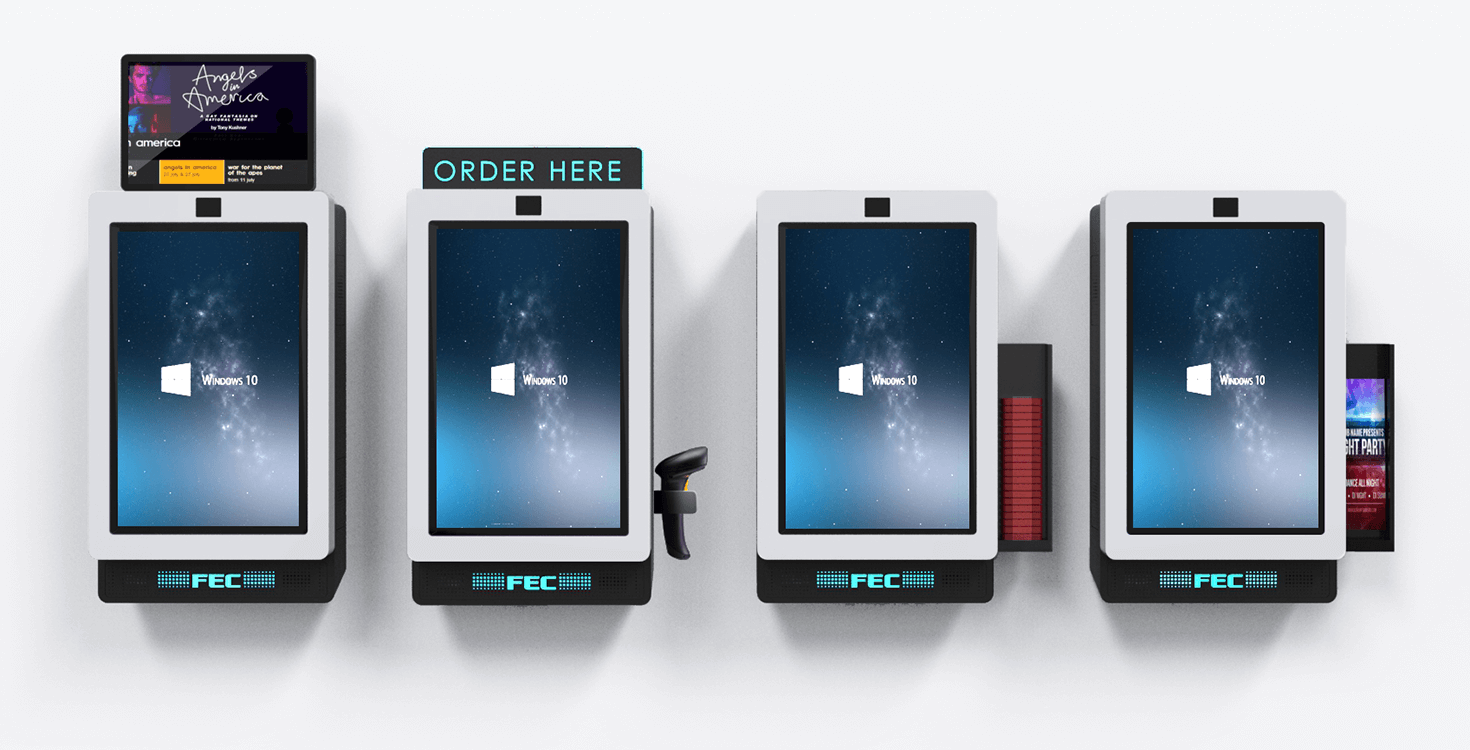

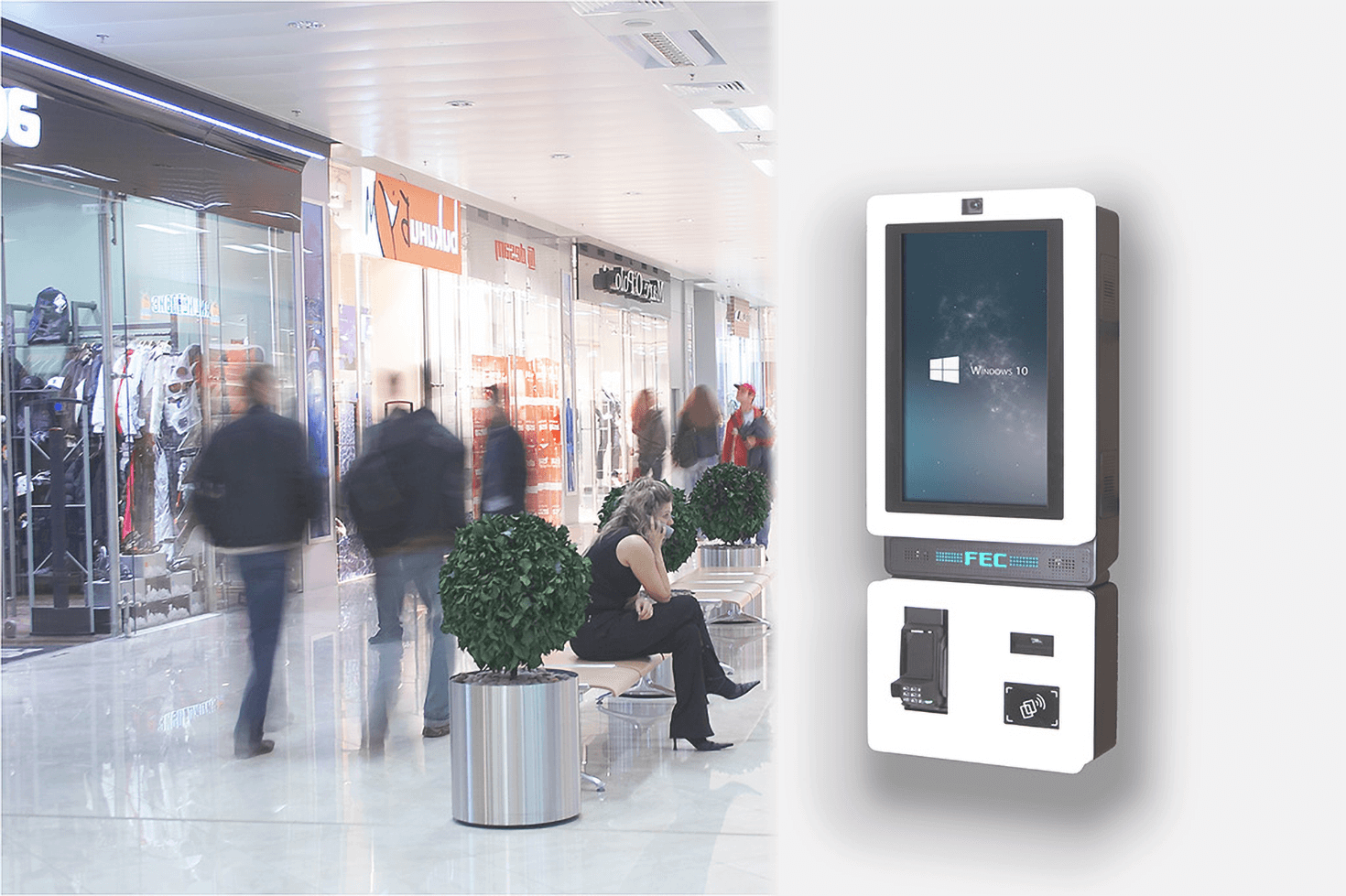

Wall-mount (KS-2642C)

04

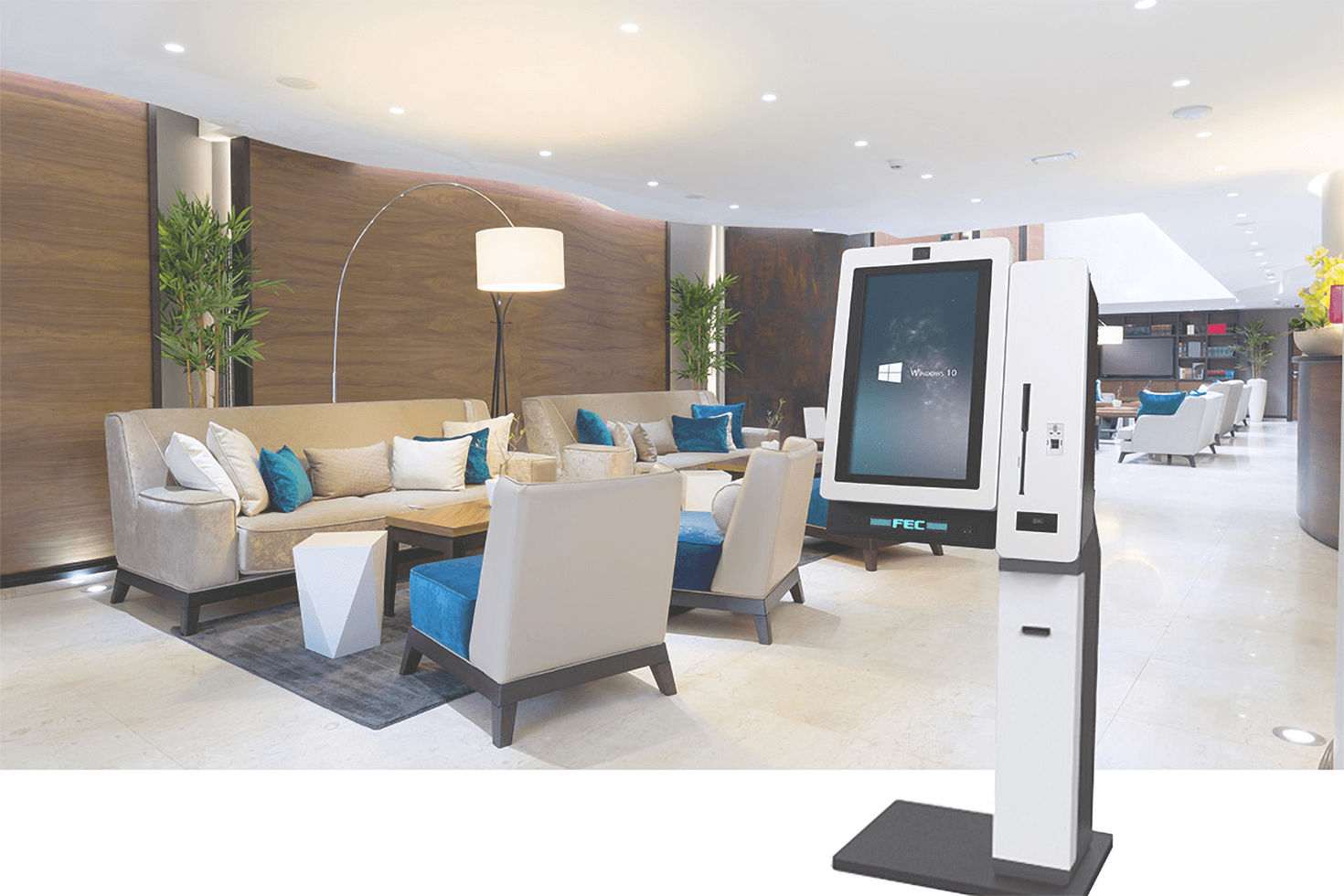

Standalone (KS-2642D)

05

CUSTOMIZED ADD-ONS

Specifications

Display
Display
  • 21.5” TFT-LED / 9:16, 1080 x 1920
Touch
Touch
  • P-CAP (10-points touch)
MTBF
MTBF
  • 250nits / 50K hrs
CPU
CPU
  • Intel® Bay Trail/Haswell/Core I3/I5
  • Freescale iMX6 Quad-Core 1.0Ghz (Android)
Memory
Memory
  • Up To 16G DDR3 Memory
  • 2G for Android
Storage
Storage
  • 1 x 2.5” SATA HDD or SSD
Connection
Connection
  • Optional 802.11 b / g / n
Power
Power
  • 150W Adapter
Port
Port
  • Serial Port:RS232 / 24V Powered USB / USB
  • 1 x RJ11 Cash Drawer Port
  • 1 x RJ45 Gigabit LAN
  • 2 x Video Port (not available for Android)
  • 1 x 12V DC Input
  • 1 x 12V DC Outout
Optional
Optional
  • Image Scanner / IR Sensor / ISO 1/2+JIS2, MSR (Dual Head) / ISO1/2/3 MSR (Single Head) / Camera 2M, V:870
  • YJ3300 Handy Scanner / Honeywell N3680 Scanner / RFID 13.56k / 3 W Sepaker with Amplifier
OS
OS
  • Support POSReady 7 / Windows 10
  • Android 4.4
